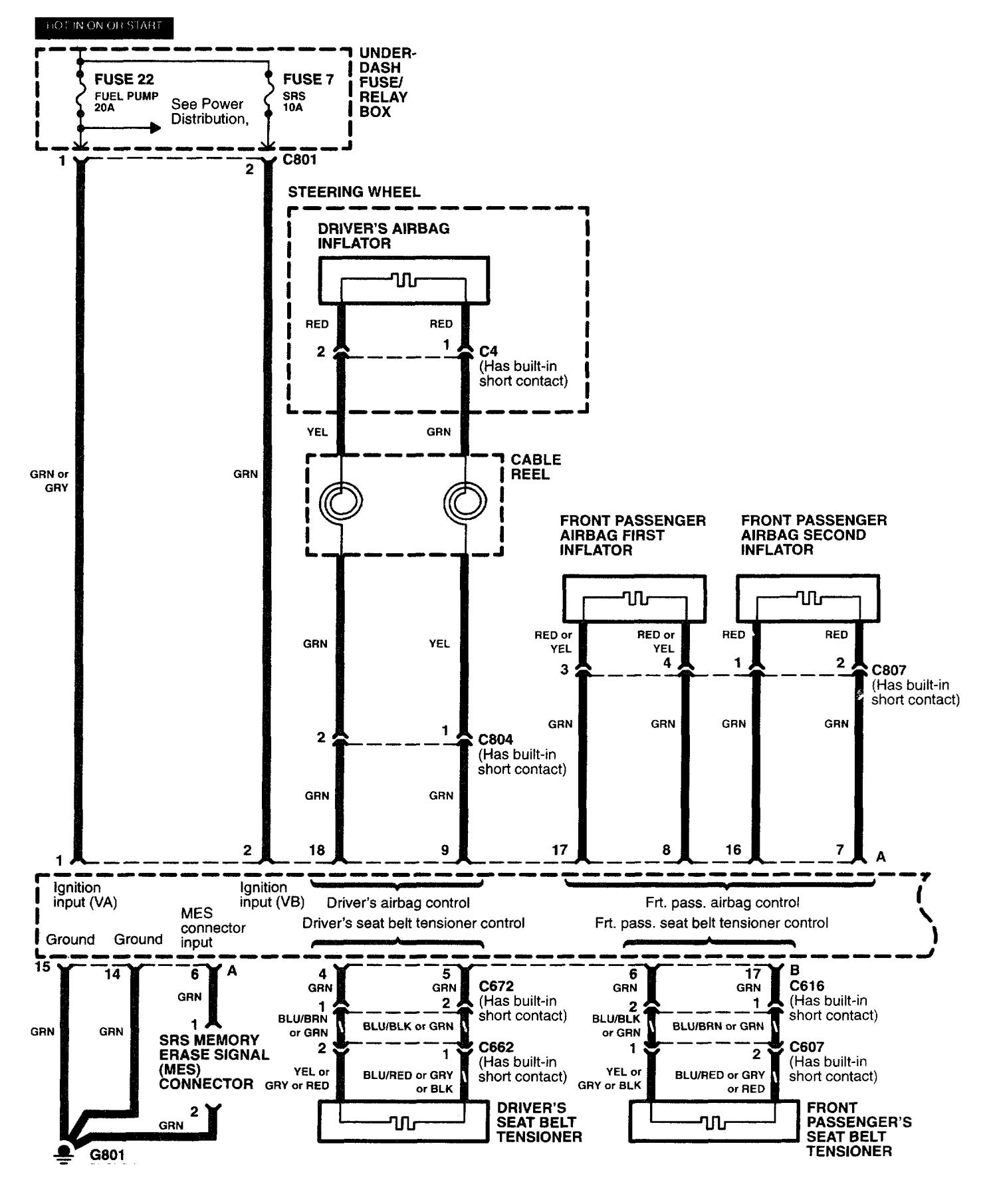

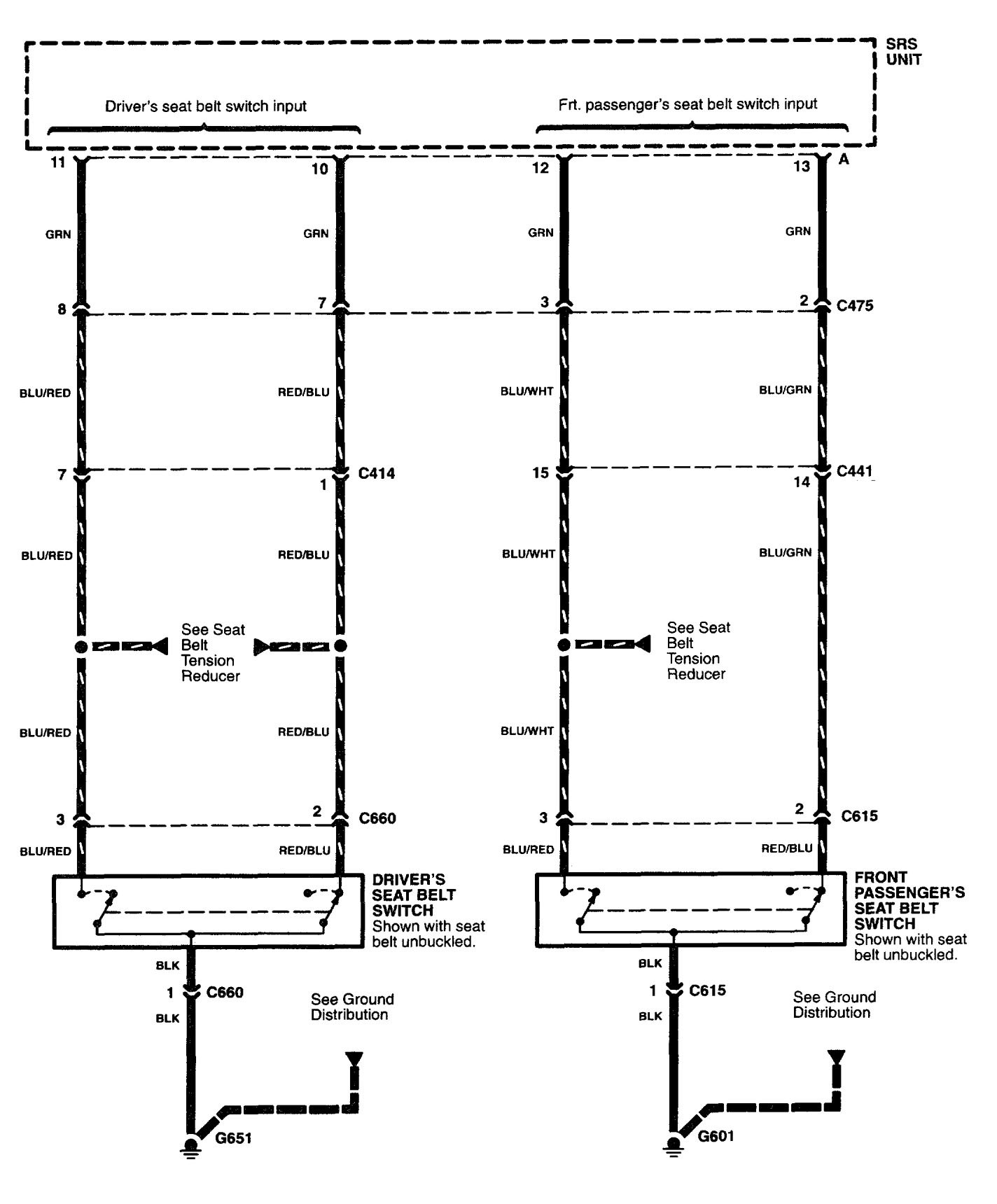

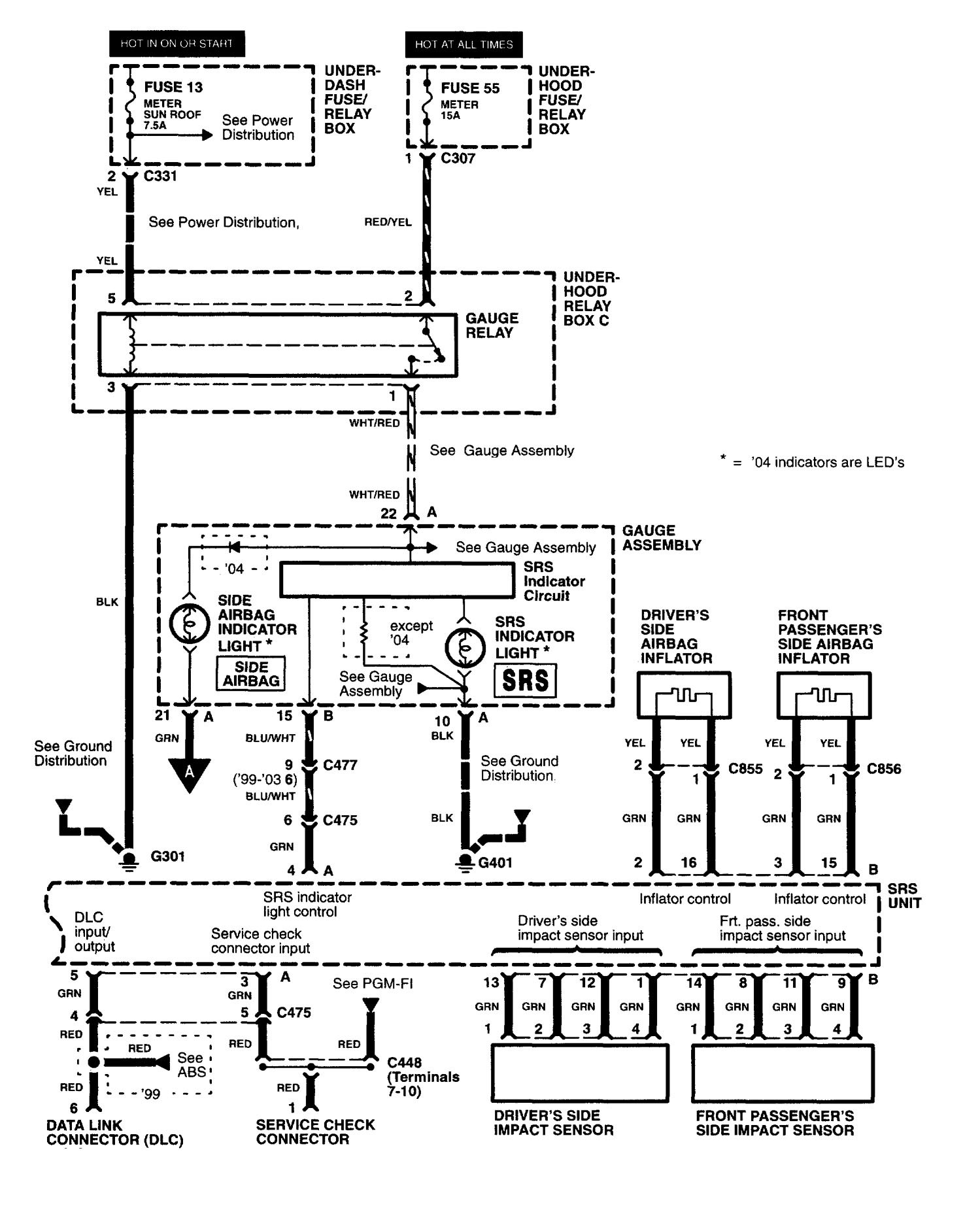

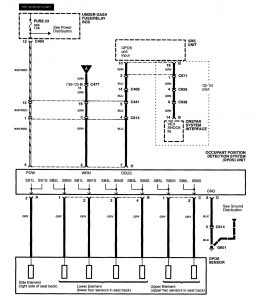

Acura RL (2003 – 2004) – wiring diagrams – air bags

Volvo 244 (1988) – wiring diagrams – HVAC controls Year of productions:  1988 HVAC controls WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Acura SLX (1998 – 1999) – wiring diagrams – fuel controls Year of productions:  1998, 1999 Fuel controls WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and […]

Acura Legend (1990) – wiring diagram – console lamp Year of productions:  1990 Console lamp Version 1 Version 2 WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, […]
