Acura RL (2000 – 2002) – wiring diagrams – traction controls

Year of productions:  2000, 2001, 2002

Traction controls

Version 1

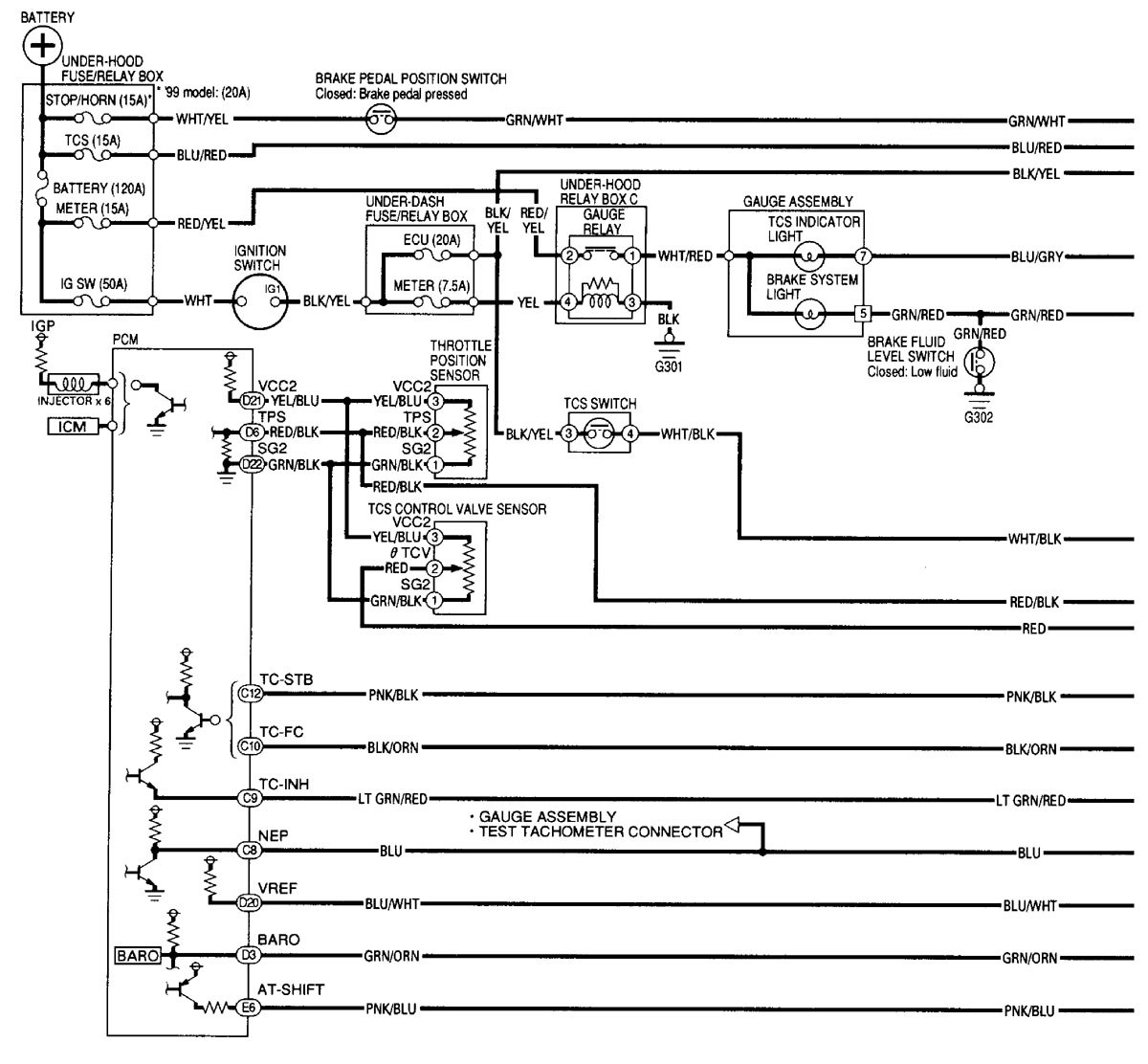

Acura RL - wiring diagram - traction controls (part 1)
Acura RL – wiring diagram – traction controls (part 1)

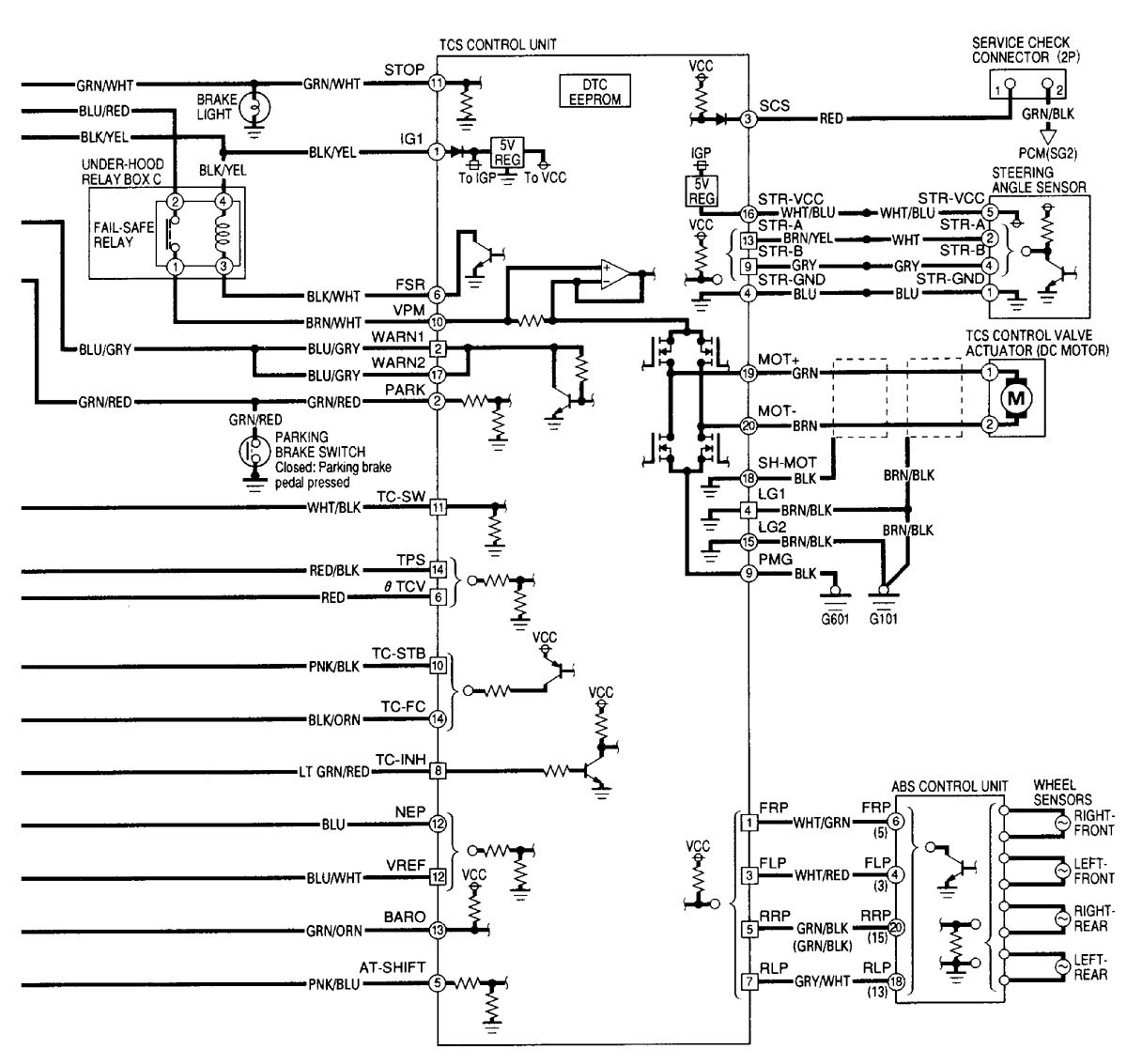

Acura RL - wiring diagram - traction controls (part 2)
Acura RL – wiring diagram – traction controls (part 2)

Version 2

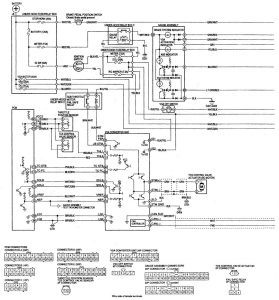

Acura RL - wiring diagram - traction controls (part 1)
Acura RL – wiring diagram – traction controls (part 1)

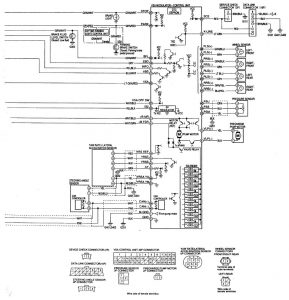

Acura RL - wiring diagram - traction controls (part 2)
Acura RL – wiring diagram – traction controls (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
