Acura RL (1999) – wiring diagrams – headlamp switch

10 September 2017 admin Acura, RL 0

Acura RL (1999) – wiring diagrams – headlamp switch

Year of productions:  1999

Headlamp switch

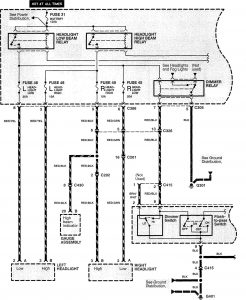

Acura RL - wiring diagram - headlamp switch (part 1)
Acura RL – wiring diagram – headlamp switch (part 1)

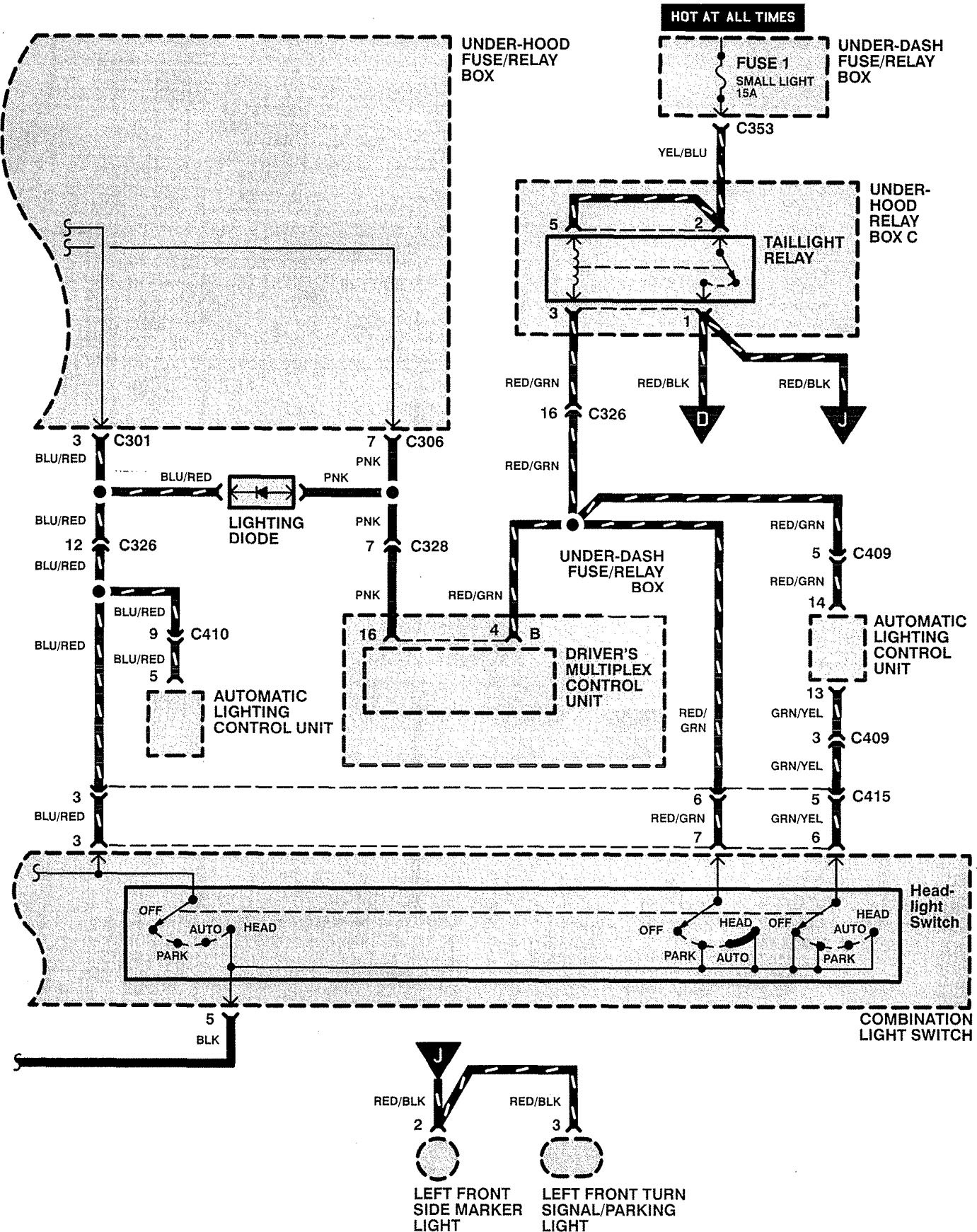

Acura RL - wiring diagram - headlamp switch (part 2)
Acura RL – wiring diagram – headlamp switch (part 2)

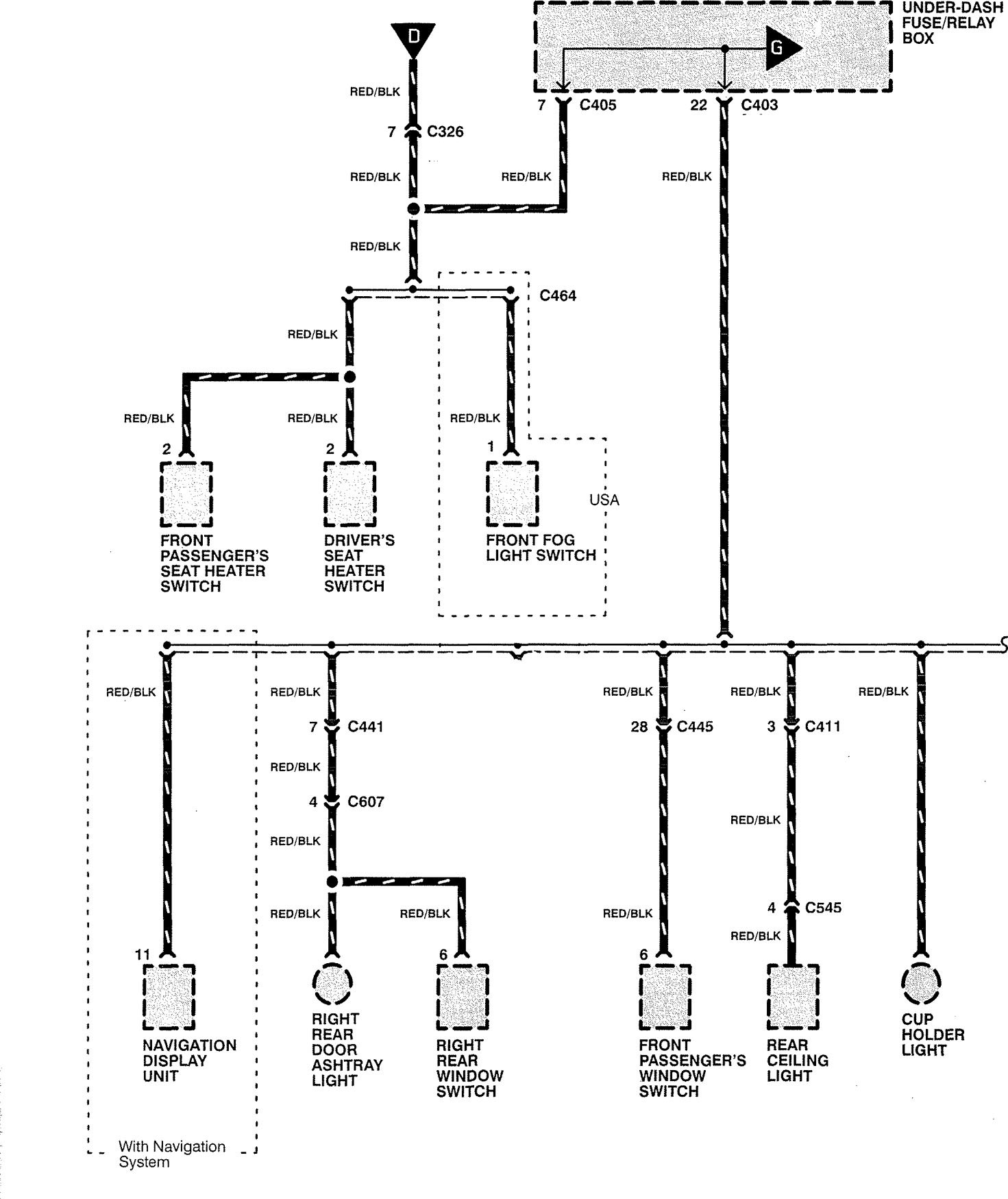

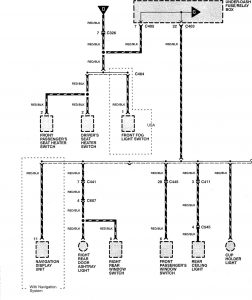

Acura RL - wiring diagram - headlamp switch (part 3)
Acura RL – wiring diagram – headlamp switch (part 3)

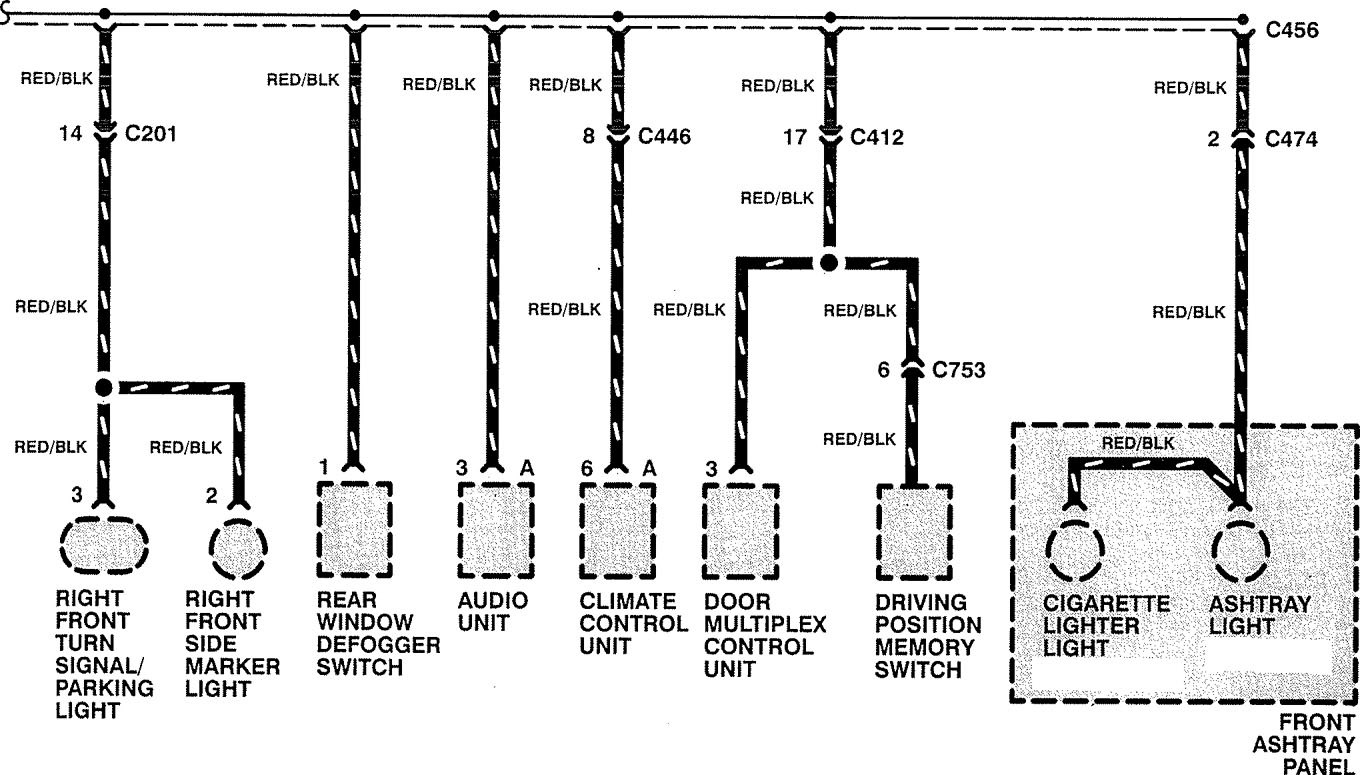

Acura RL - wiring diagram - headlamp switch (part 4)
Acura RL – wiring diagram – headlamp switch (part 4)

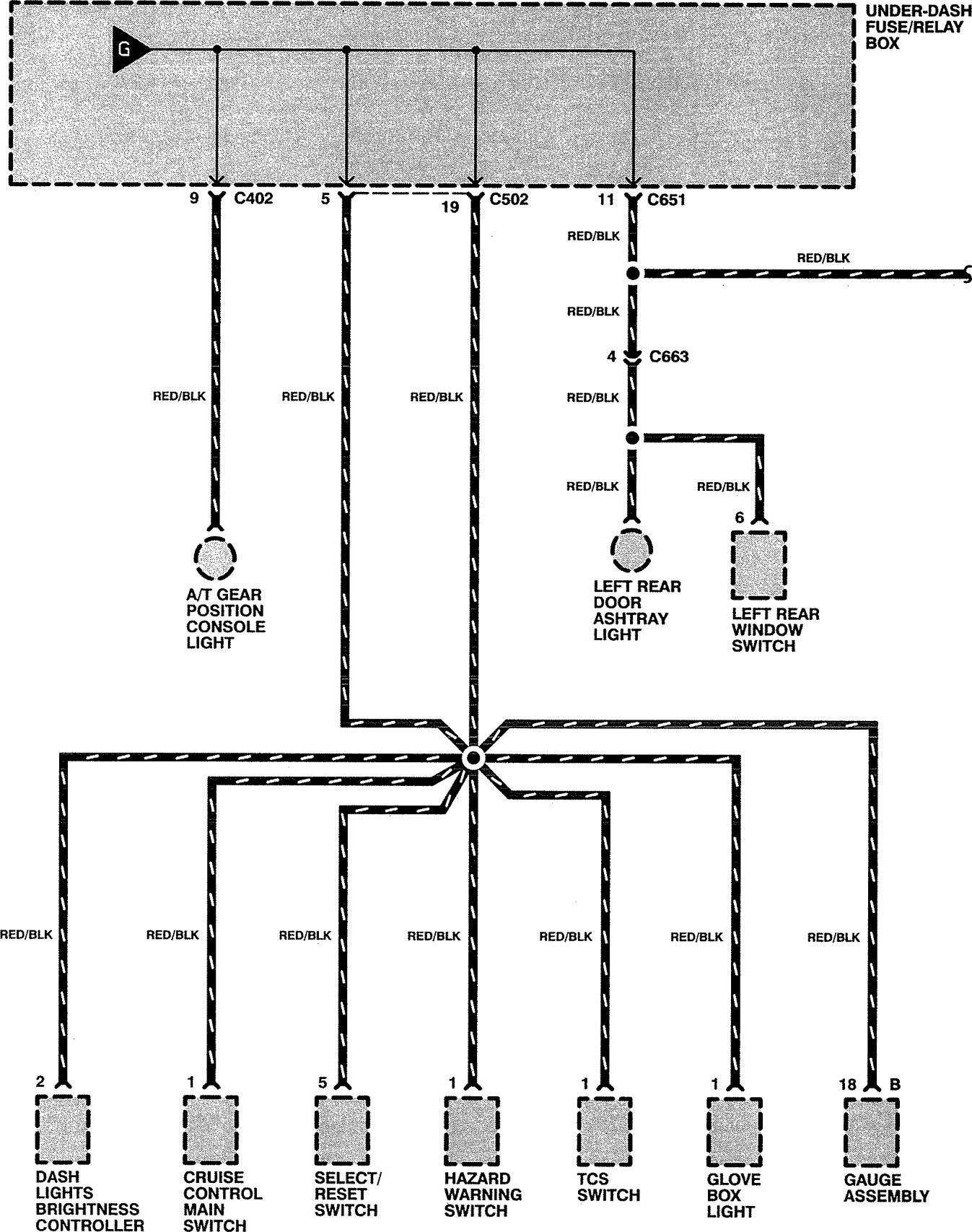

Acura RL - wiring diagram - headlamp switch (part 5)
Acura RL – wiring diagram – headlamp switch (part 5)

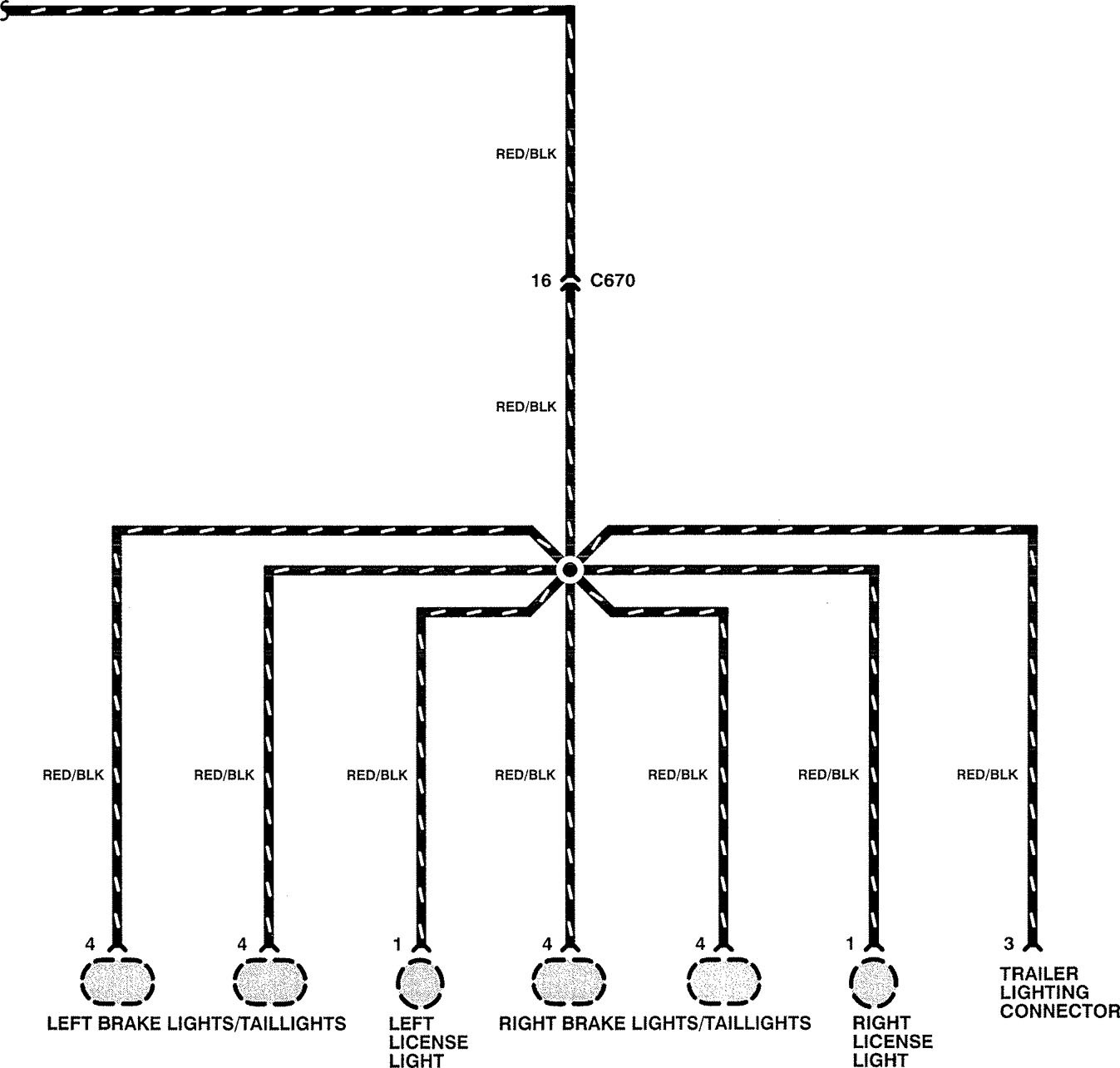

Acura RL - wiring diagram - headlamp switch (part 6)
Acura RL – wiring diagram – headlamp switch (part 6)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
