Acura RL (1996 – 1999) – wiring diagrams – speed control

Year of productions:  1996, 1997, 1998, 1999

Speed control

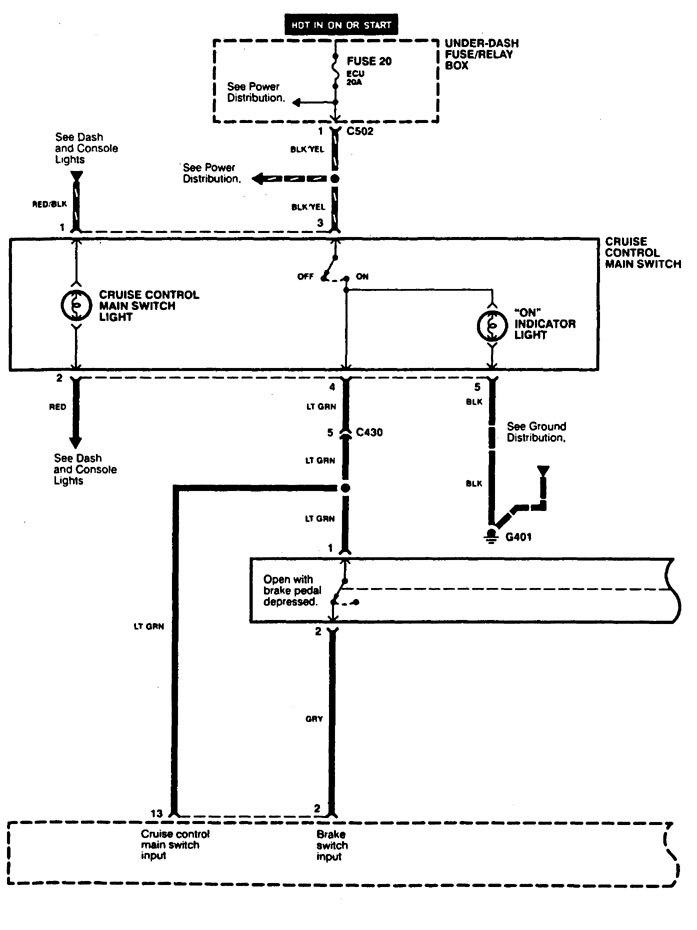

Acura RL - wiring diagram - speed control (part 1)
Acura RL – wiring diagram – speed control (part 1)

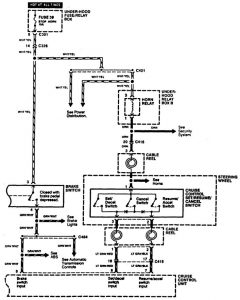

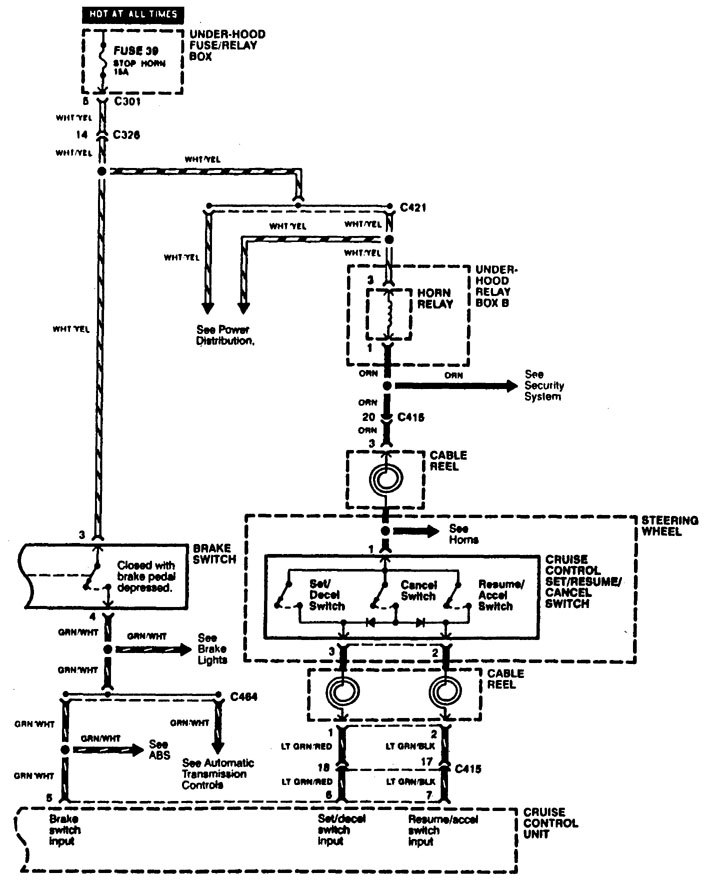

Acura RL - wiring diagram - speed control (part 2)
Acura RL – wiring diagram – speed control (part 2)

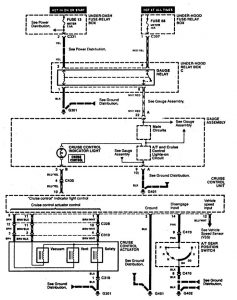

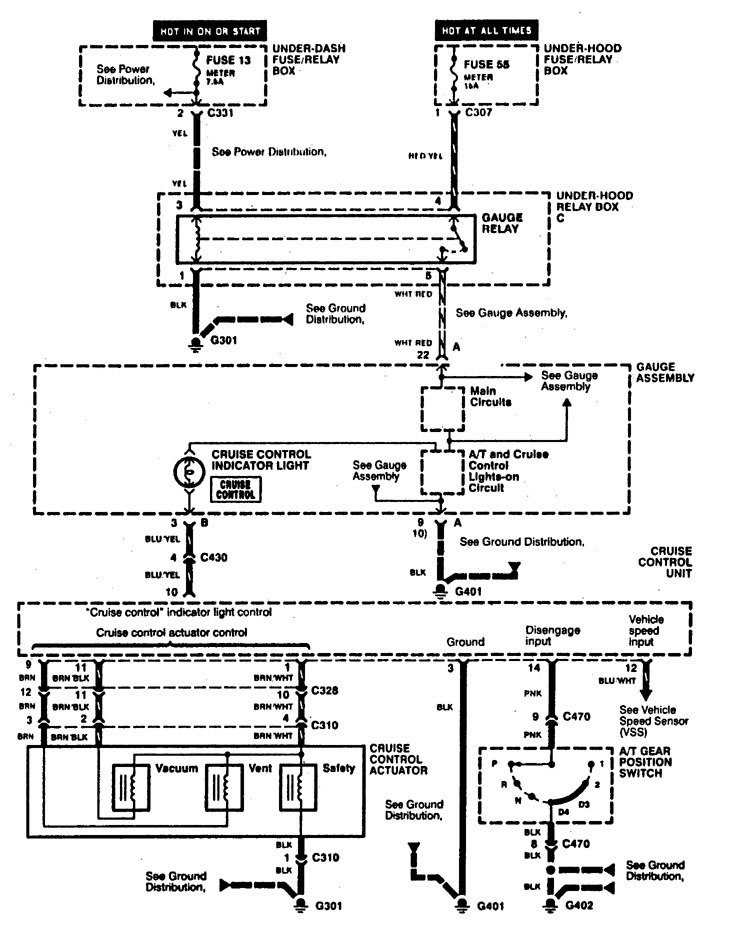

Acura RL - wiring diagram - speed control (part 3)
Acura RL – wiring diagram – speed control (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
