Acura RL (1996) – wiring diagrams – instrumentation

Acura RL (1996) – wiring diagrams – instrumentation

Year of productions:  1996

Instrumentation

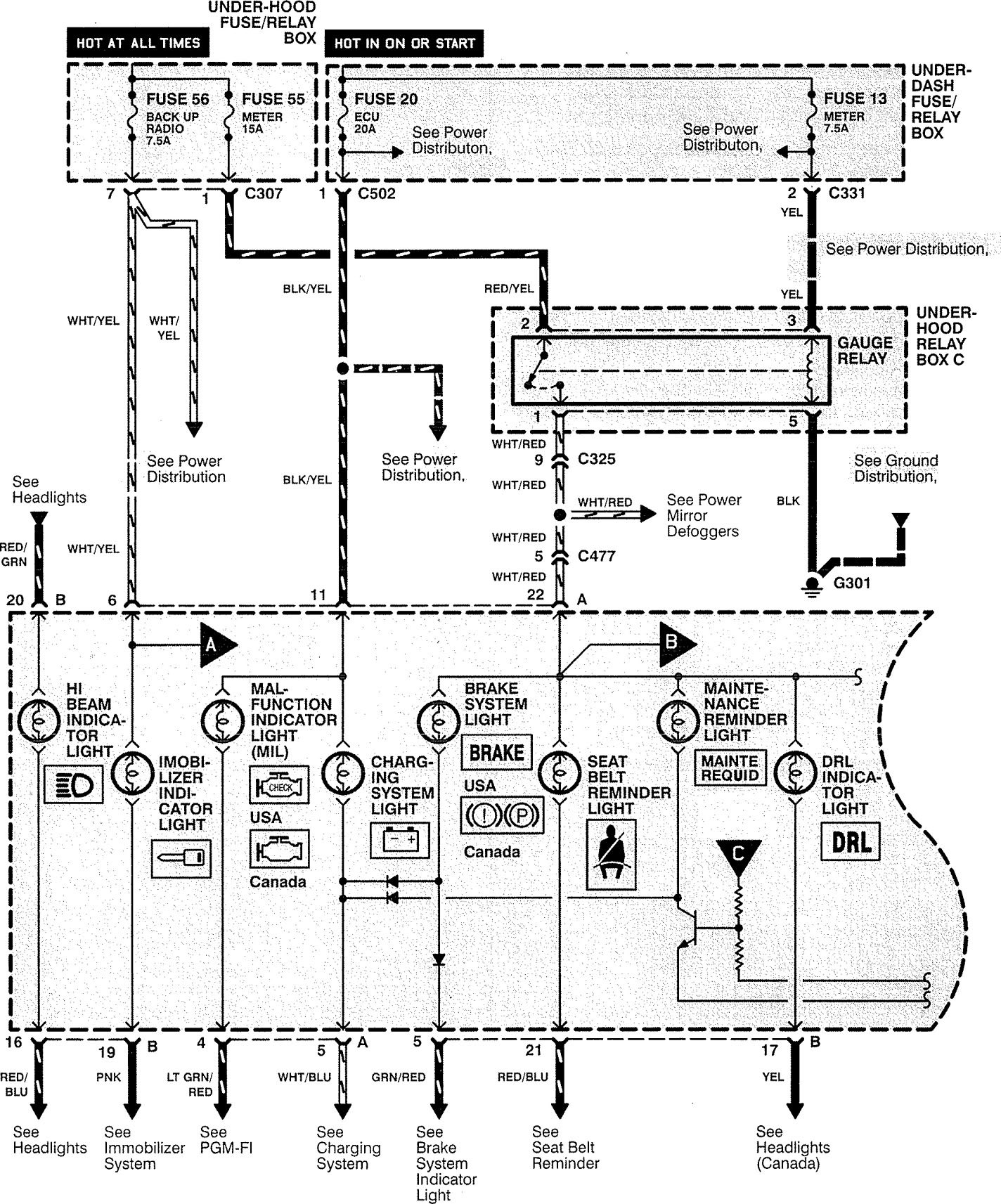

Acura RL - wiring diagram - instrumentation (part 1)
Acura RL – wiring diagram – instrumentation (part 1)

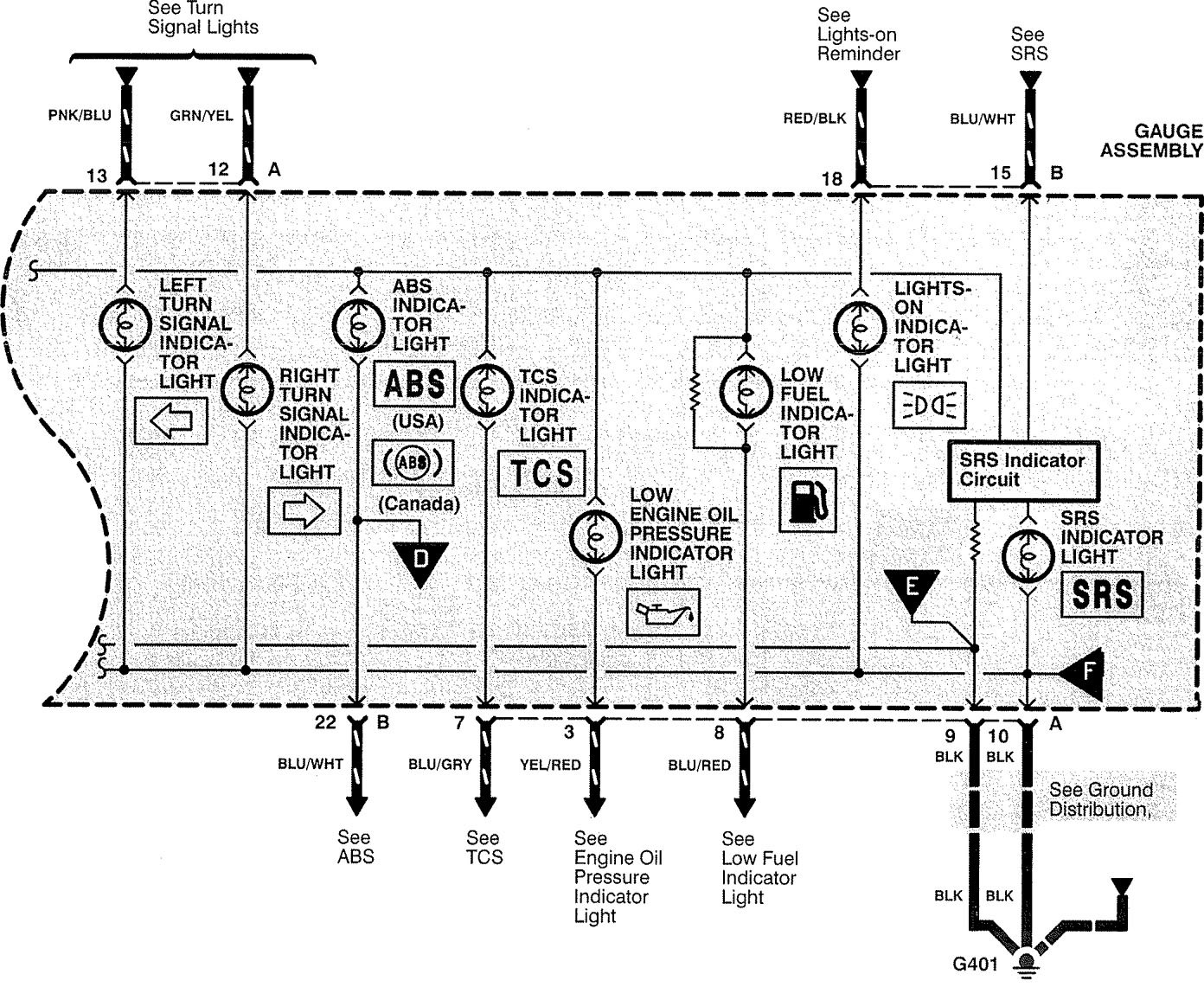

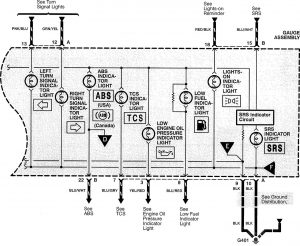

Acura RL - wiring diagram - instrumentation (part 2)
Acura RL – wiring diagram – instrumentation (part 2)

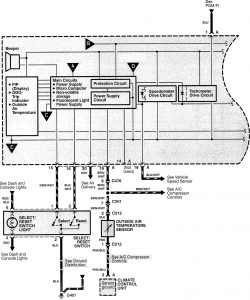

Acura RL - wiring diagram - instrumentation (part 3)
Acura RL – wiring diagram – instrumentation (part 3)

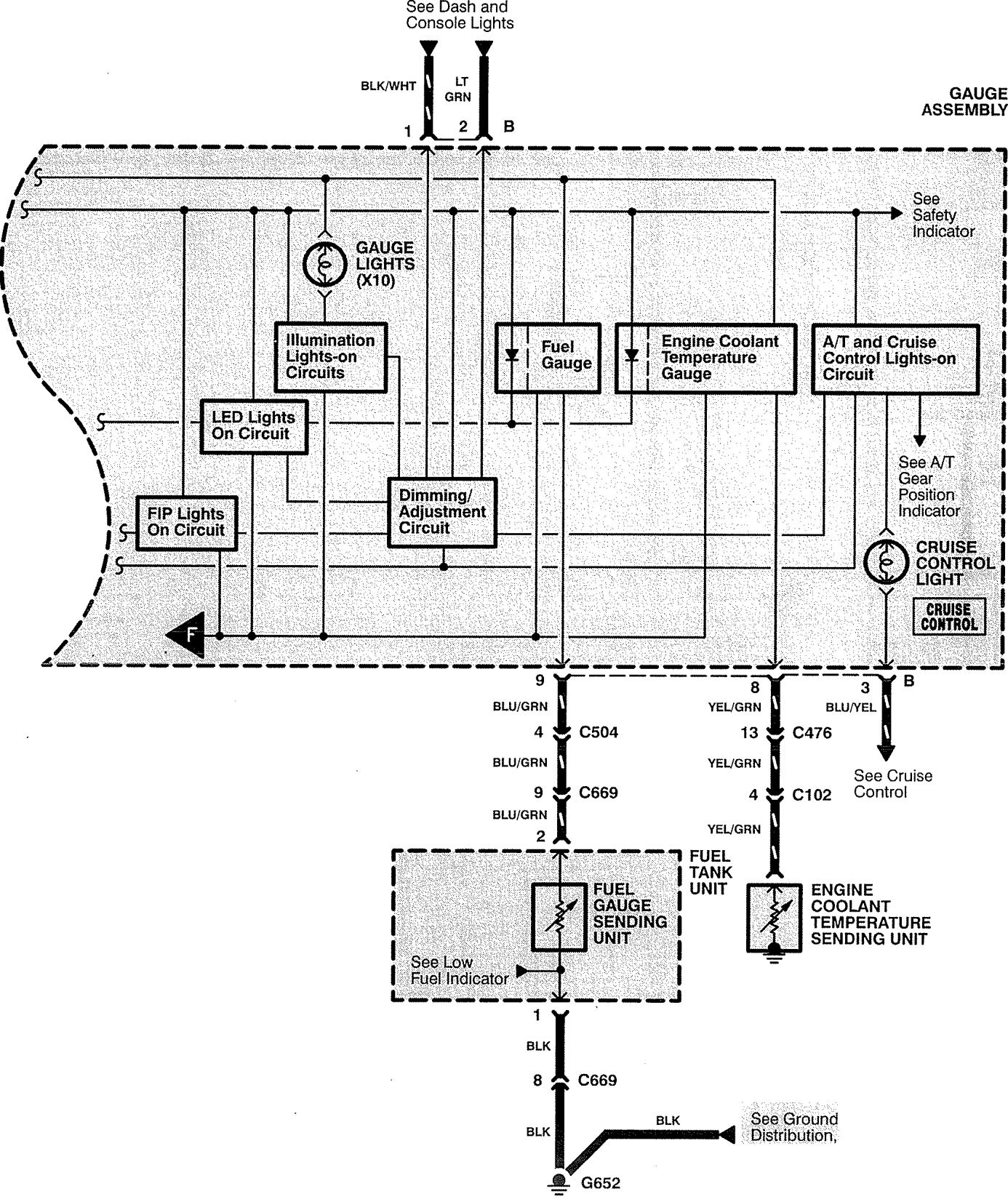

Acura RL - wiring diagram - instrumentation (part 4)
Acura RL – wiring diagram – instrumentation (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
