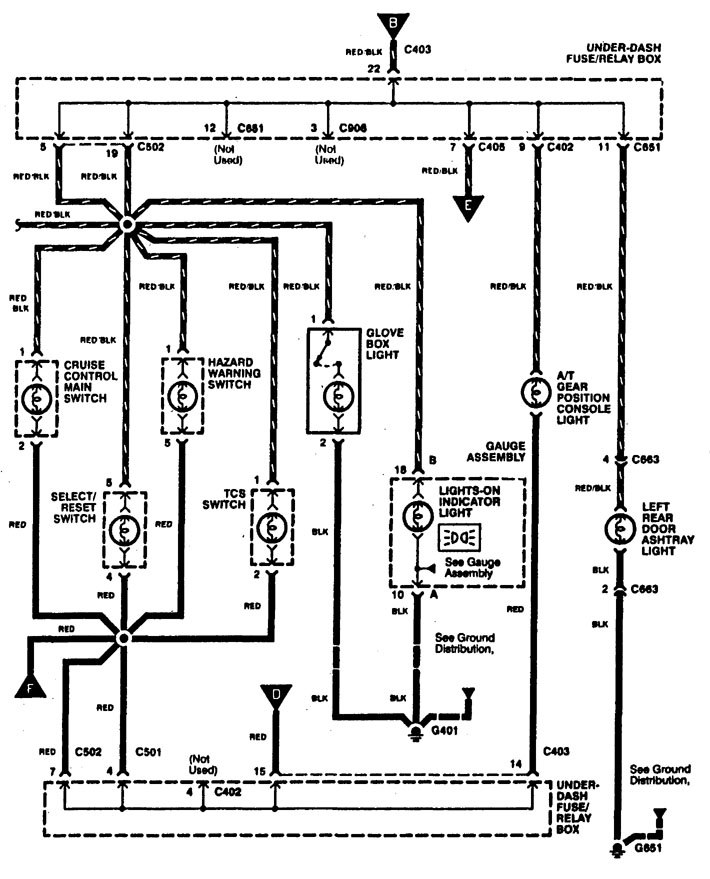

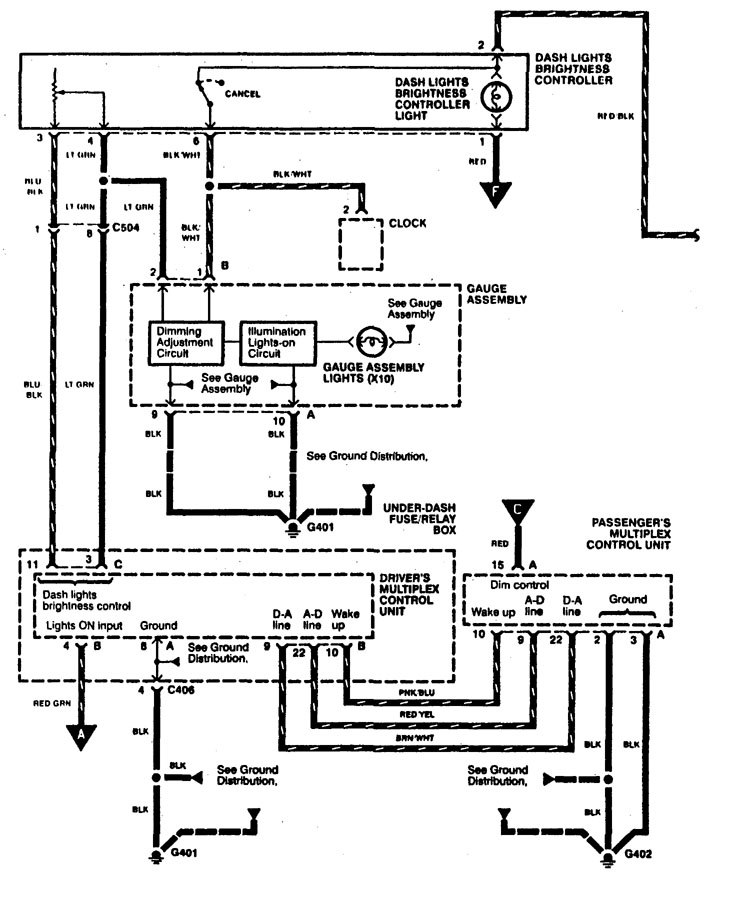

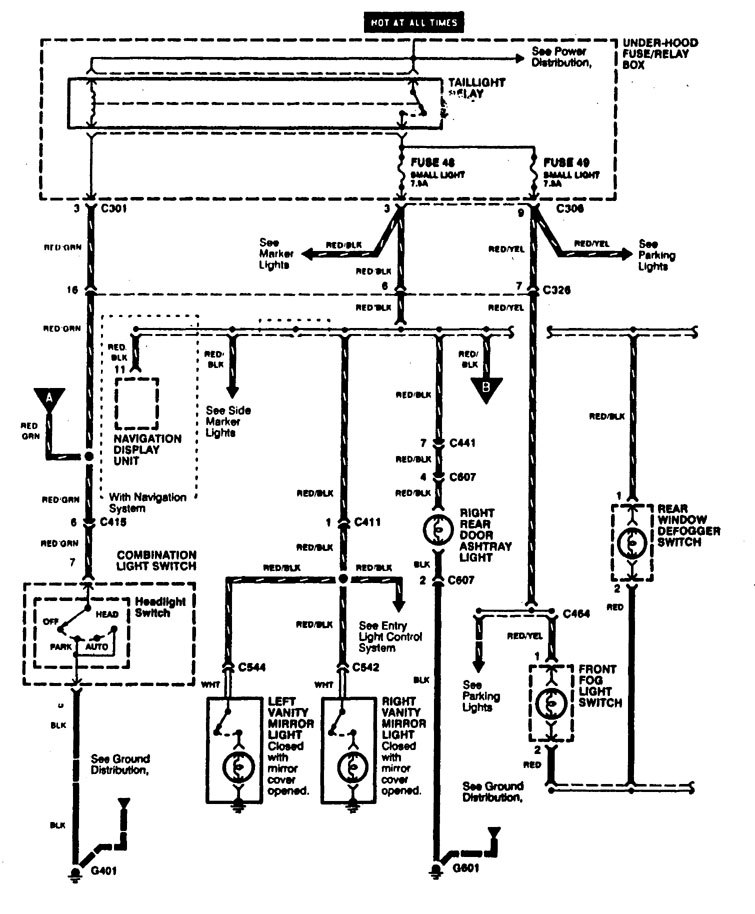

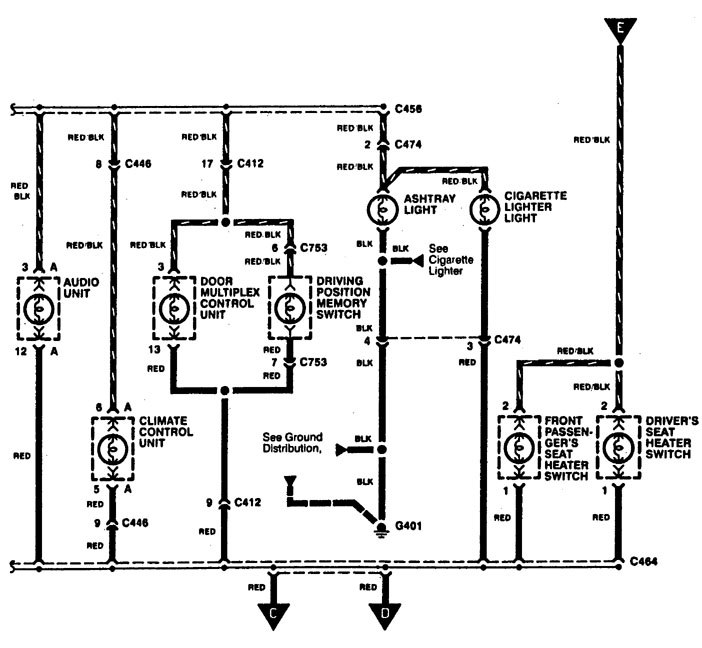

Acura RL (1996 – 1998) – wiring diagrams – console lamp

Acura TL (2002) – wiring diagrams – instrumentation Year of productions:  2002 Instrumentation WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Volvo V70 (2000 – 2002) – wiring diagrams – diagnostic module Year of productions:  2000, 2001, 2002 Diagnostic module WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, […]

Volvo 850 (1994) – wiring diagrams – seat belt warning Year of productions:  1994 Seat belt warning WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
