Acura NSX (2005) – wiring diagrams – warning lamps

Acura NSX (2005) – wiring diagrams – warning lamps

Year of productions:  2005

Warning lamps

Version 1

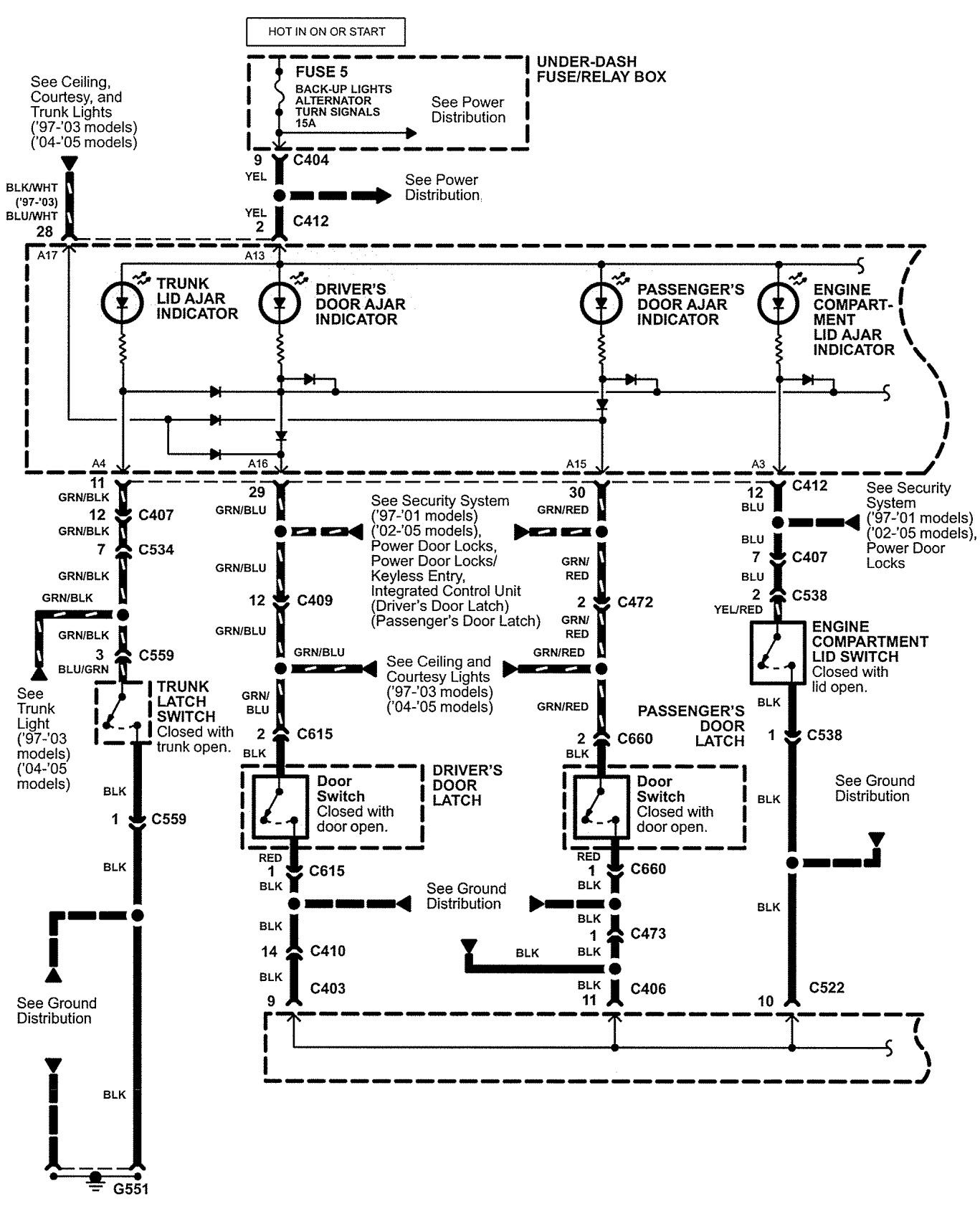

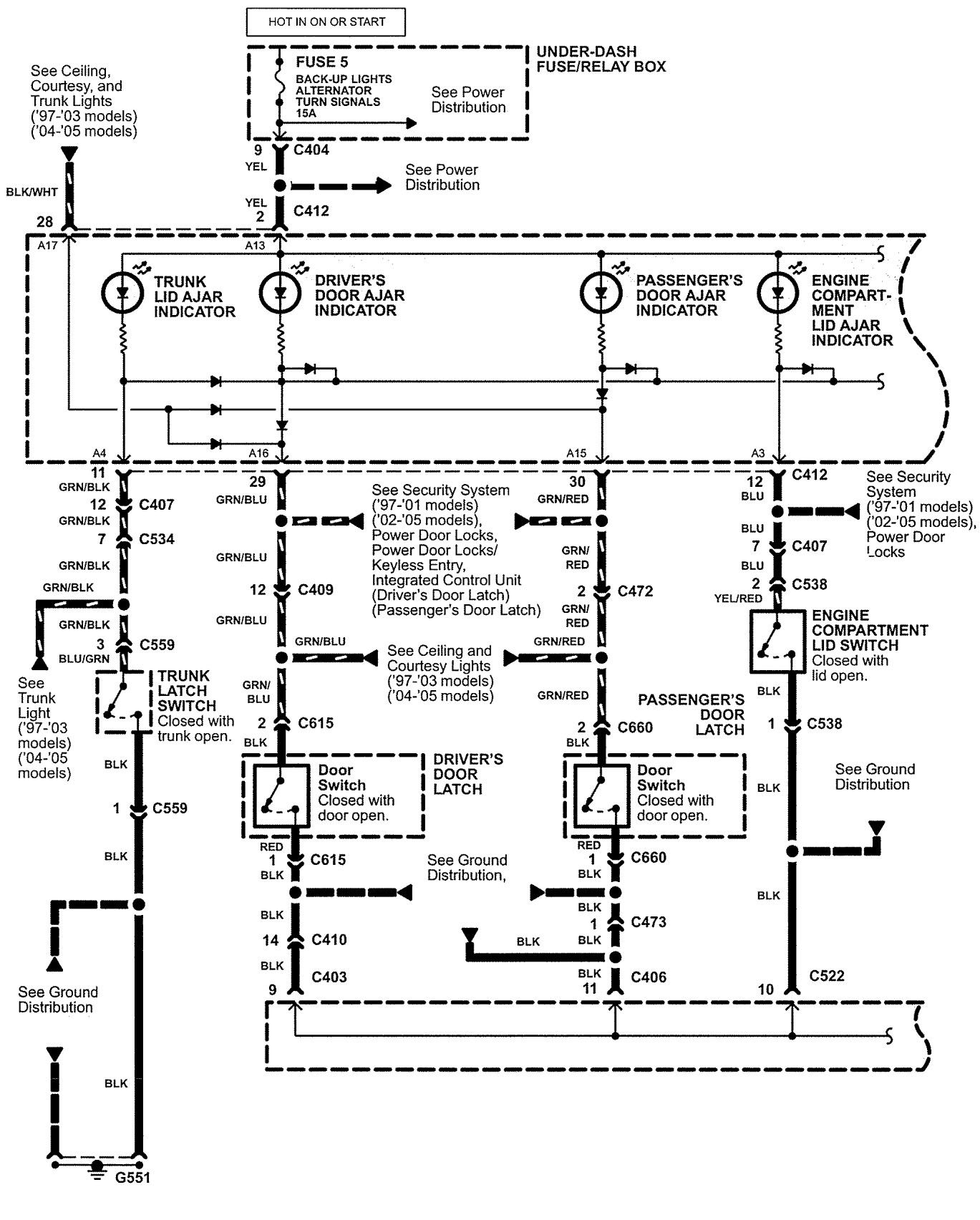

Acura NSX - wiring diagram - warning lamps (part 1)
Acura NSX – wiring diagram – warning lamps (part 1)

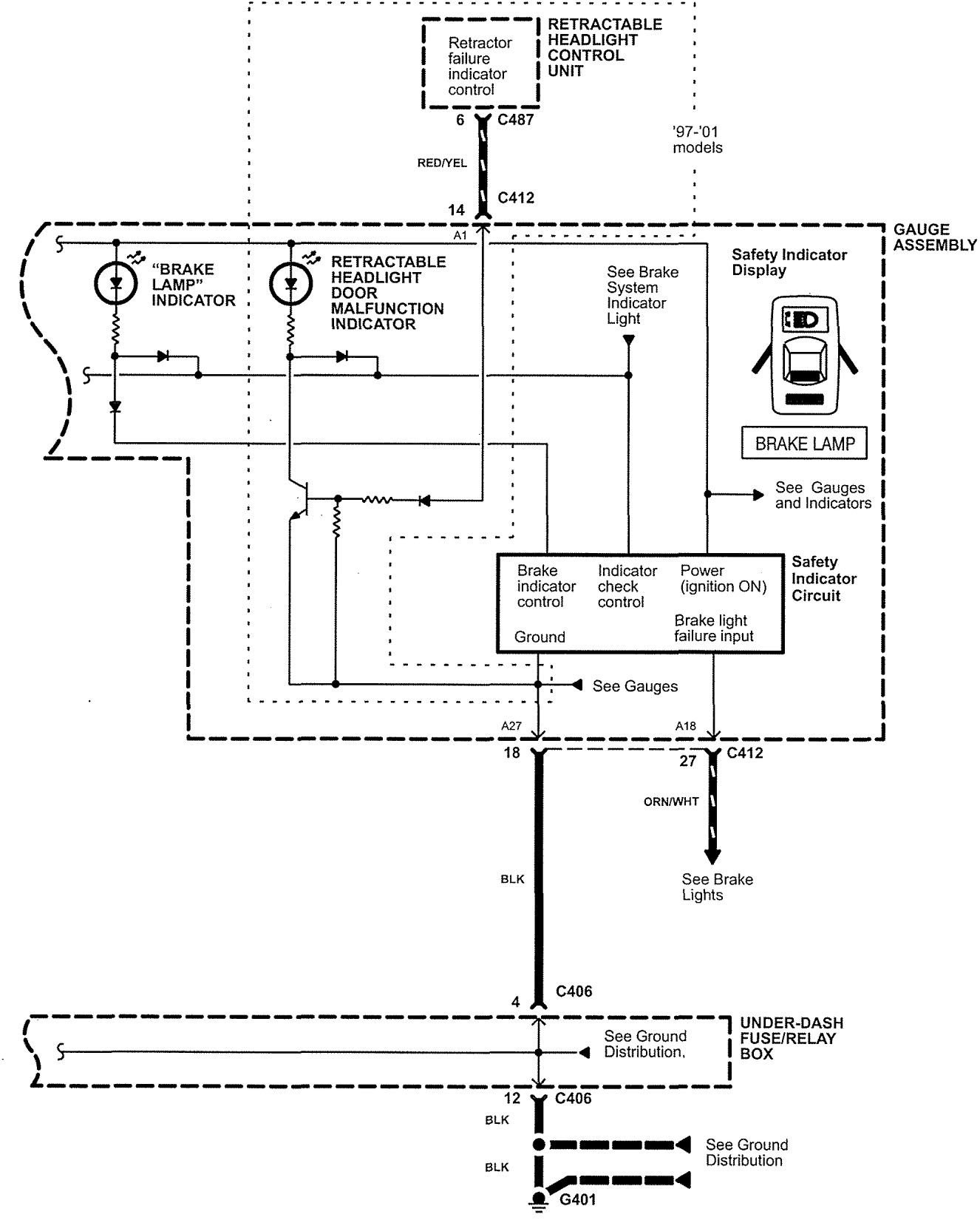

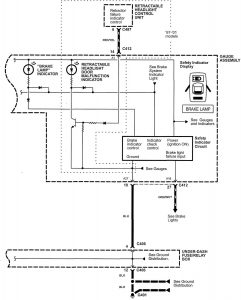

Acura NSX - wiring diagram - warning lamps (part 2)
Acura NSX – wiring diagram – warning lamps (part 2)

Version 2

Acura NSX - wiring diagram - warning lamps (part 1)
Acura NSX – wiring diagram – warning lamps (part 1)

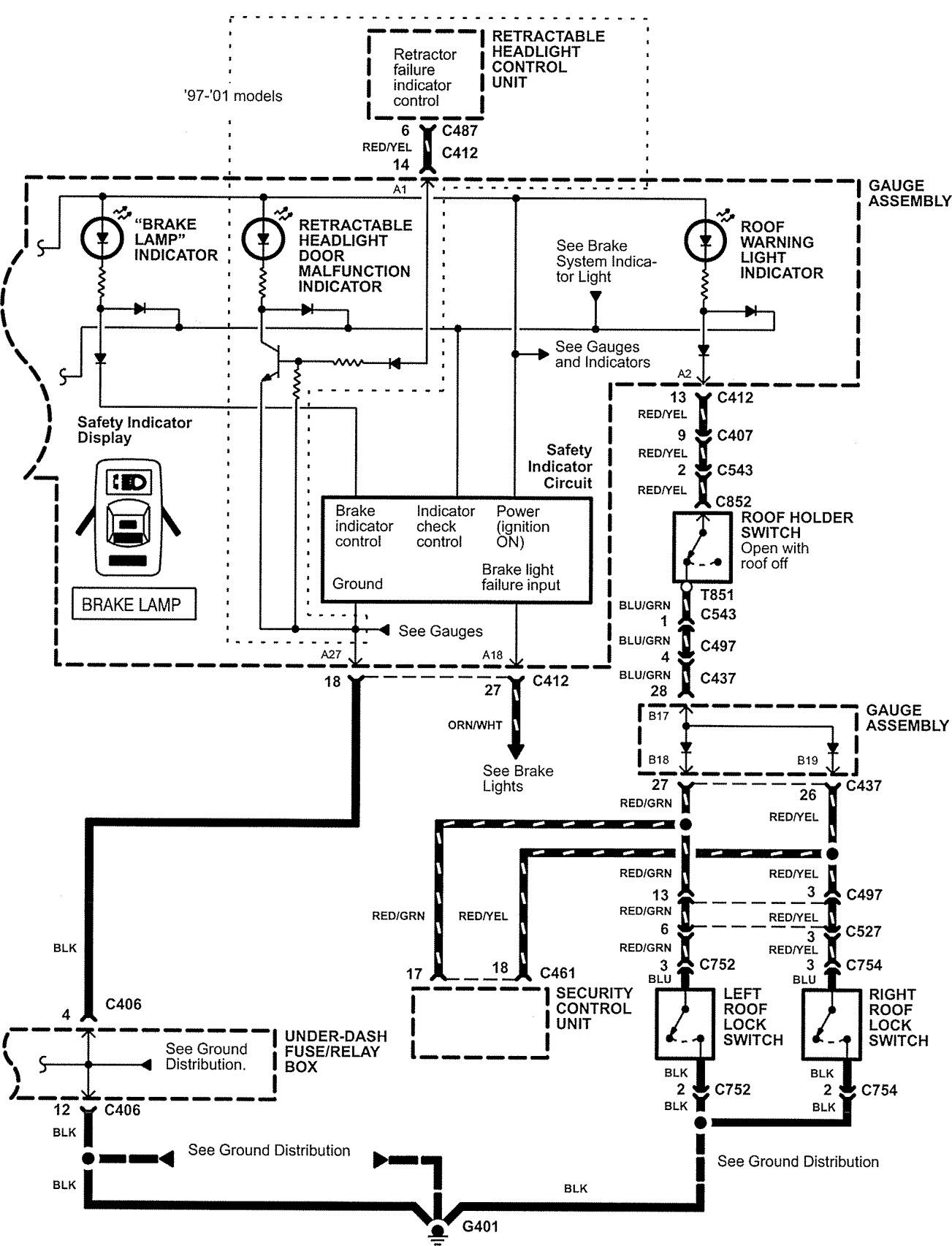

Acura NSX - wiring diagram - warning lamps (part 2)
Acura NSX – wiring diagram – warning lamps (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
