Acura NSX (2005) – wiring diagrams – traction controls

Acura NSX (2005) – wiring diagrams – traction controls

Year of productions:  2005

Traction controls

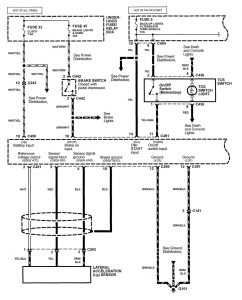

Acura NSX - wiring diagram - traction controls (part 1)
Acura NSX – wiring diagram – traction controls (part 1)

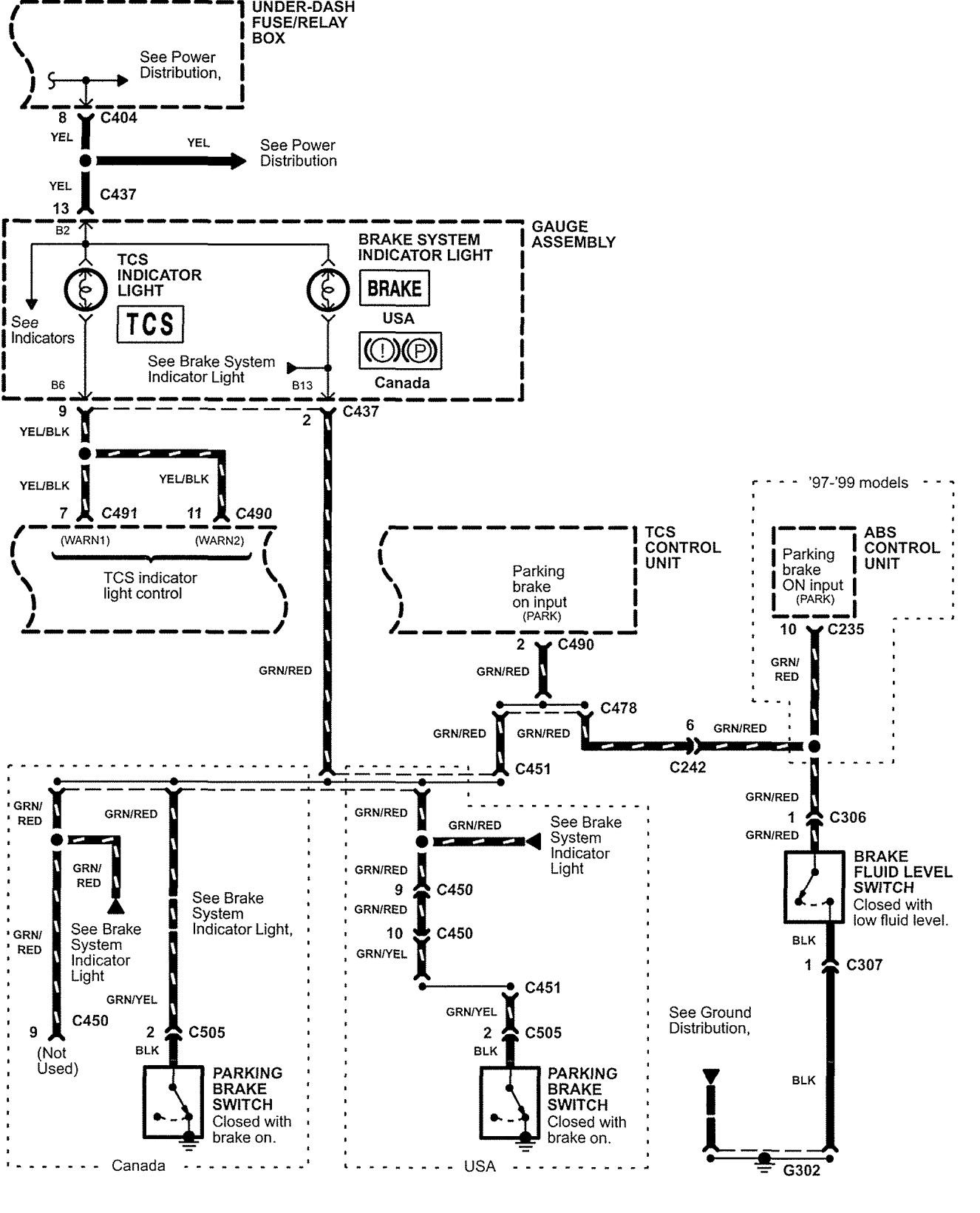

Acura NSX - wiring diagram - traction controls (part 2)
Acura NSX – wiring diagram – traction controls (part 2)

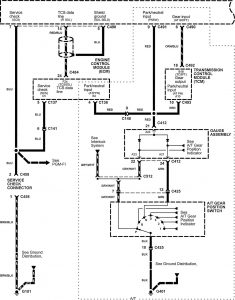

Acura NSX - wiring diagram - traction controls (part 3)
Acura NSX – wiring diagram – traction controls (part 3)

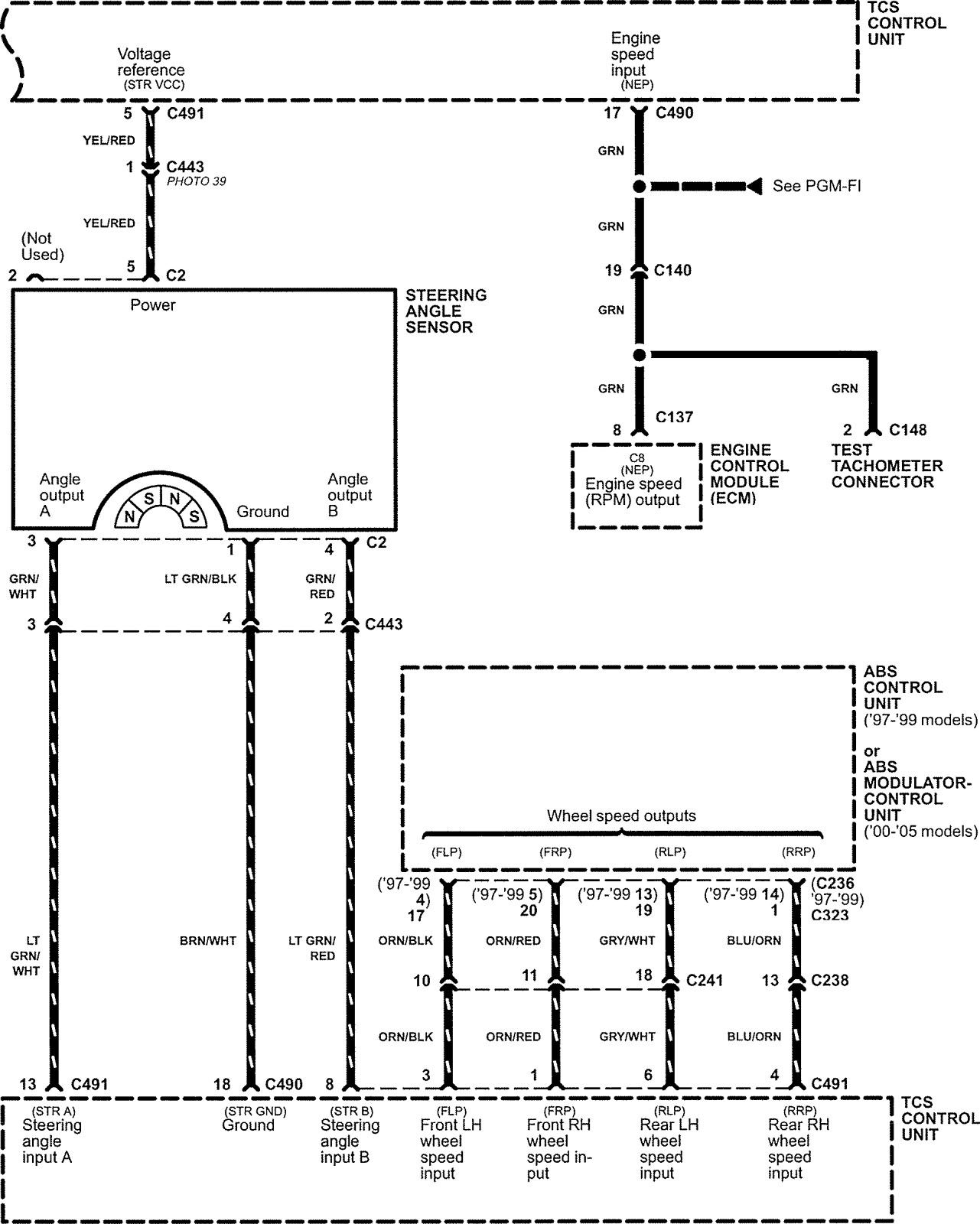

Acura NSX - wiring diagram - traction controls (part 4)
Acura NSX – wiring diagram – traction controls (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
