Acura NSX (2005) – wiring diagrams – side marker lamp

Acura NSX (2005) – wiring diagrams – side marker lamp

Year of productions:  2005

Side marker lamp

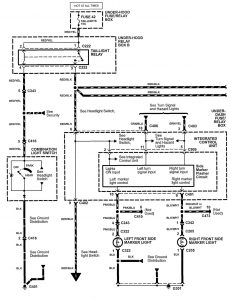

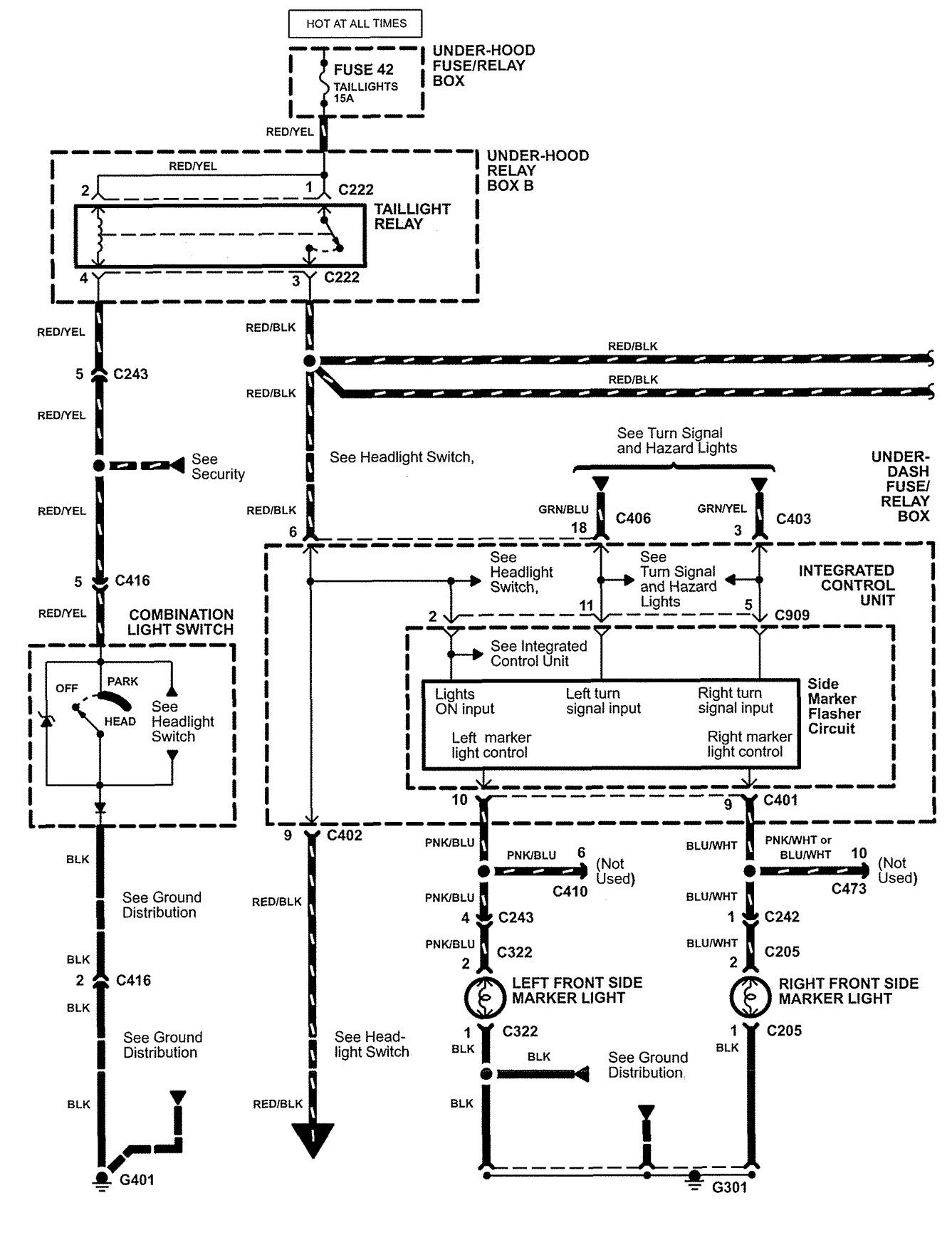

Acura NSX - wiring diagram - side marker lamp (part 1)
Acura NSX – wiring diagram – side marker lamp (part 1)

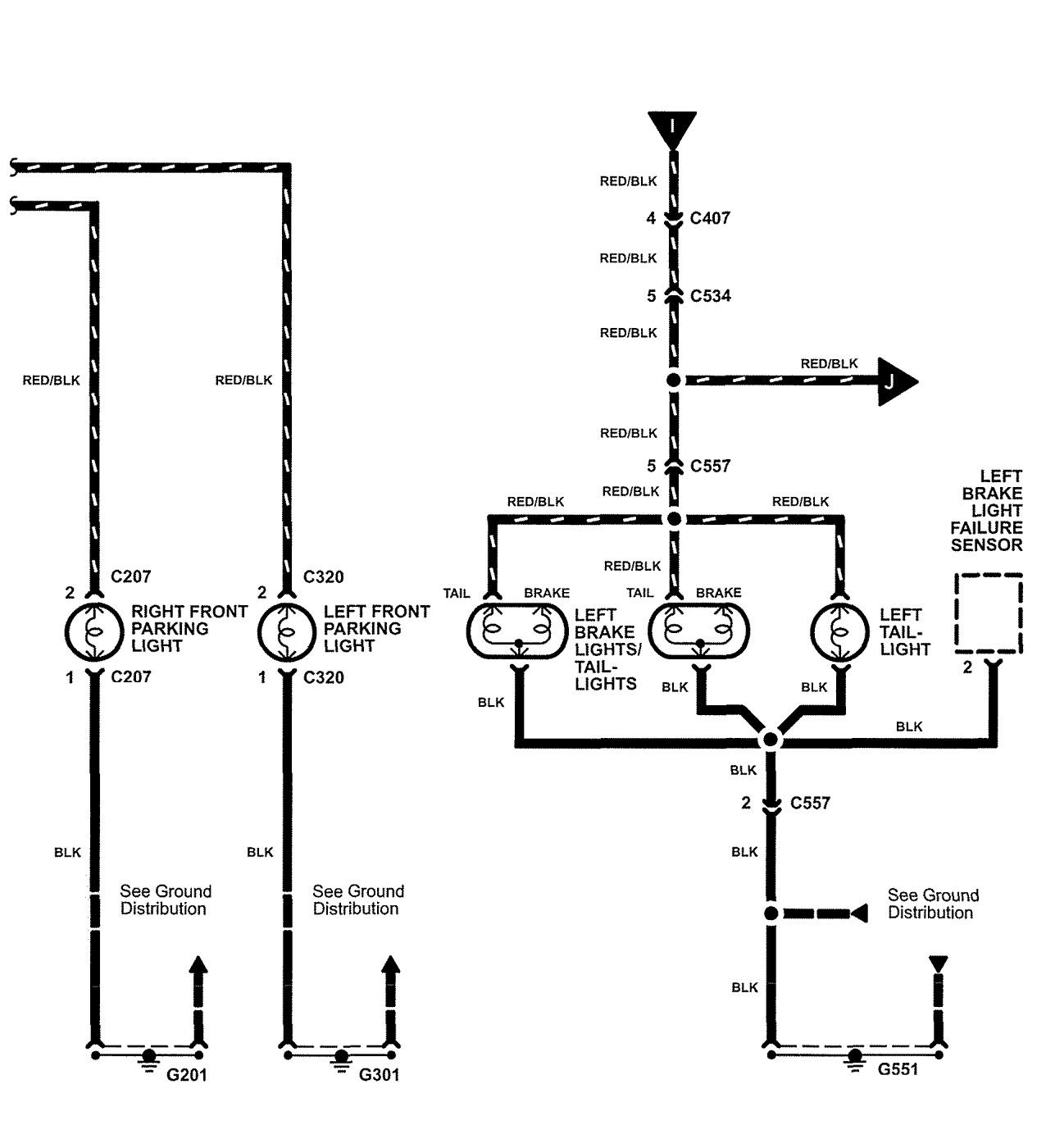

Acura NSX - wiring diagram - side marker lamp (part 2)
Acura NSX – wiring diagram – side marker lamp (part 2)

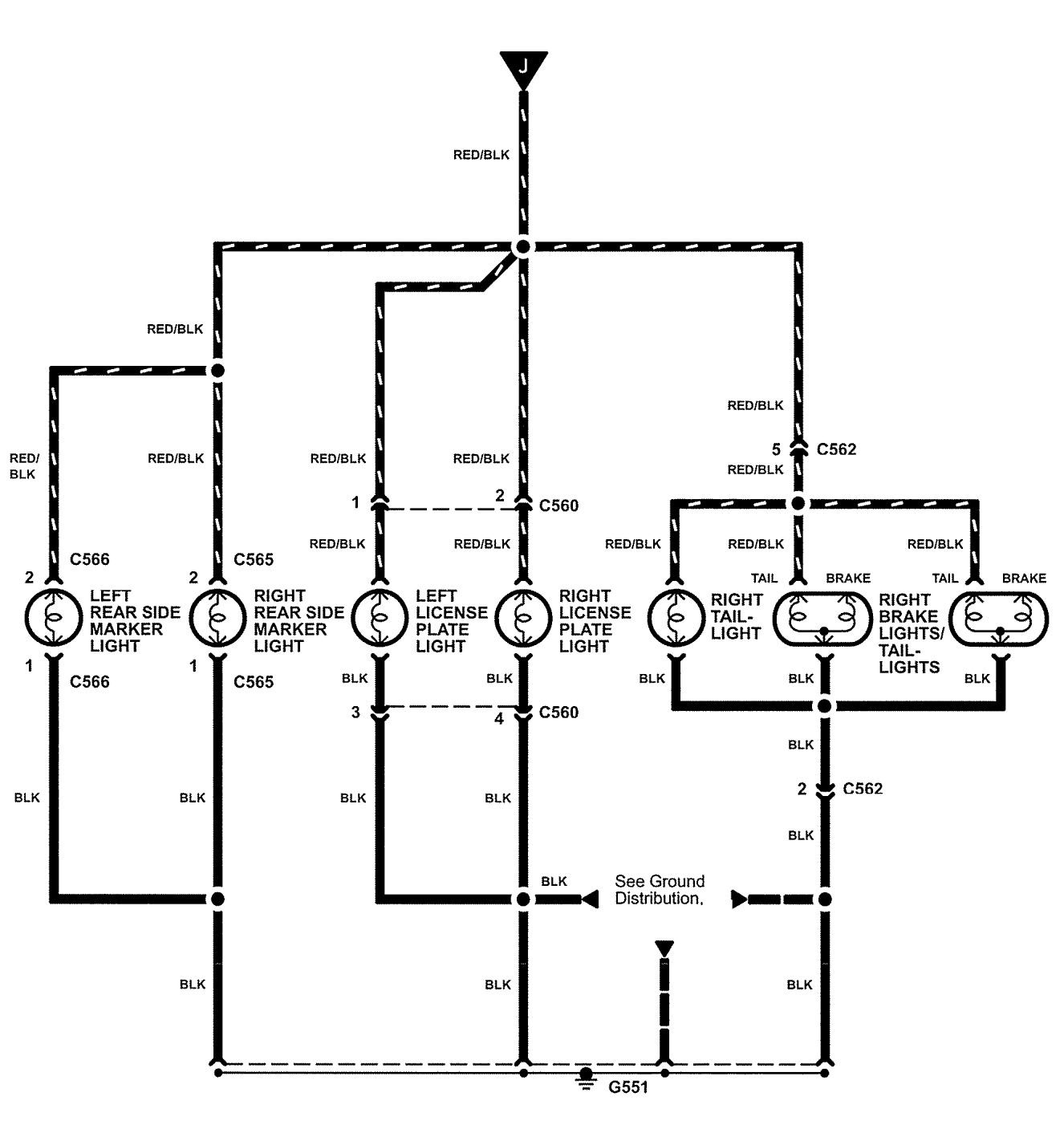

Acura NSX - wiring diagram - side marker lamp (part 3)
Acura NSX – wiring diagram – side marker lamp (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
