Acura NSX (2005) – wiring diagrams – power distribution

Acura NSX (2005) – wiring diagrams – power distribution

Year of productions:  2005

Power distribution

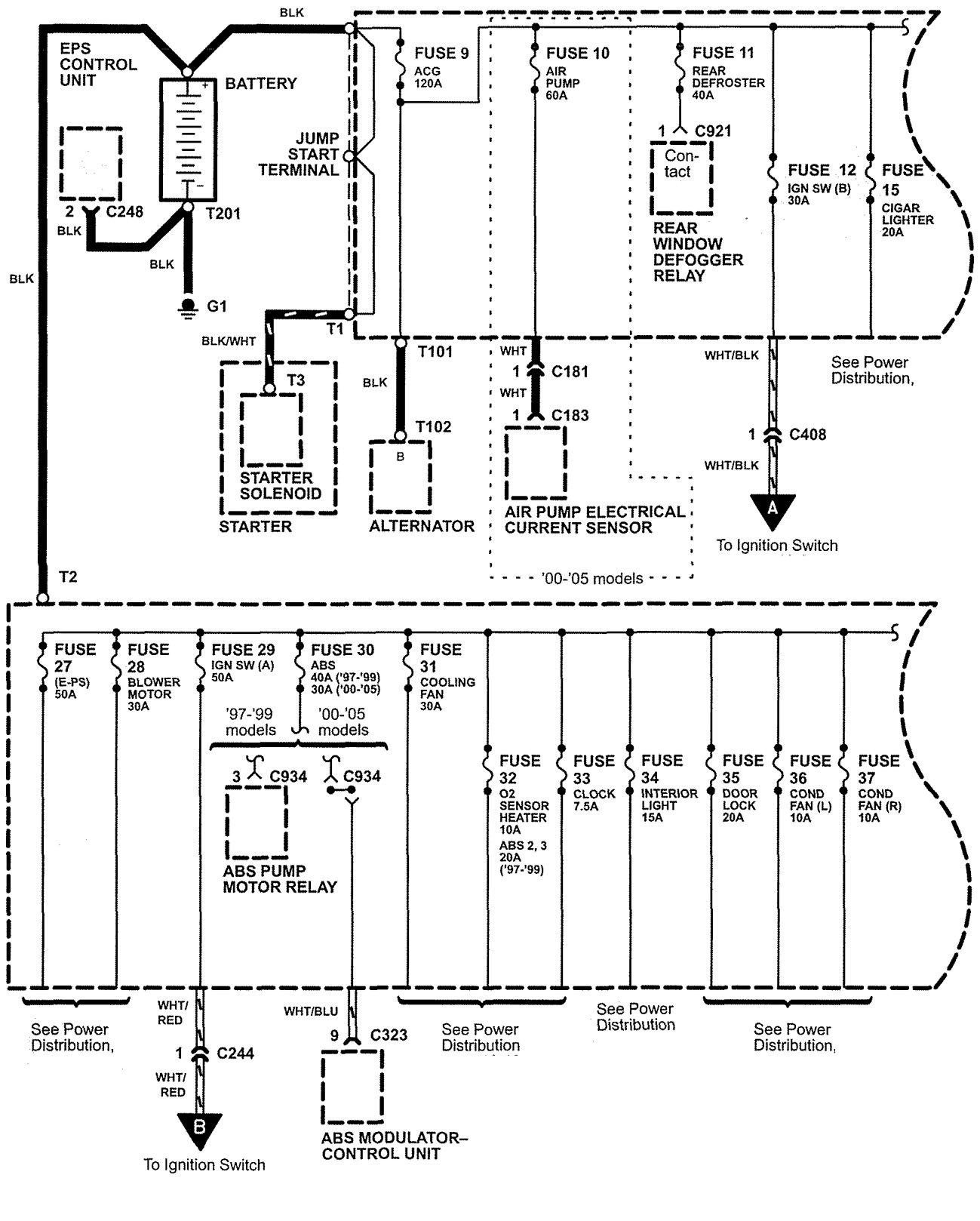

Acura NSX - wiring diagram - power distribution (part 1)
Acura NSX – wiring diagram – power distribution (part 1)

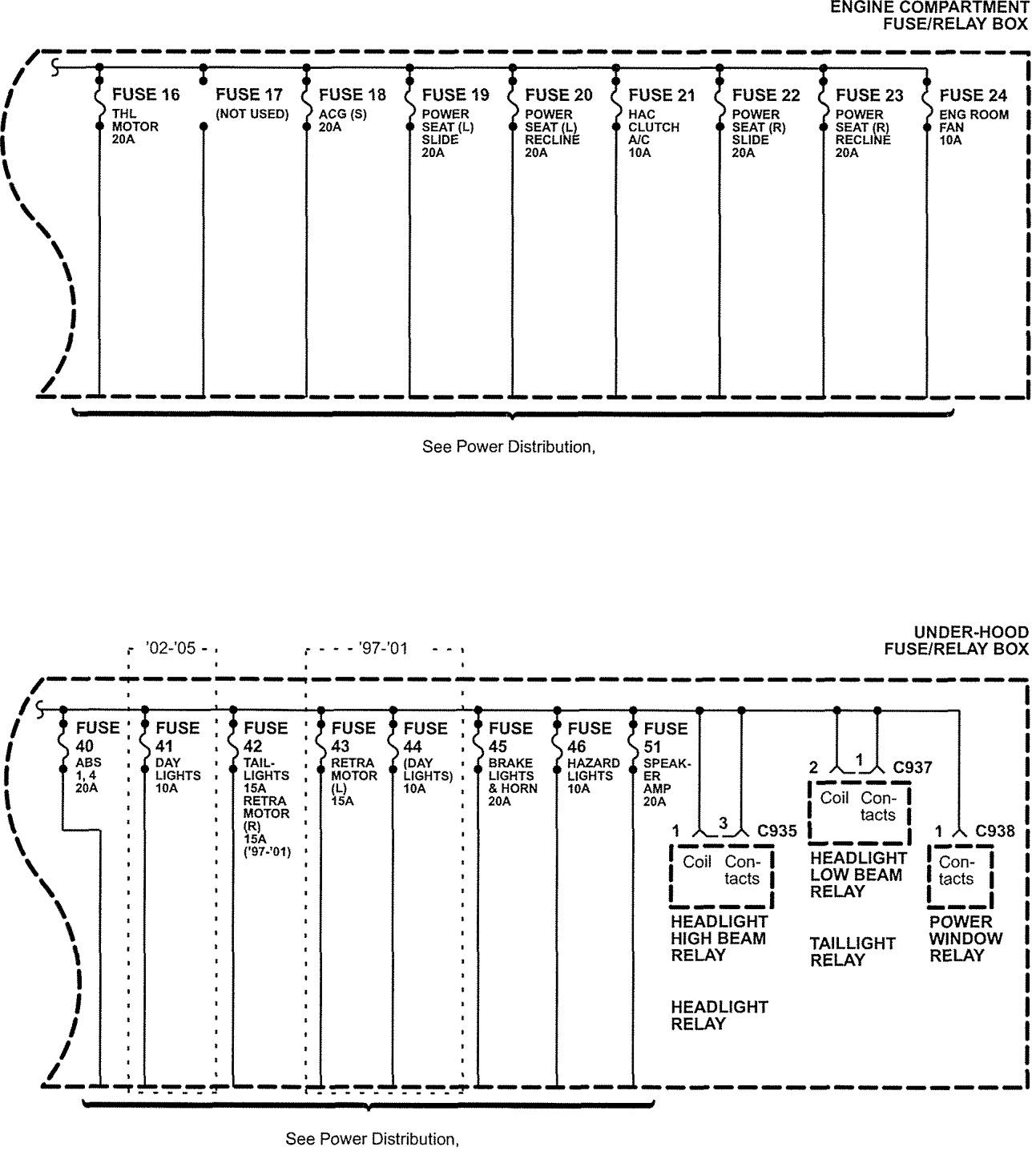

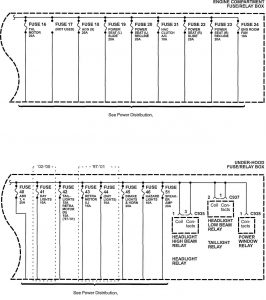

Acura NSX - wiring diagram - power distribution (part 2)
Acura NSX – wiring diagram – power distribution (part 2)

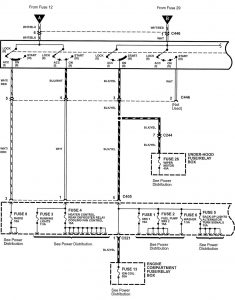

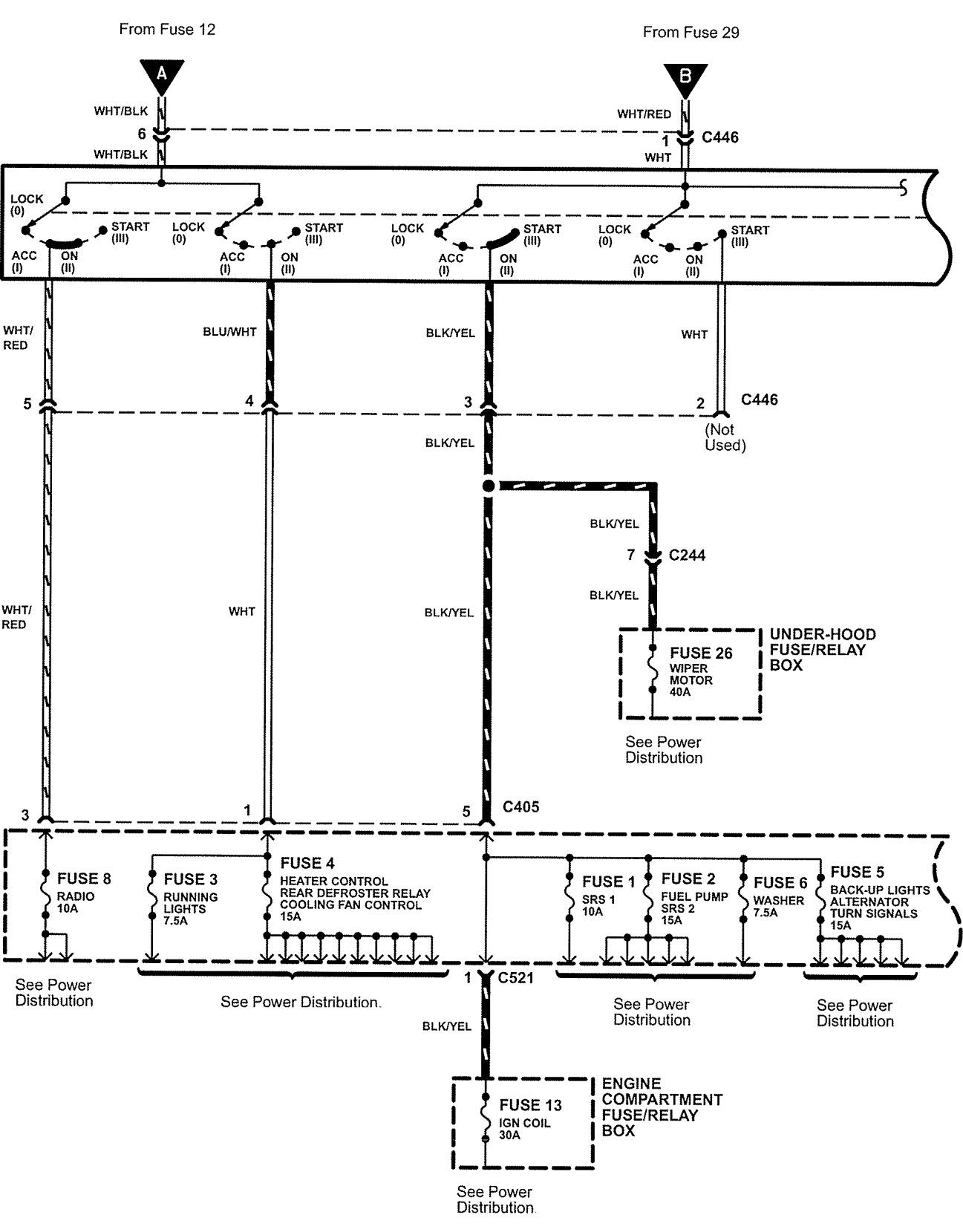

Acura NSX - wiring diagram - power distribution (part 3)
Acura NSX – wiring diagram – power distribution (part 3)
Acura NSX - wiring diagram - power distribution (part 4)
Acura NSX – wiring diagram – power distribution (part 4)

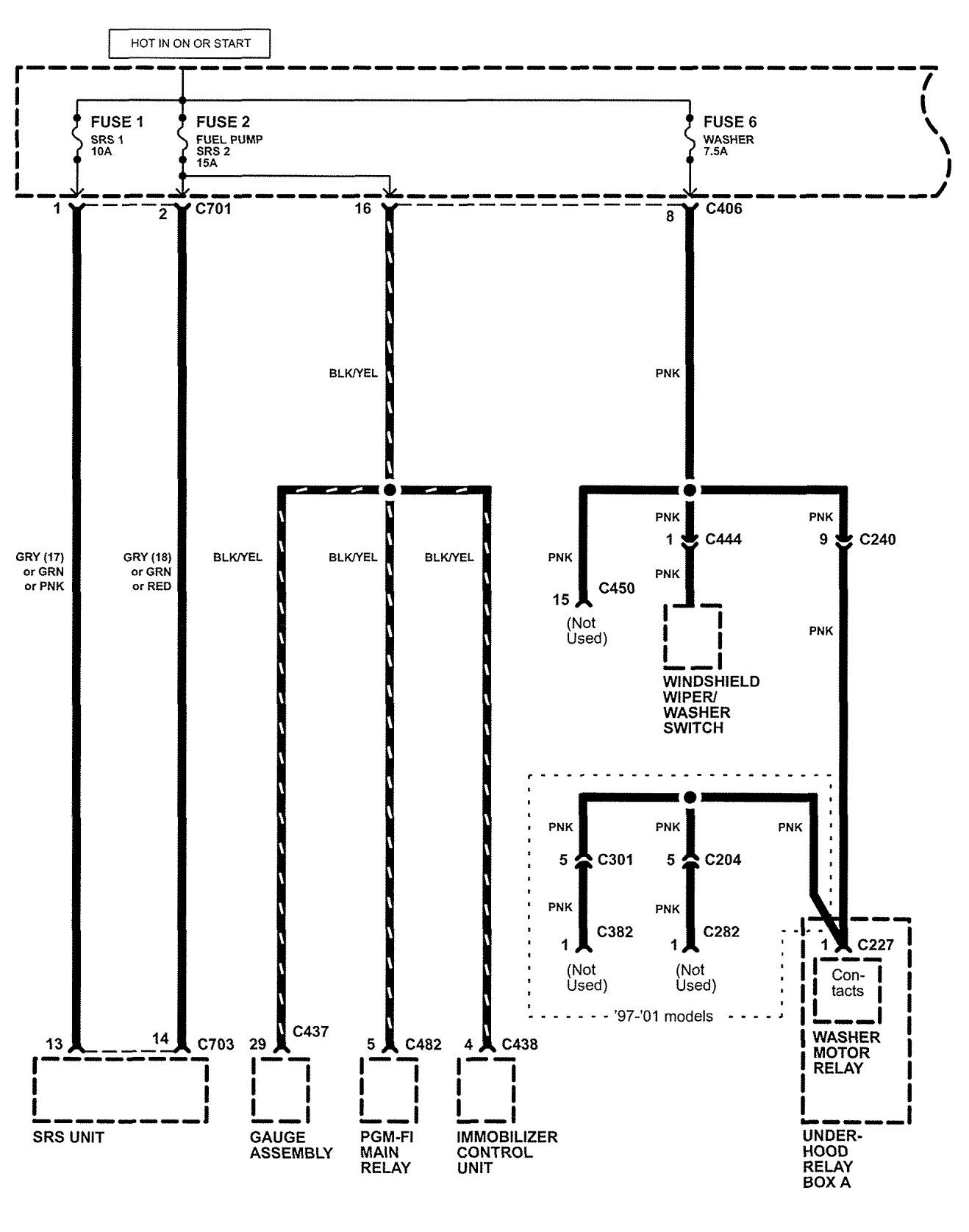

Acura NSX - wiring diagram - power distribution (part 5)
Acura NSX – wiring diagram – power distribution (part 5)

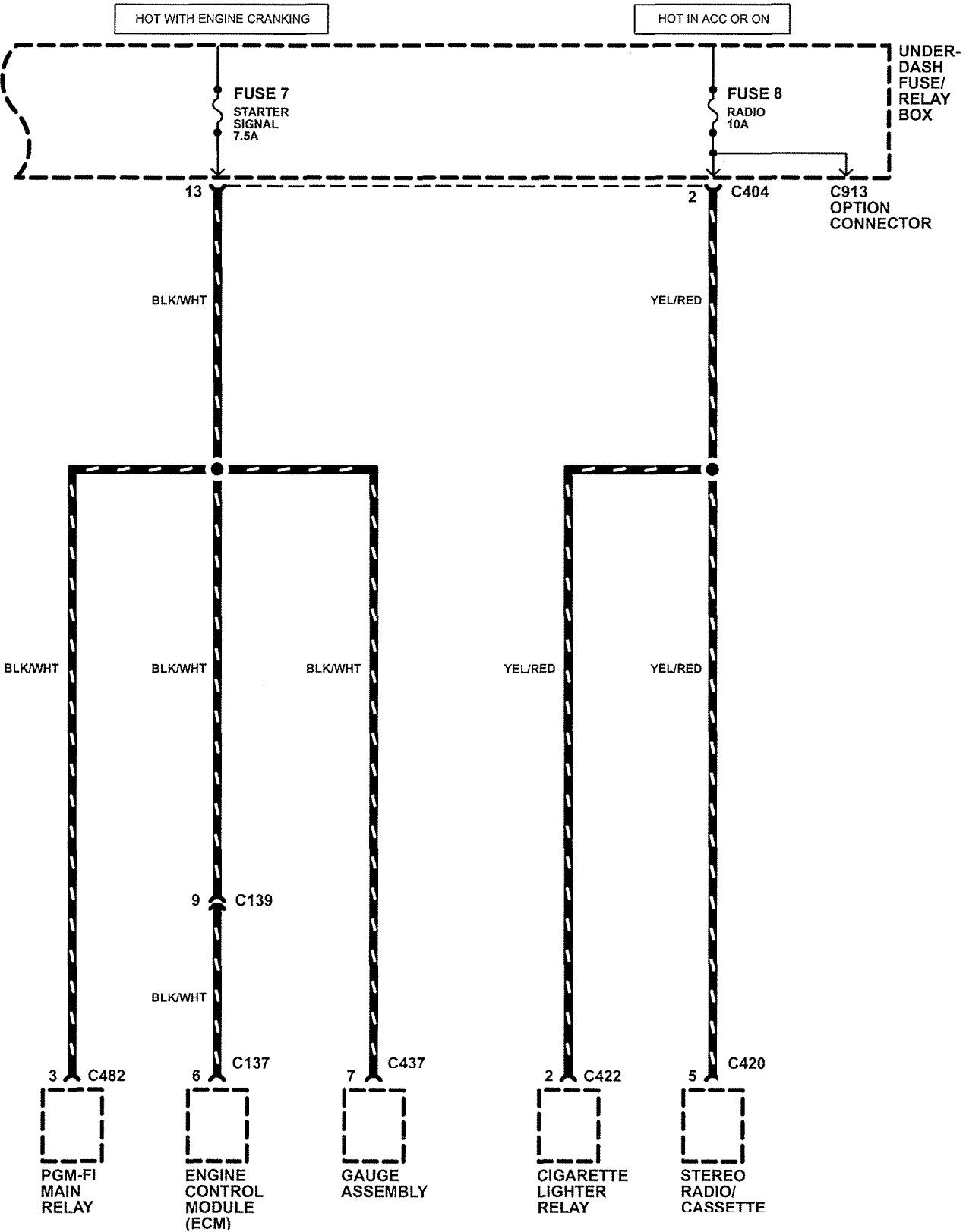

Acura NSX - wiring diagram - power distribution (part 6)
Acura NSX – wiring diagram – power distribution (part 6)

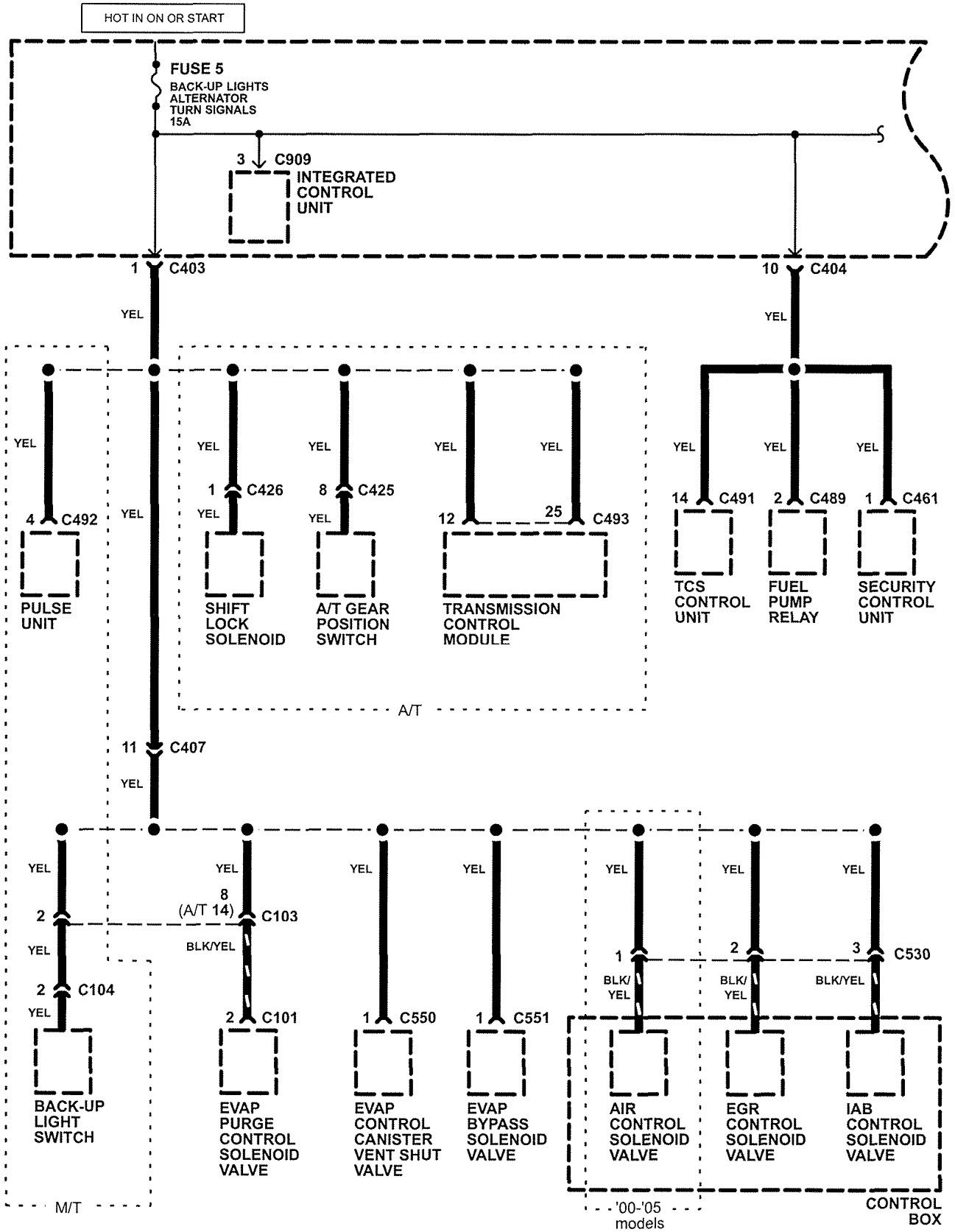

Acura NSX - wiring diagram - power distribution (part 7)
Acura NSX – wiring diagram – power distribution (part 7)

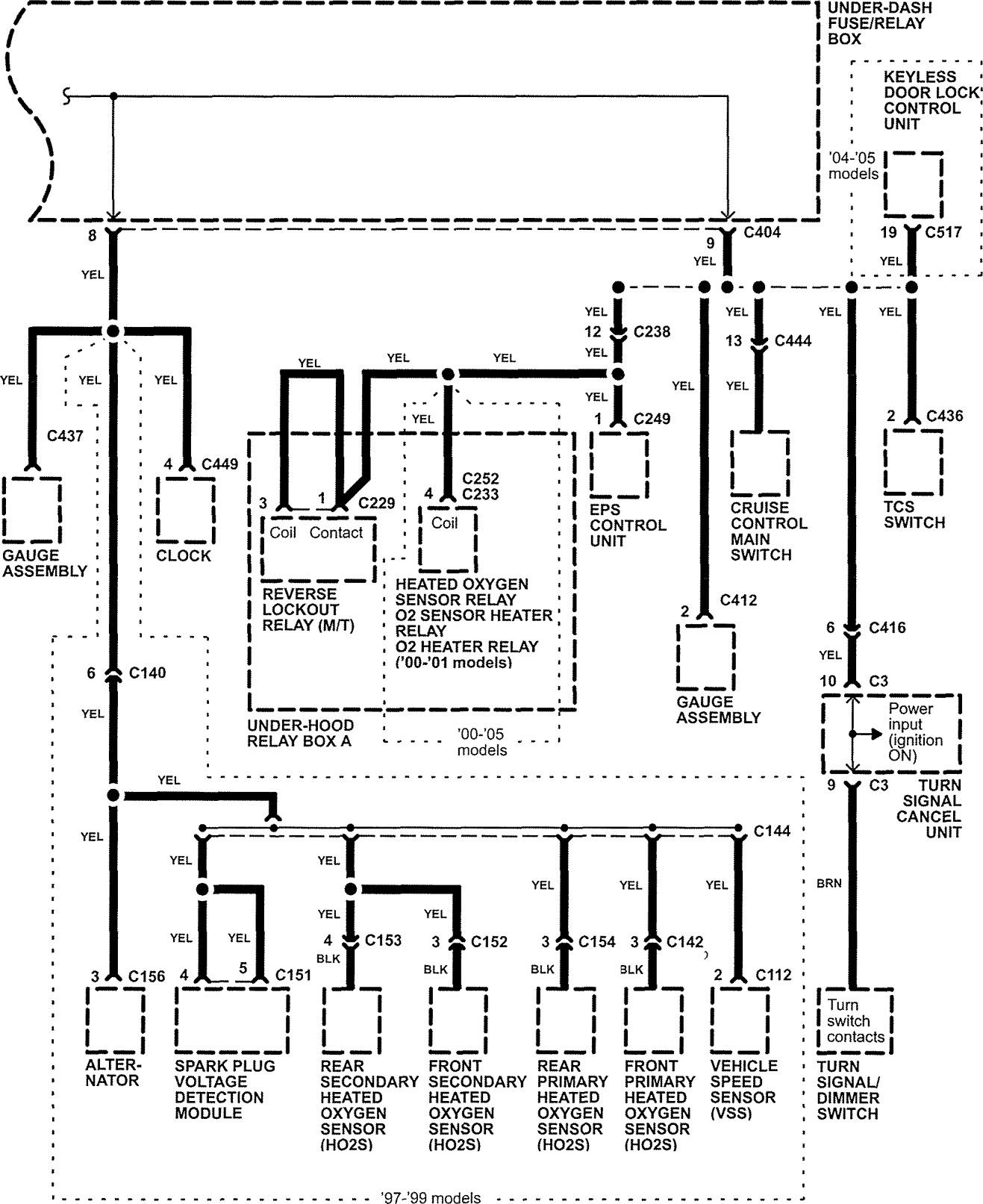

Acura NSX - wiring diagram - power distribution (part 8)
Acura NSX – wiring diagram – power distribution (part 8)

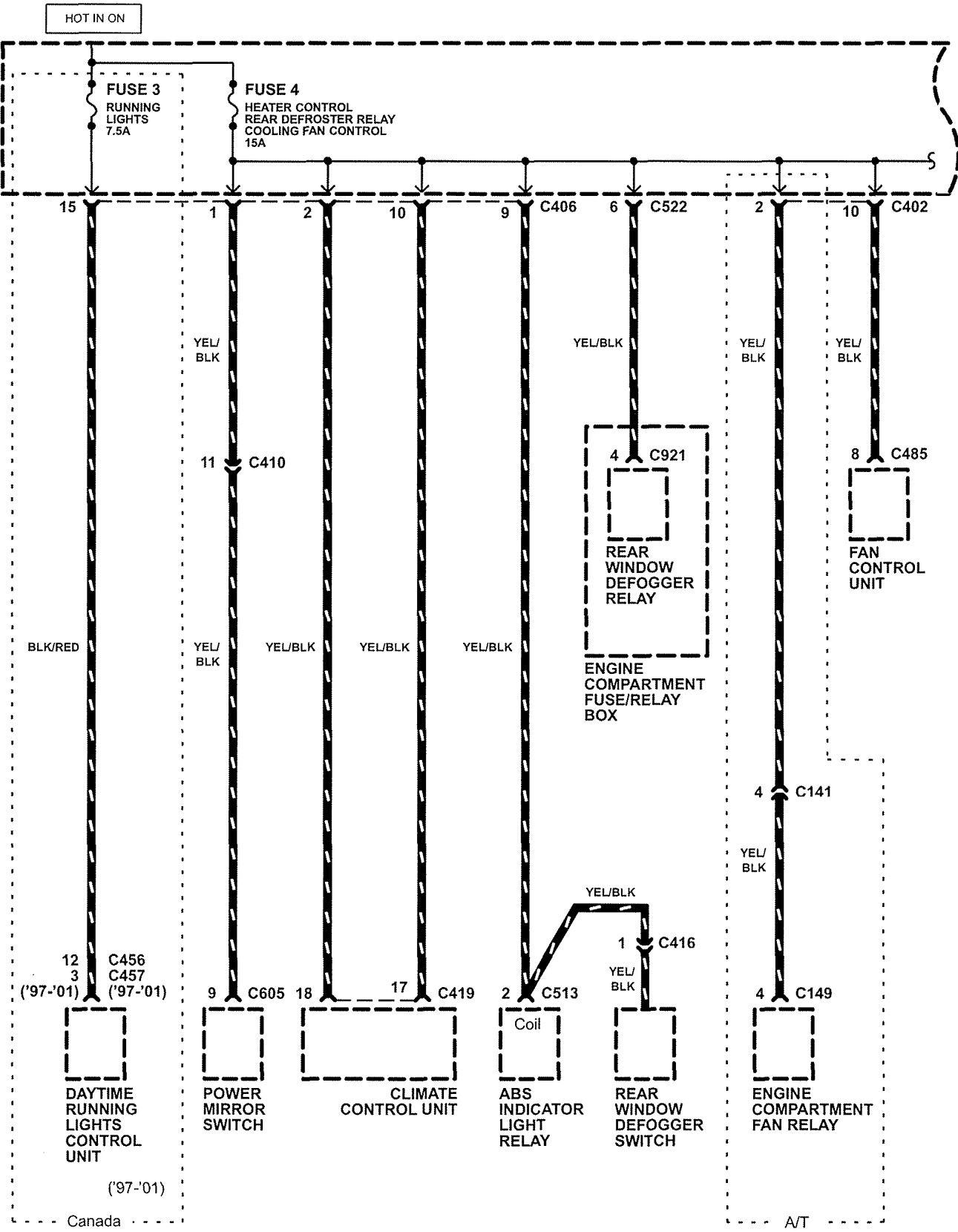

Acura NSX - wiring diagram - power distribution (part 9)
Acura NSX – wiring diagram – power distribution (part 9)

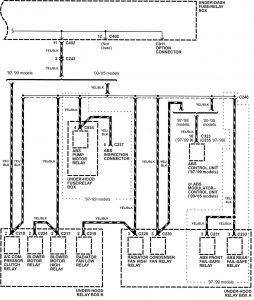

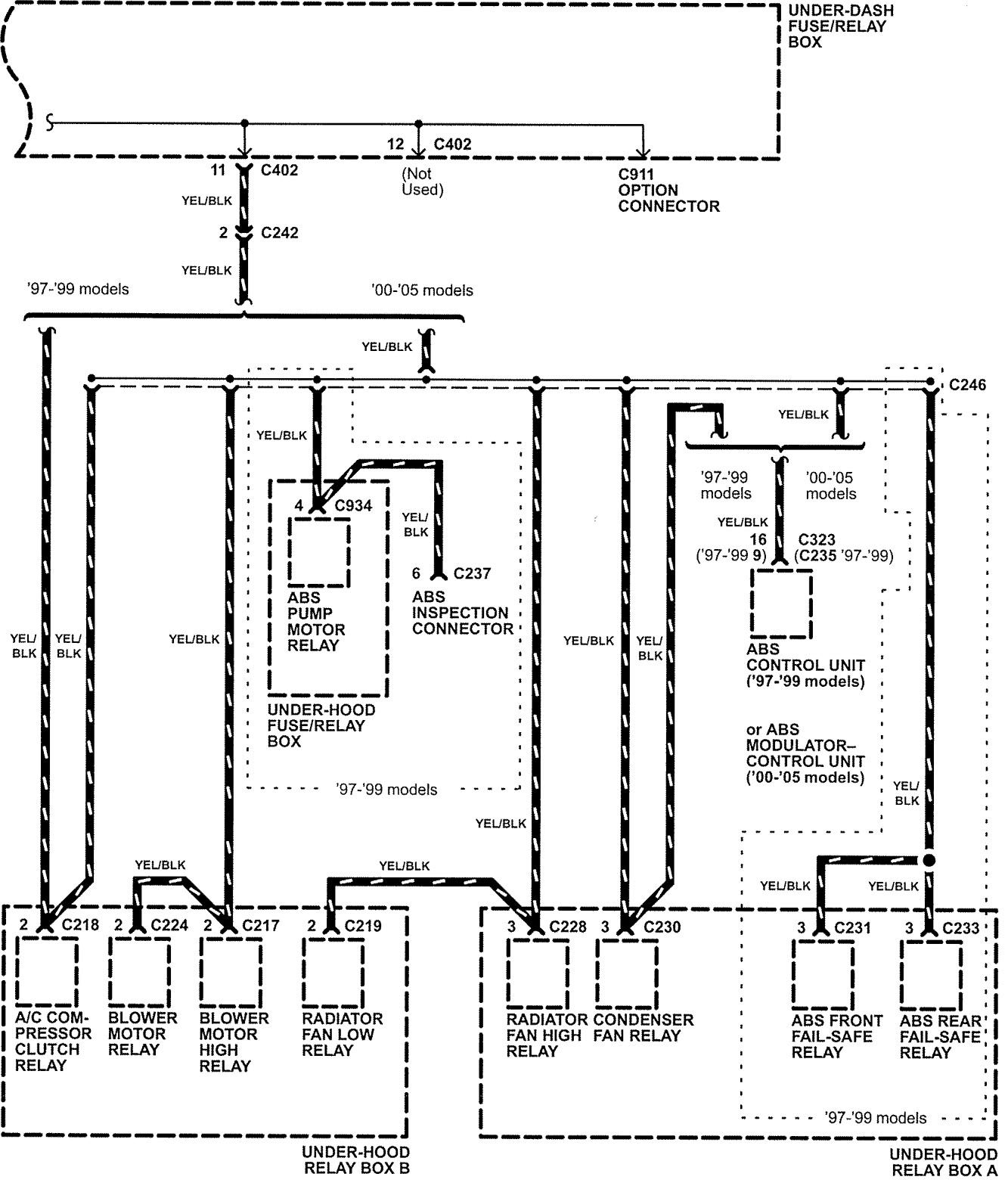

Acura NSX - wiring diagram - power distribution (part 10)
Acura NSX – wiring diagram – power distribution (part 10)

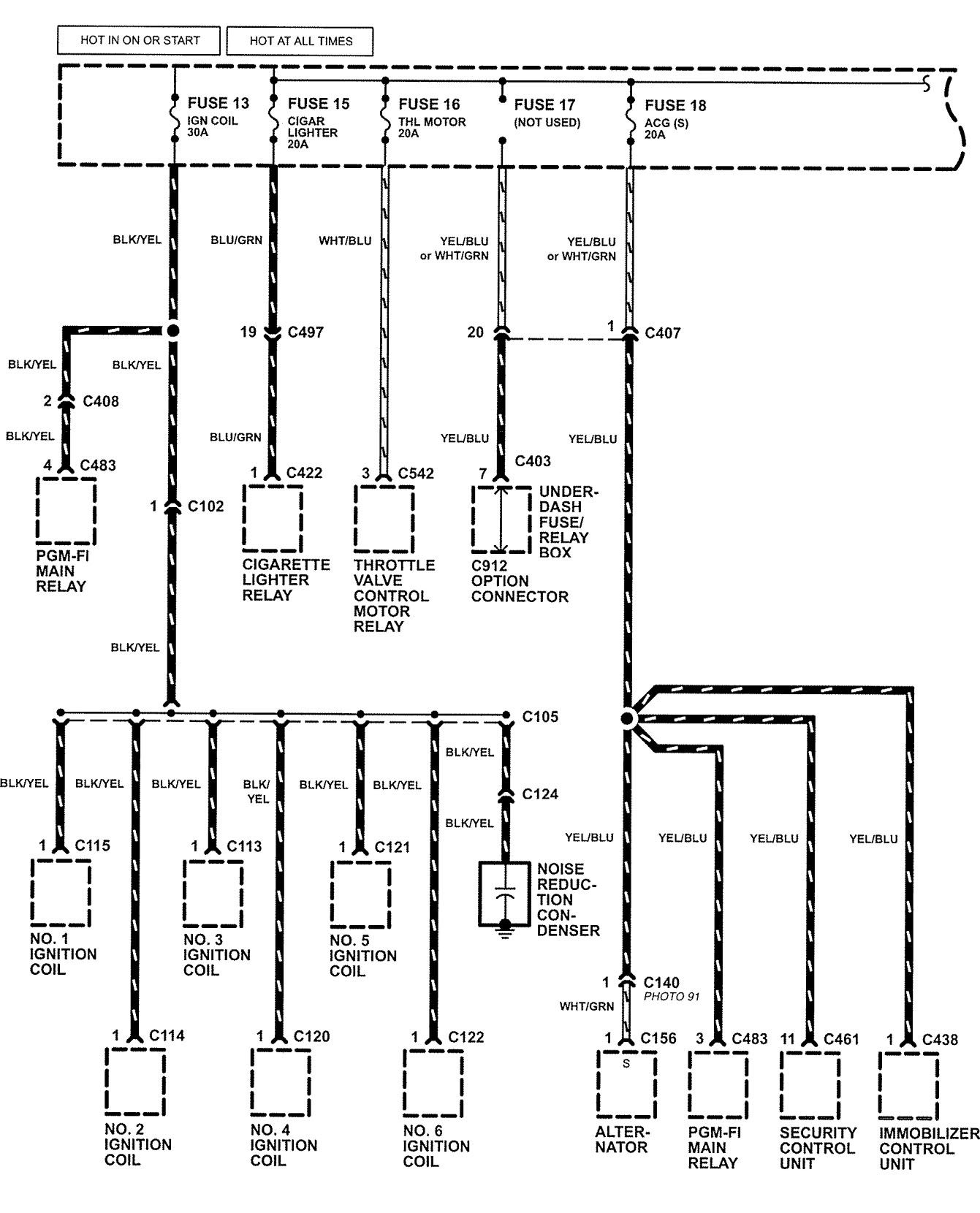

Acura NSX - wiring diagram - power distribution (part 11)
Acura NSX – wiring diagram – power distribution (part 11)

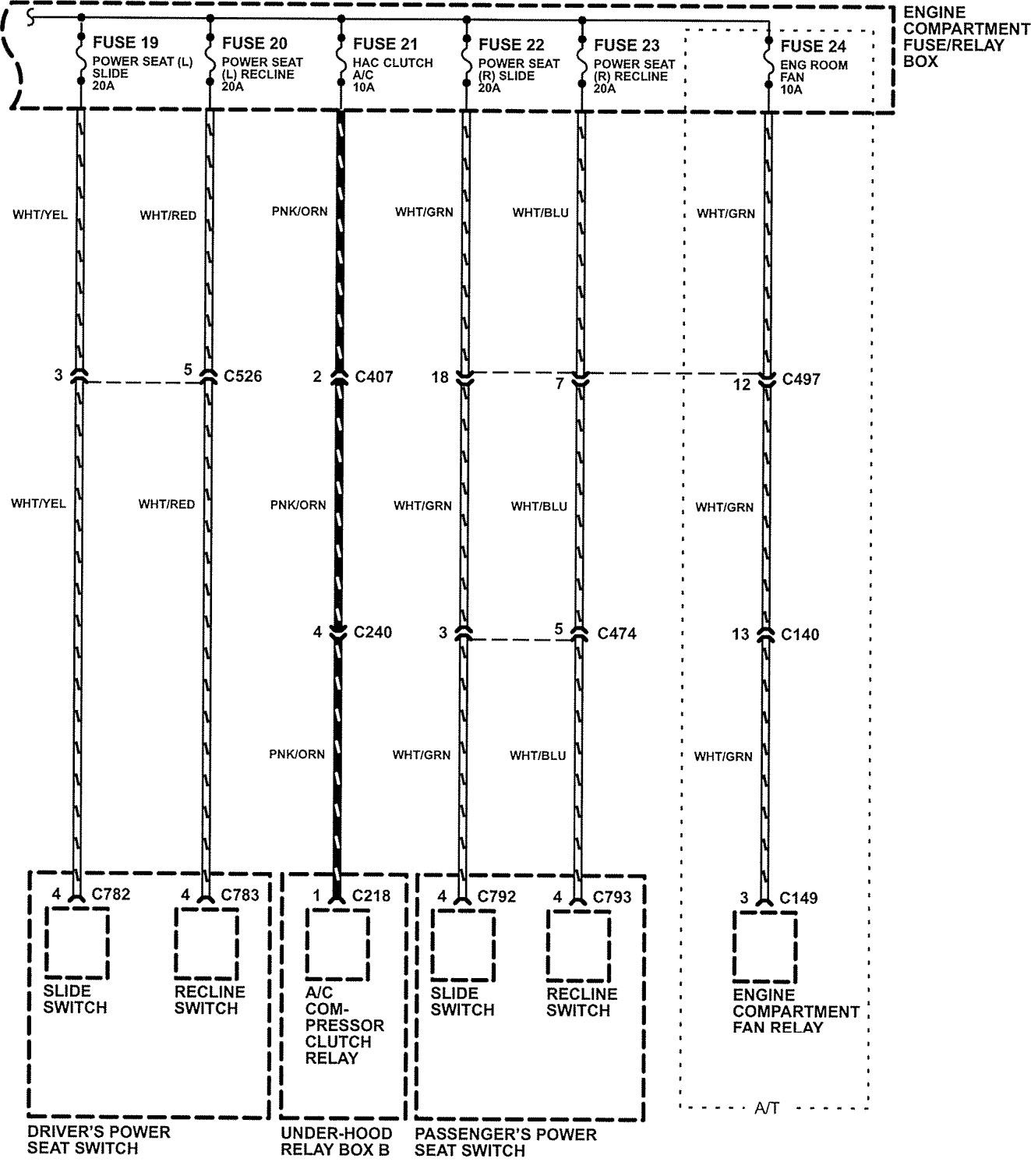

Acura NSX - wiring diagram - power distribution (part 12)
Acura NSX – wiring diagram – power distribution (part 12)

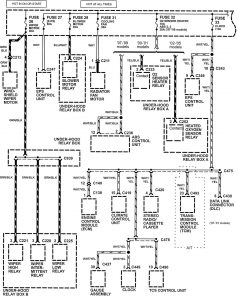

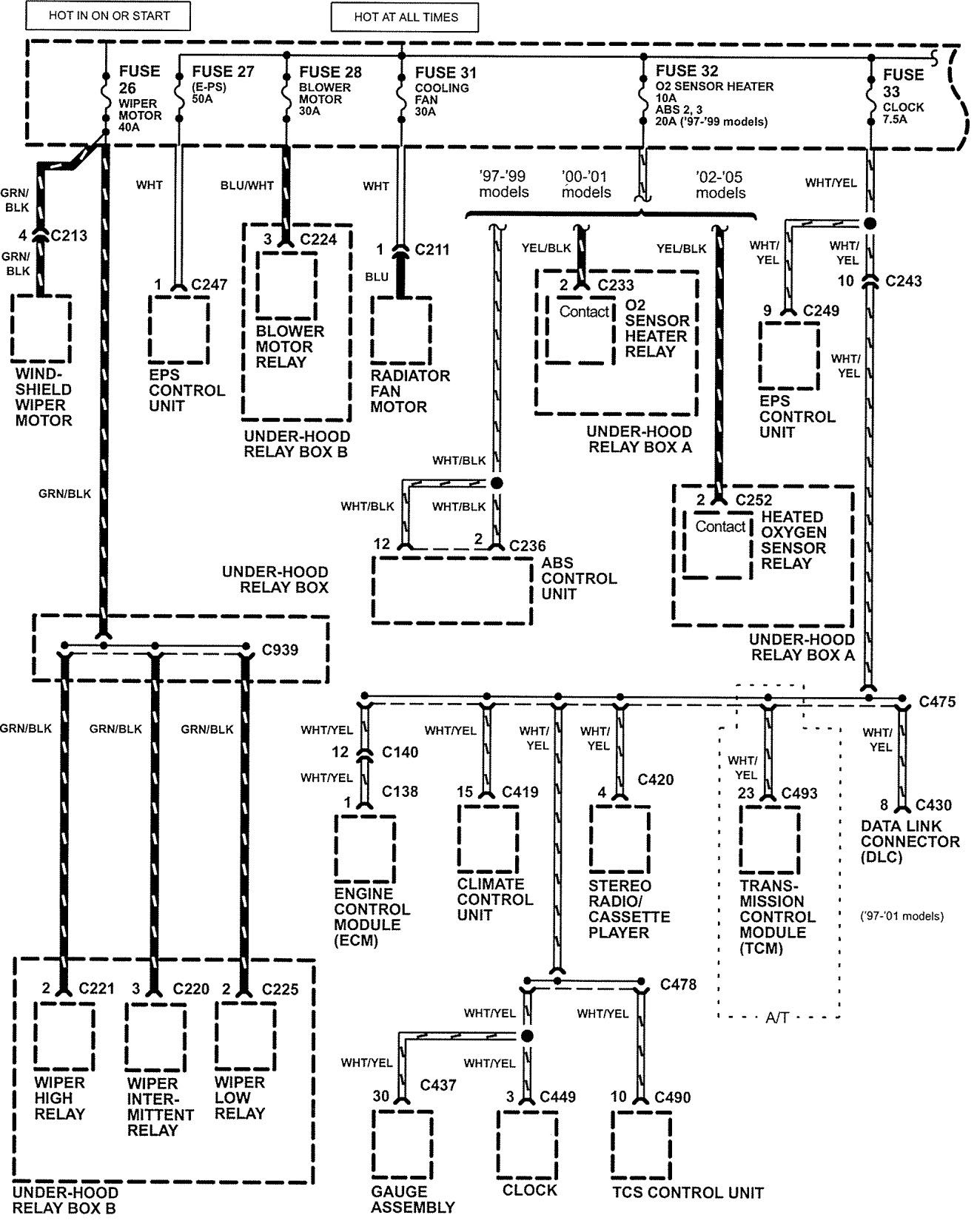

Acura NSX - wiring diagram - power distribution (part 13)
Acura NSX – wiring diagram – power distribution (part 13)

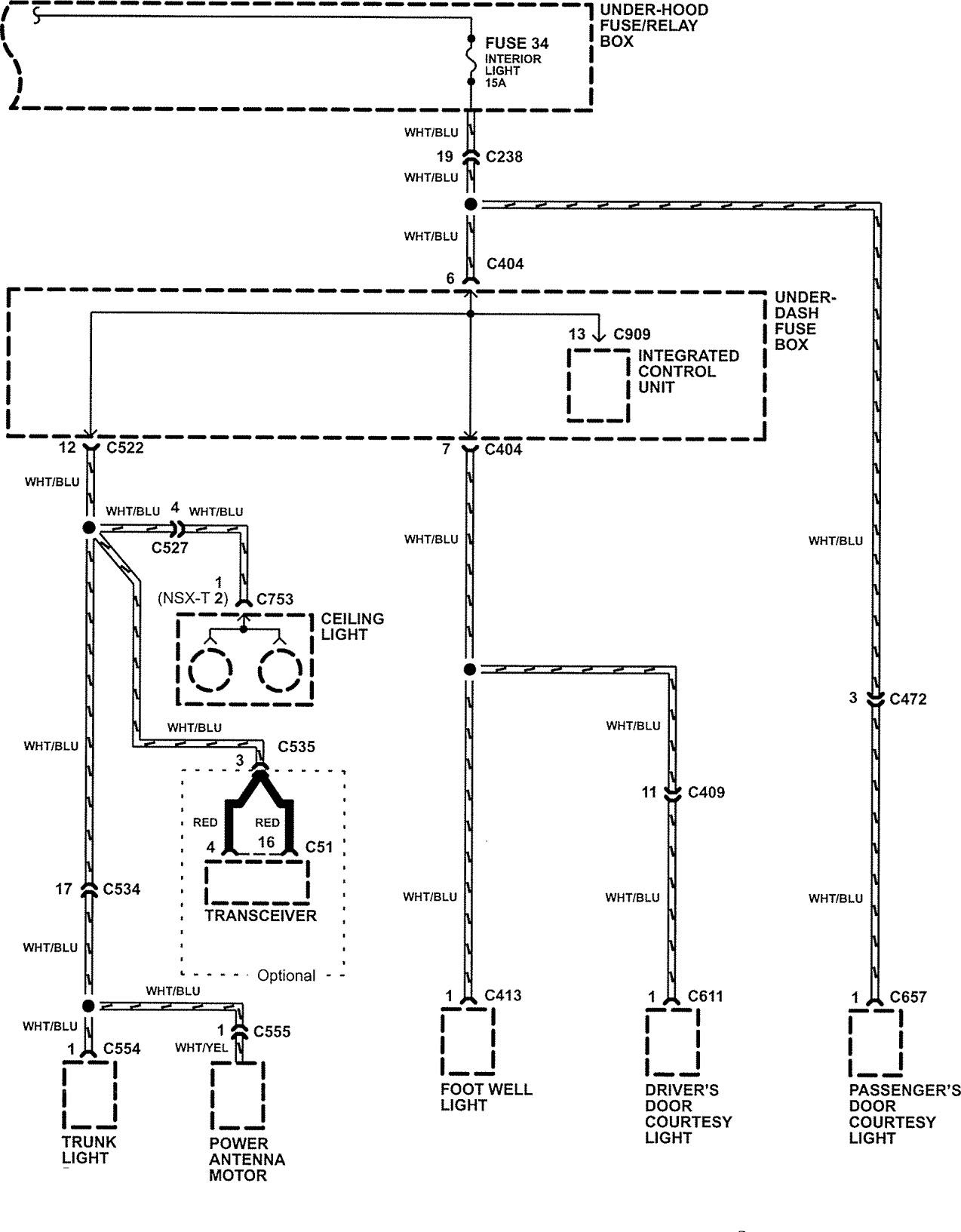

Acura NSX - wiring diagram - power distribution (part 14)
Acura NSX – wiring diagram – power distribution (part 14)

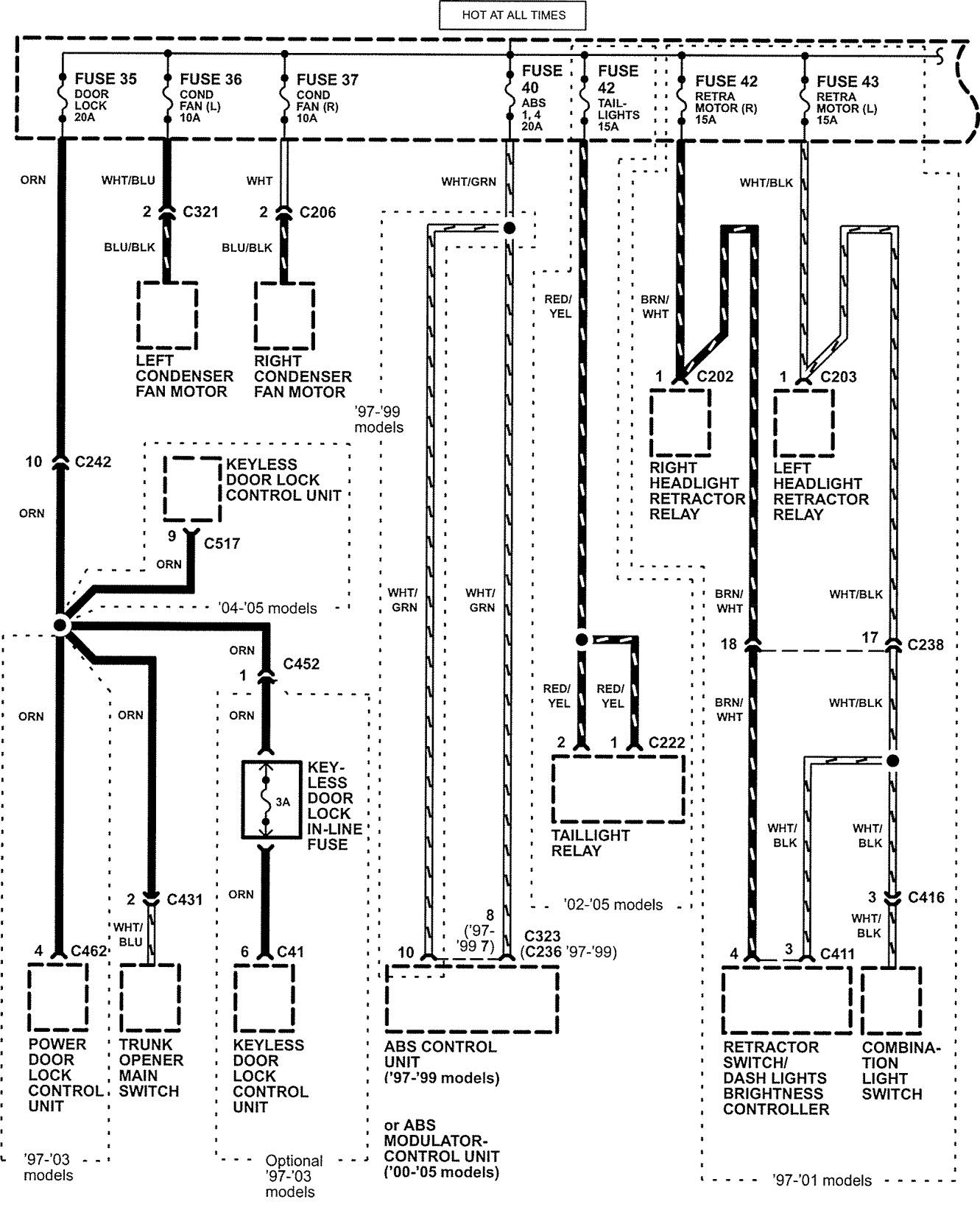

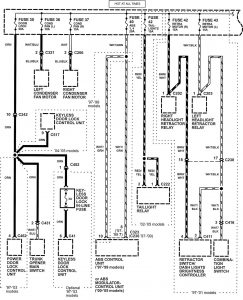

Acura NSX - wiring diagram - power distribution (part 15)
Acura NSX – wiring diagram – power distribution (part 15)

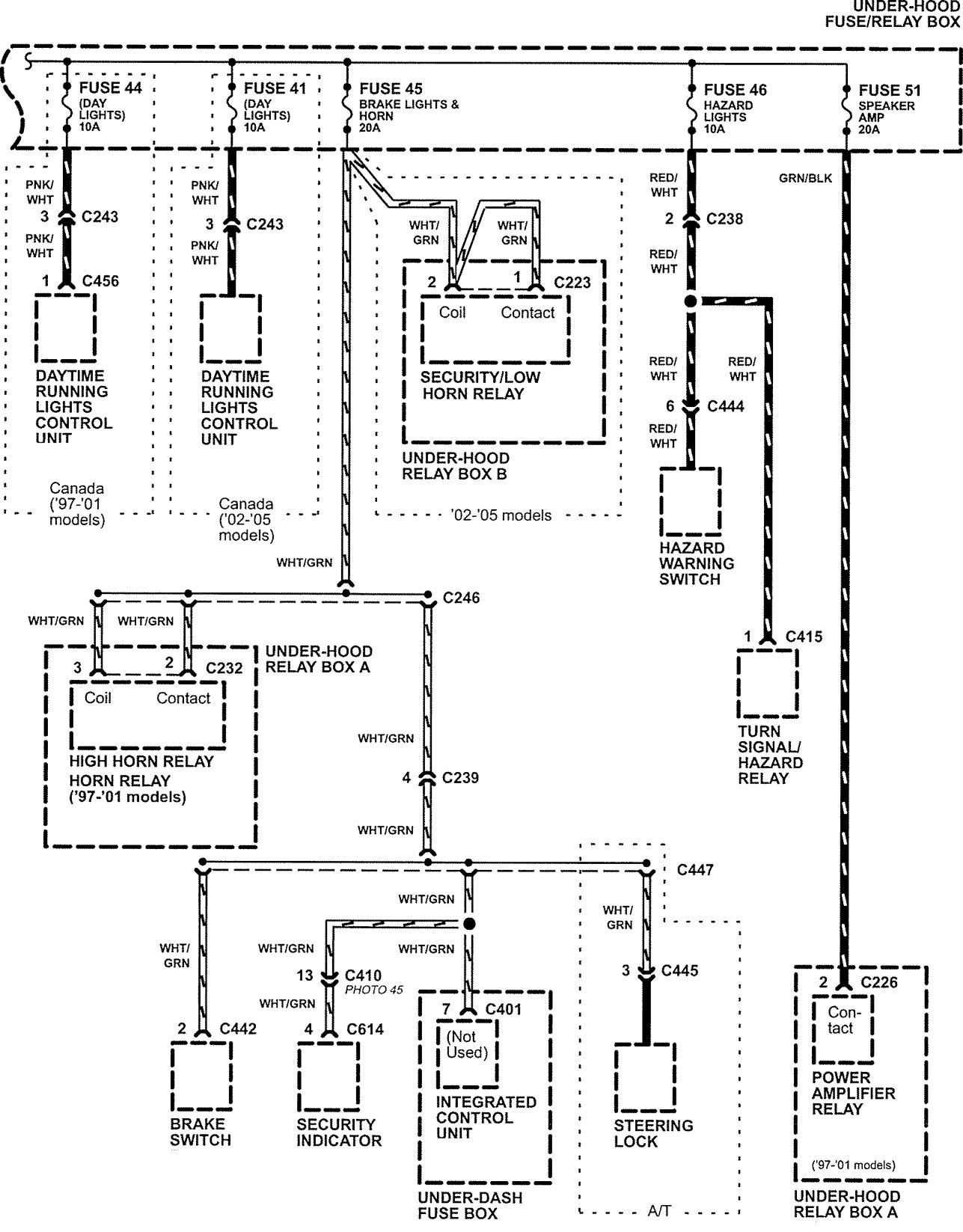

Acura NSX - wiring diagram - power distribution (part 16)
Acura NSX – wiring diagram – power distribution (part 16)

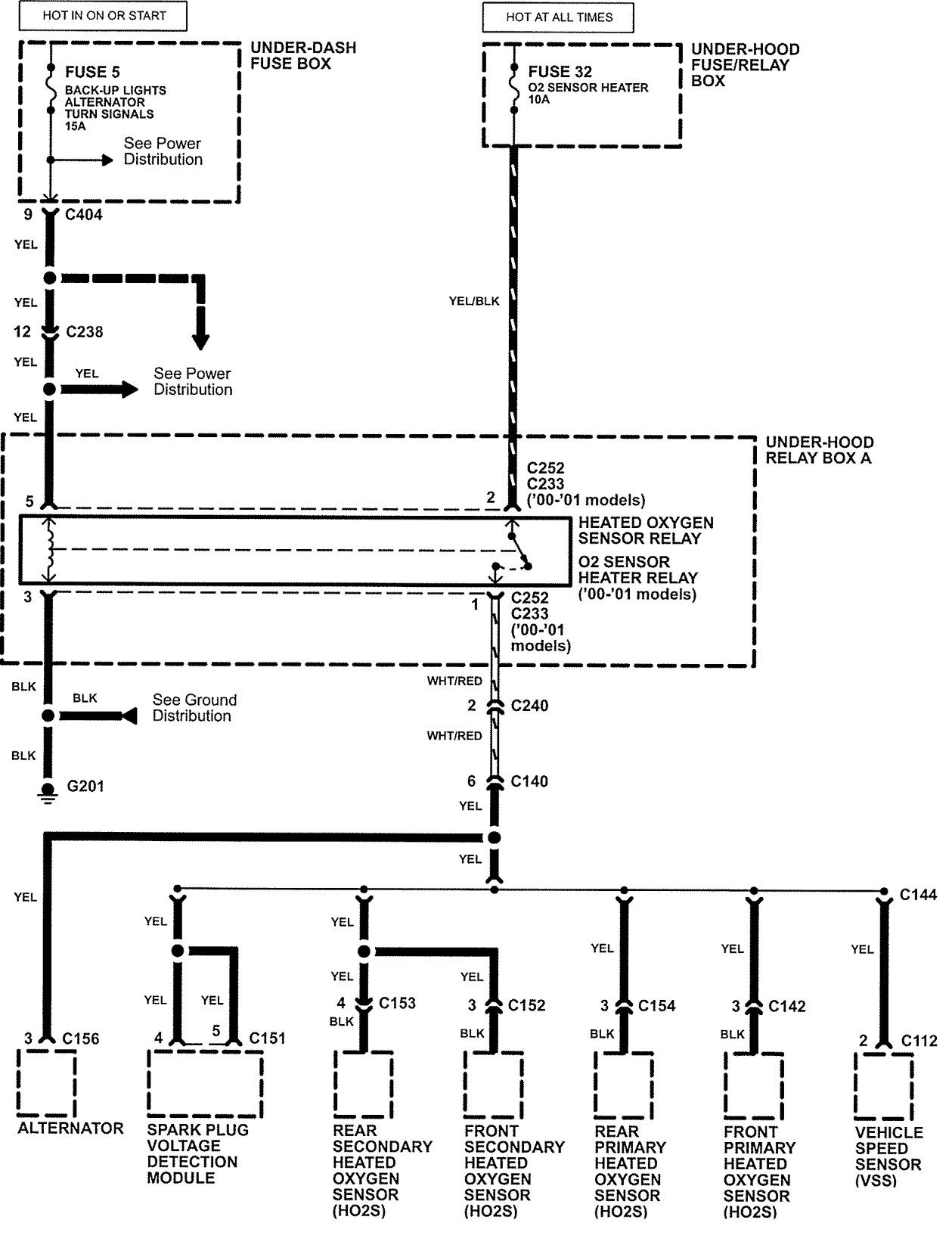

Acura NSX - wiring diagram - power distribution (part 17)
Acura NSX – wiring diagram – power distribution (part 17)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
