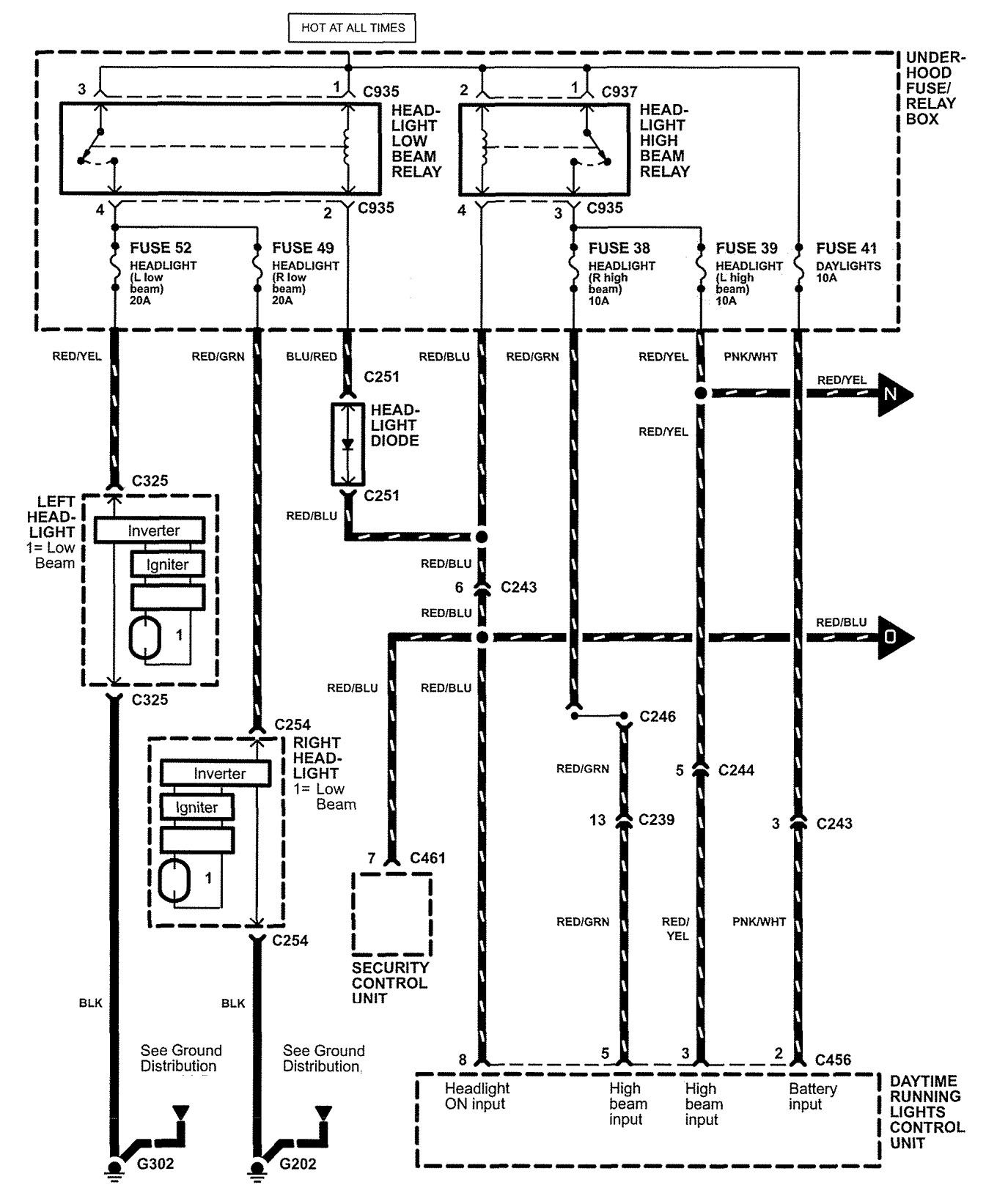

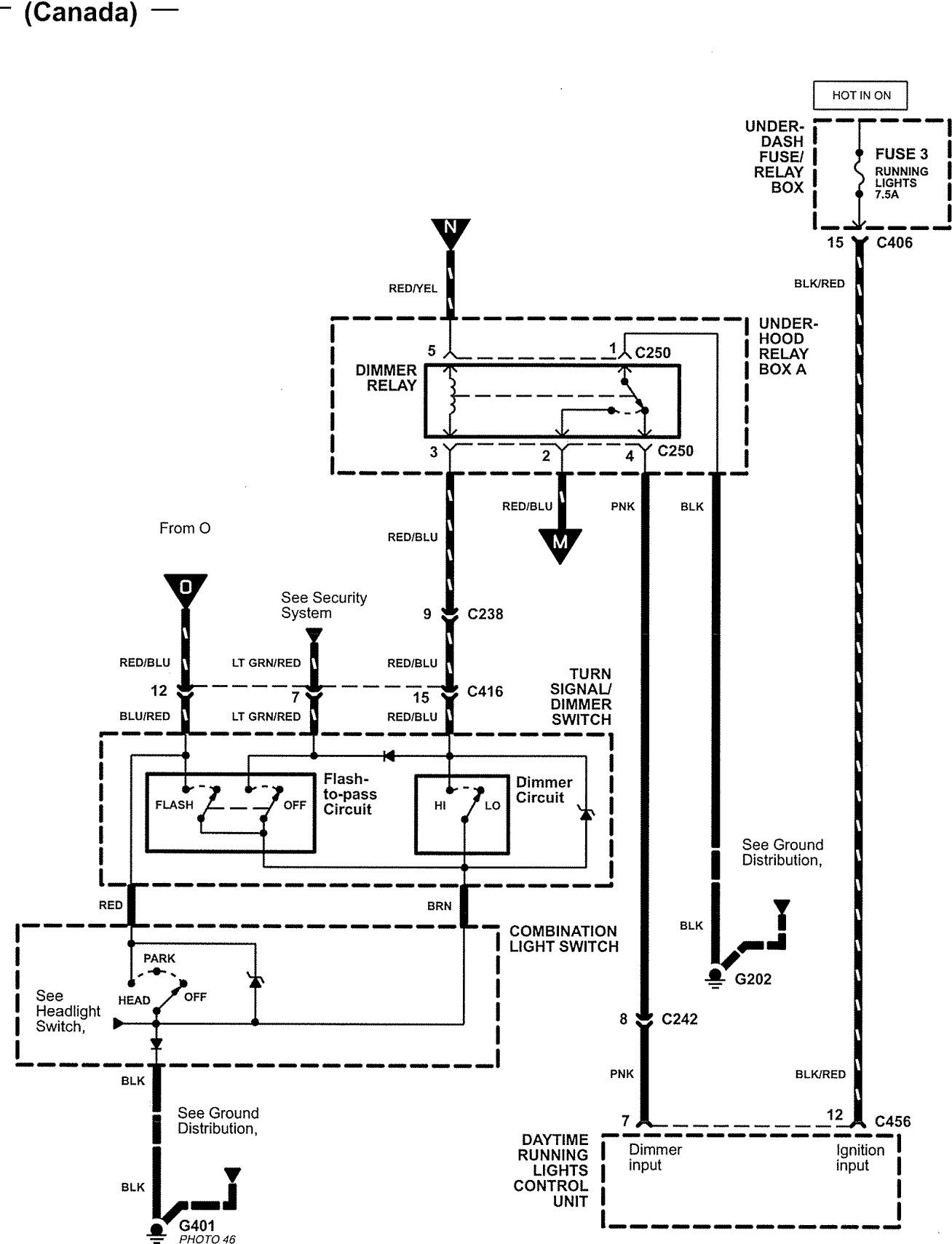

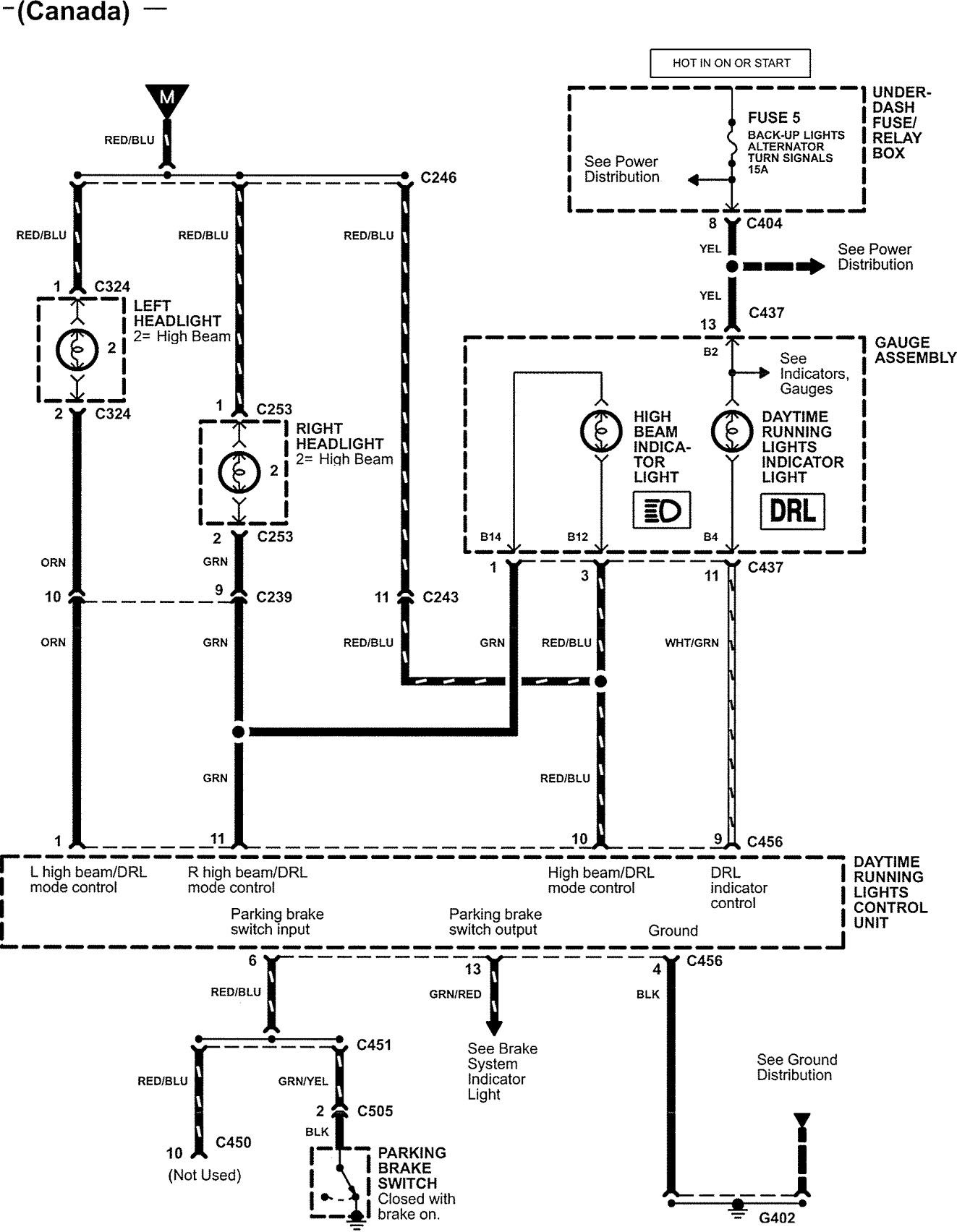

Acura NSX (2005) – wiring diagrams – daytime running lamps

Acura NSX (2005) – wiring diagrams – security/anti-theft Year of productions:  2005 Security/Anti-Theft Version 1 Version 2 WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Acura RL (1996 – 1999) – wiring diagrams – ignition Year of productions:  1996, 1997, 1998, 1999 Ignition WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and […]

Acura RL (2003 – 2004) – wiring diagrams – instrument panel lamps Year of production:  2003, 2004 Instrument panel lamps Version 1 Version2 WARNING: Terminal and harness assignments for individual connectors will vary depending on […]
