Acura NSX (2005) – wiring diagrams – courtesy lamp

Acura NSX (2005) – wiring diagrams – courtesy lamp

Year of productions:  2005

Courtesy lamp

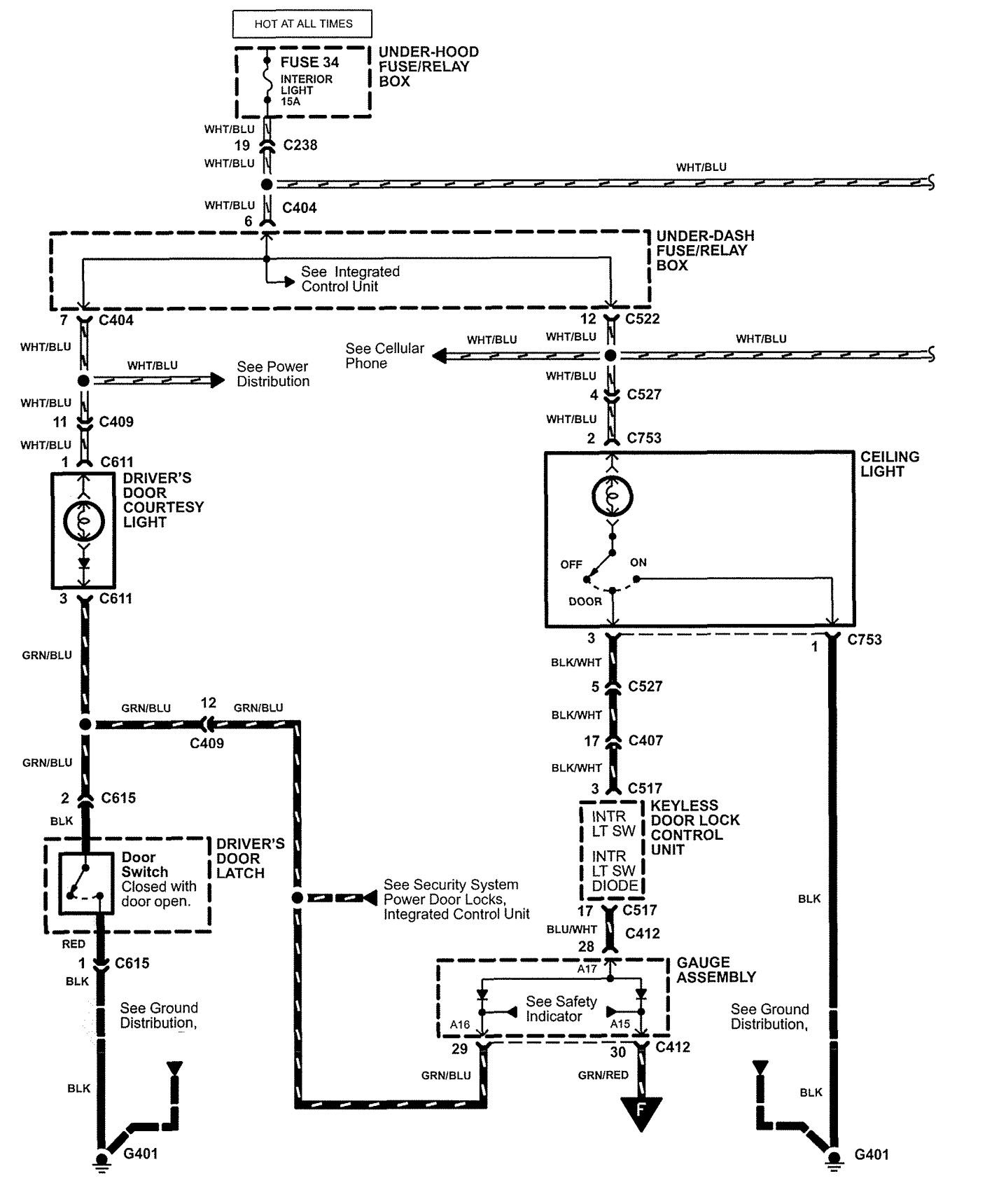

Acura NSX - wiring diagram - courtesy lamp (part 1)
Acura NSX – wiring diagram – courtesy lamp (part 1)

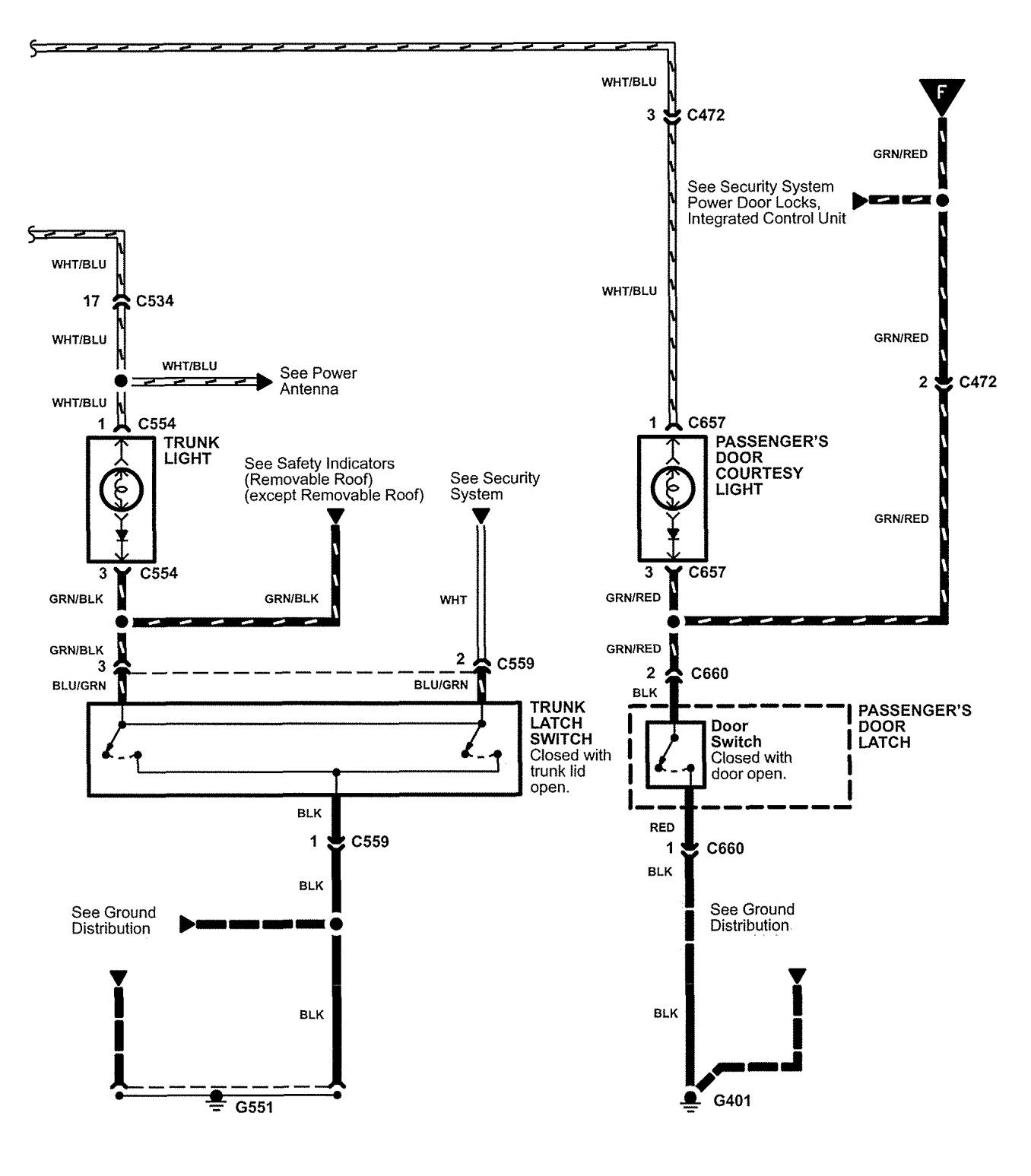

Acura NSX - wiring diagram - courtesy lamp (part 2)
Acura NSX – wiring diagram – courtesy lamp (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
