Acura NSX (2005) – wiring diagrams – brake warning system

Acura NSX (2005) – wiring diagrams – brake warning system

Year of productions:  2005

Brake warning system

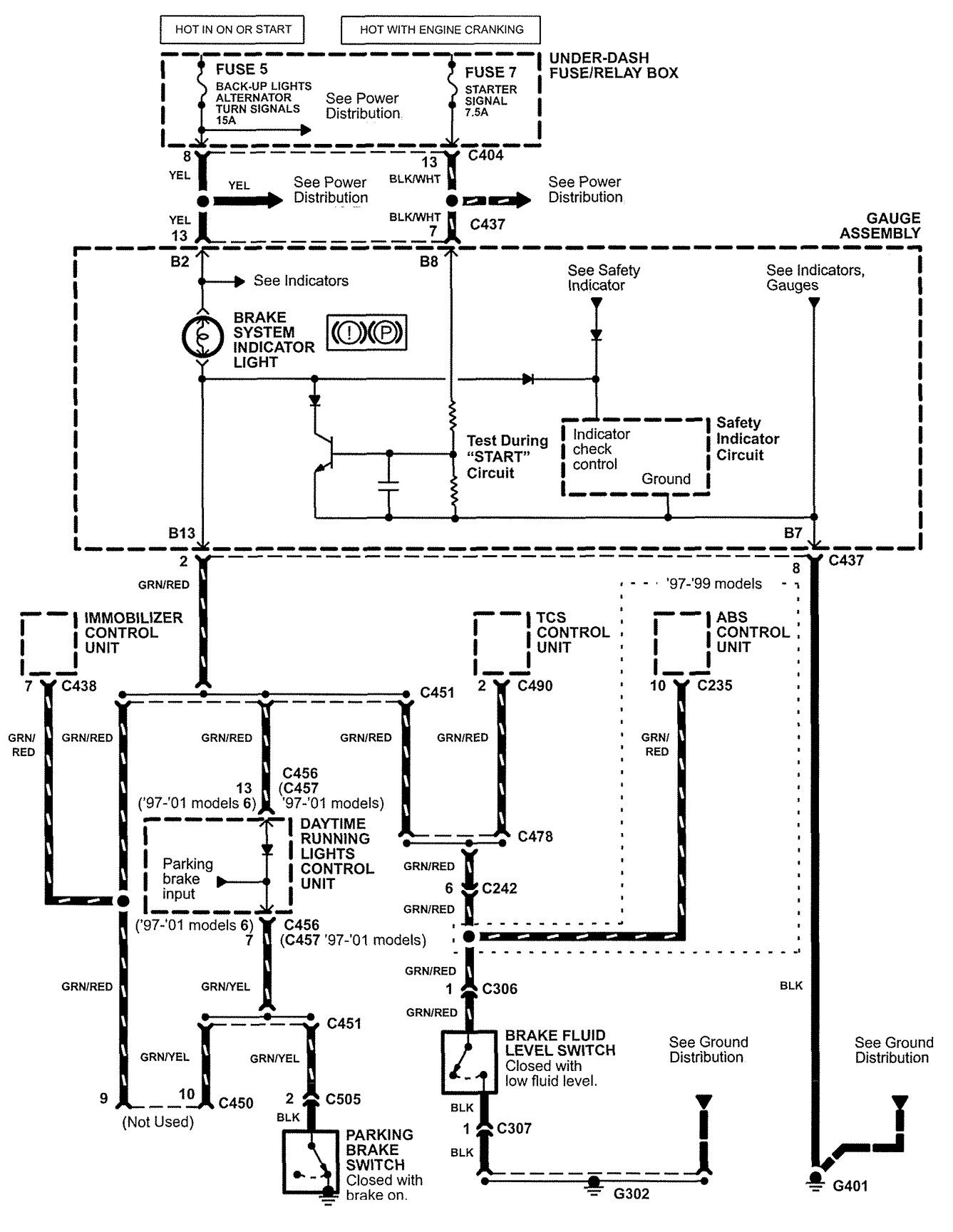

Version 1

Acura NSX - wiring diagram - brake warning system
Acura NSX – wiring diagram – brake warning system

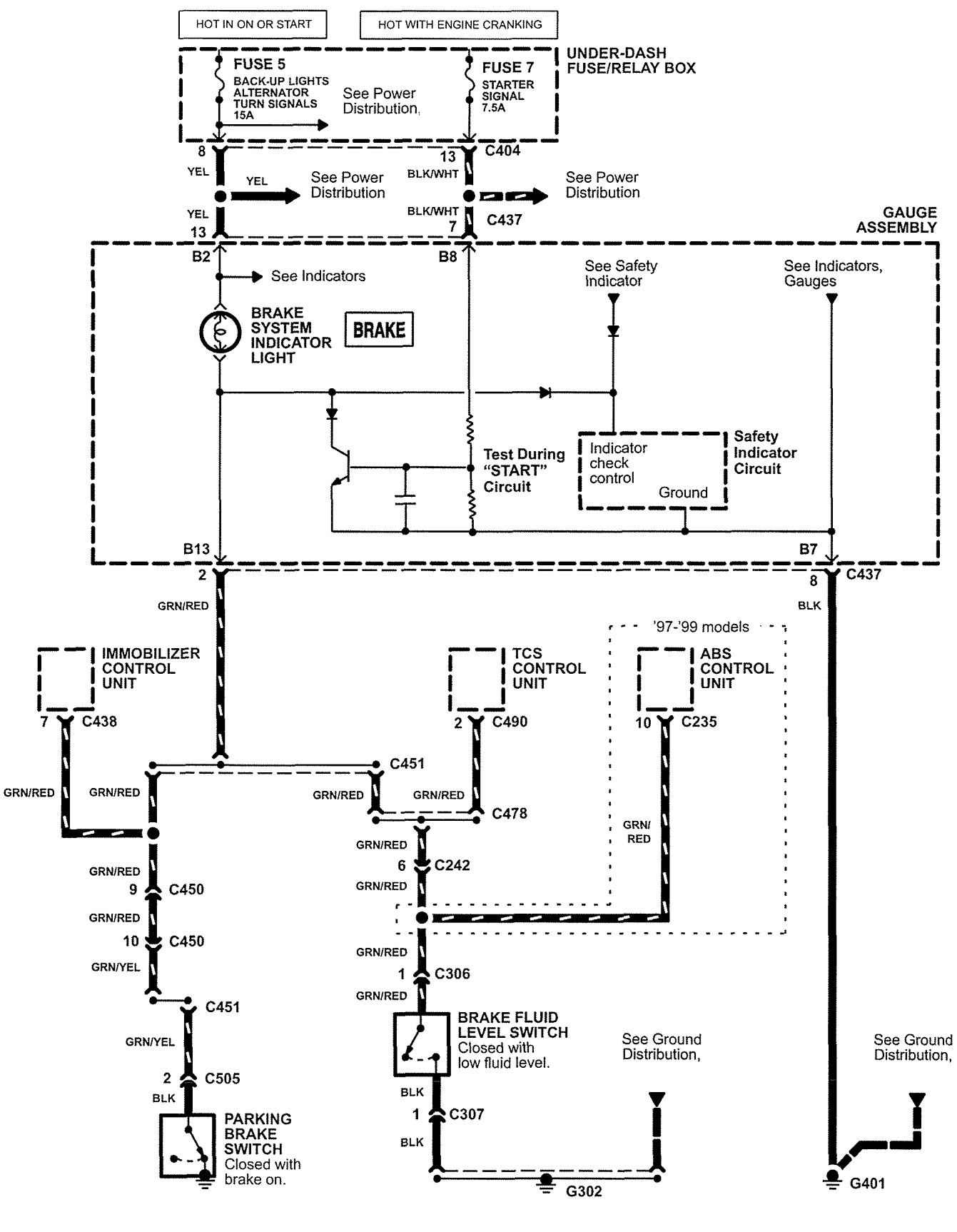

Version 2

Acura NSX - wiring diagram - brake warning system
Acura NSX – wiring diagram – brake warning system

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
