Acura NSX (1997 – 2005) – wiring diagrams – transmission controls

Acura NSX (1997 – 2005) – wiring diagrams – transmission controls

Year of productions:  1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005

Transmission controls

Acura NSX - wiring diagram - transmission controls (part 1)
Acura NSX – wiring diagram – transmission controls (part 1)
Acura NSX - wiring diagram - transmission controls (part 2)
Acura NSX – wiring diagram – transmission controls (part 2)
Acura NSX - wiring diagram - transmission controls (part 3)
Acura NSX – wiring diagram – transmission controls (part 3)
Acura NSX - wiring diagram - transmission controls (part 4)
Acura NSX – wiring diagram – transmission controls (part 4)
Acura NSX - wiring diagram - transmission controls (part 5)
Acura NSX – wiring diagram – transmission controls (part 5)
Acura NSX - wiring diagram - transmission controls (part 6)
Acura NSX – wiring diagram – transmission controls (part 6)

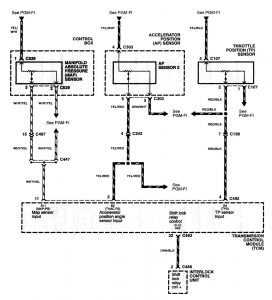

Acura NSX - wiring diagram - transmission controls (part 7)
Acura NSX – wiring diagram – transmission controls (part 7)
Acura NSX - wiring diagram - transmission controls (part 8)
Acura NSX – wiring diagram – transmission controls (part 8)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
