Acura MDX (2001) – wiring diagrams – wiper/washer

Acura MDX (2001) – wiring diagrams – wiper/washer

Year of production:  2001

Wiper/washer

Version 1

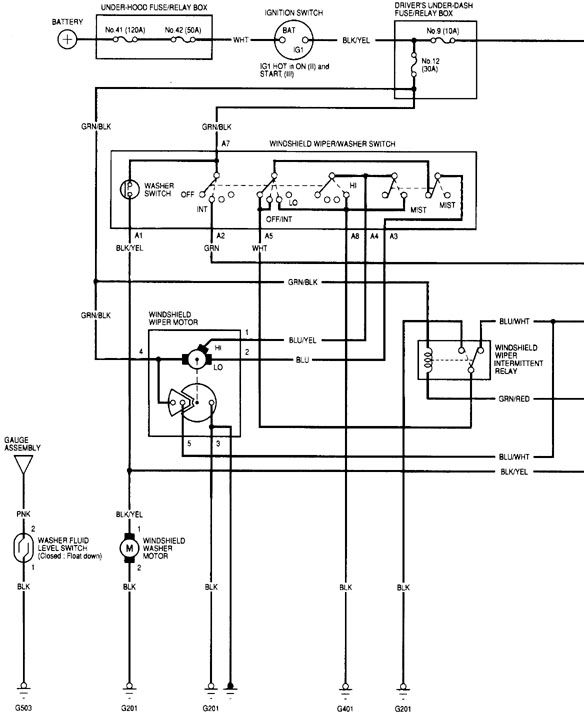

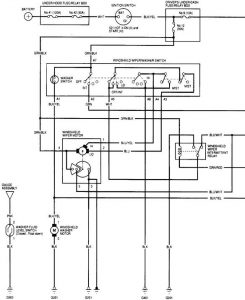

Acura MDX - wiring diagram - wiper/washer (part 1)
Acura MDX – wiring diagram – wiper/washer (part 1)

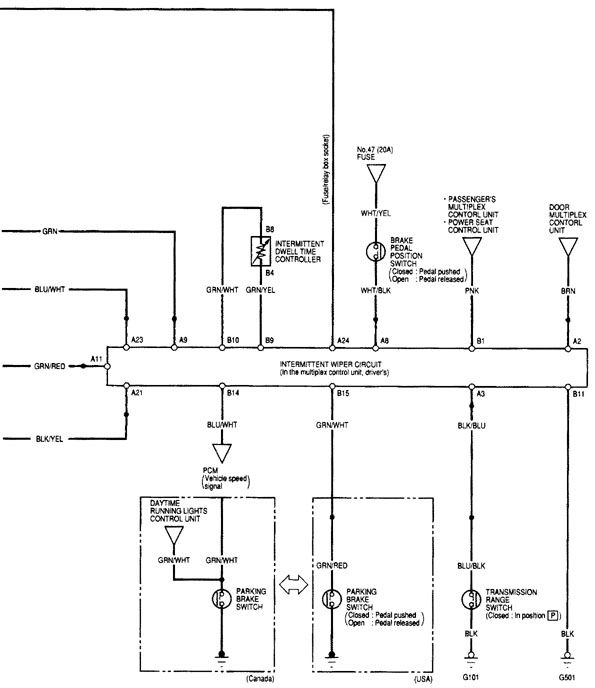

Acura MDX - wiring diagram - wiper/washer (part 2)
Acura MDX – wiring diagram – wiper/washer (part 2)

Version 2

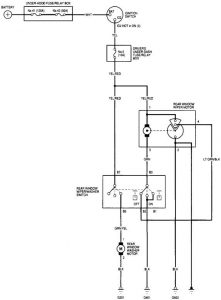

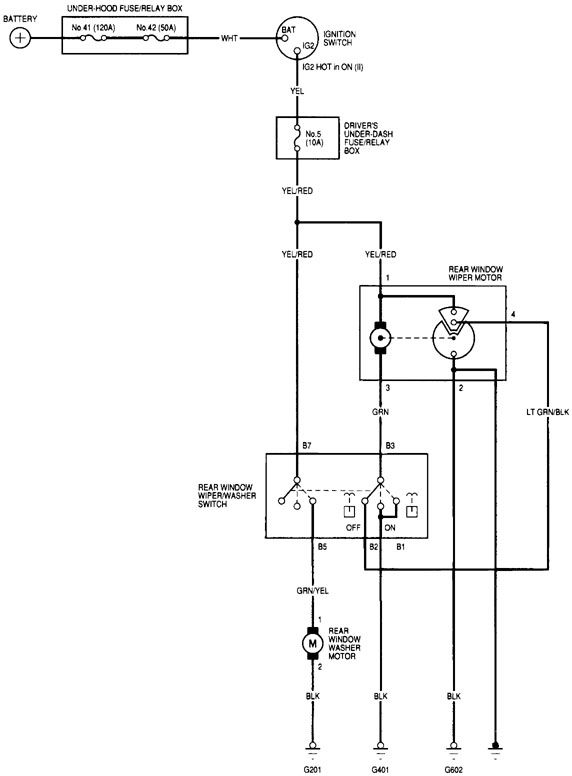

Acura MDX - wiring diagram - wiper/washer
Acura MDX – wiring diagram – wiper/washer

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
