Acura MDX (2001) – wiring diagrams – differential

Acura MDX (2001) – wiring diagrams – differential

Year of production:  2001

Differential

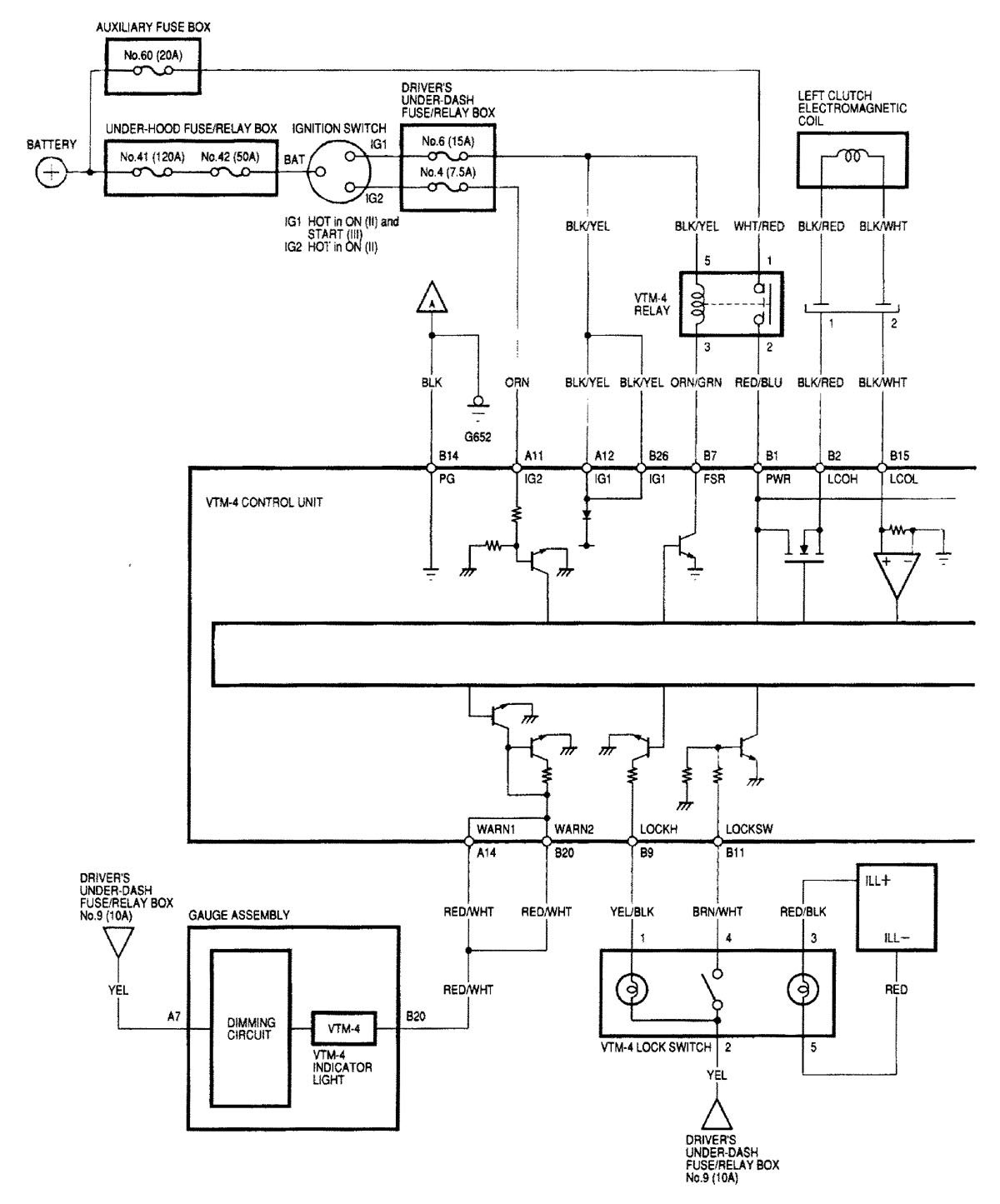

Acura MDX - wiring diagram - differential (part 1)

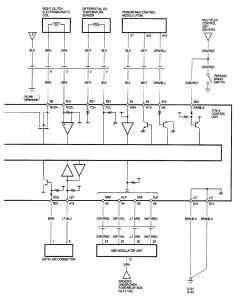

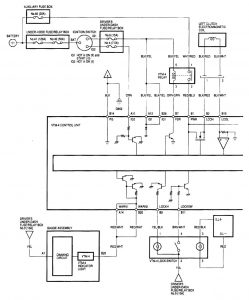

Acura MDX – wiring diagram – differential (part 1)
Acura MDX - wiring diagram - differential (part 2)

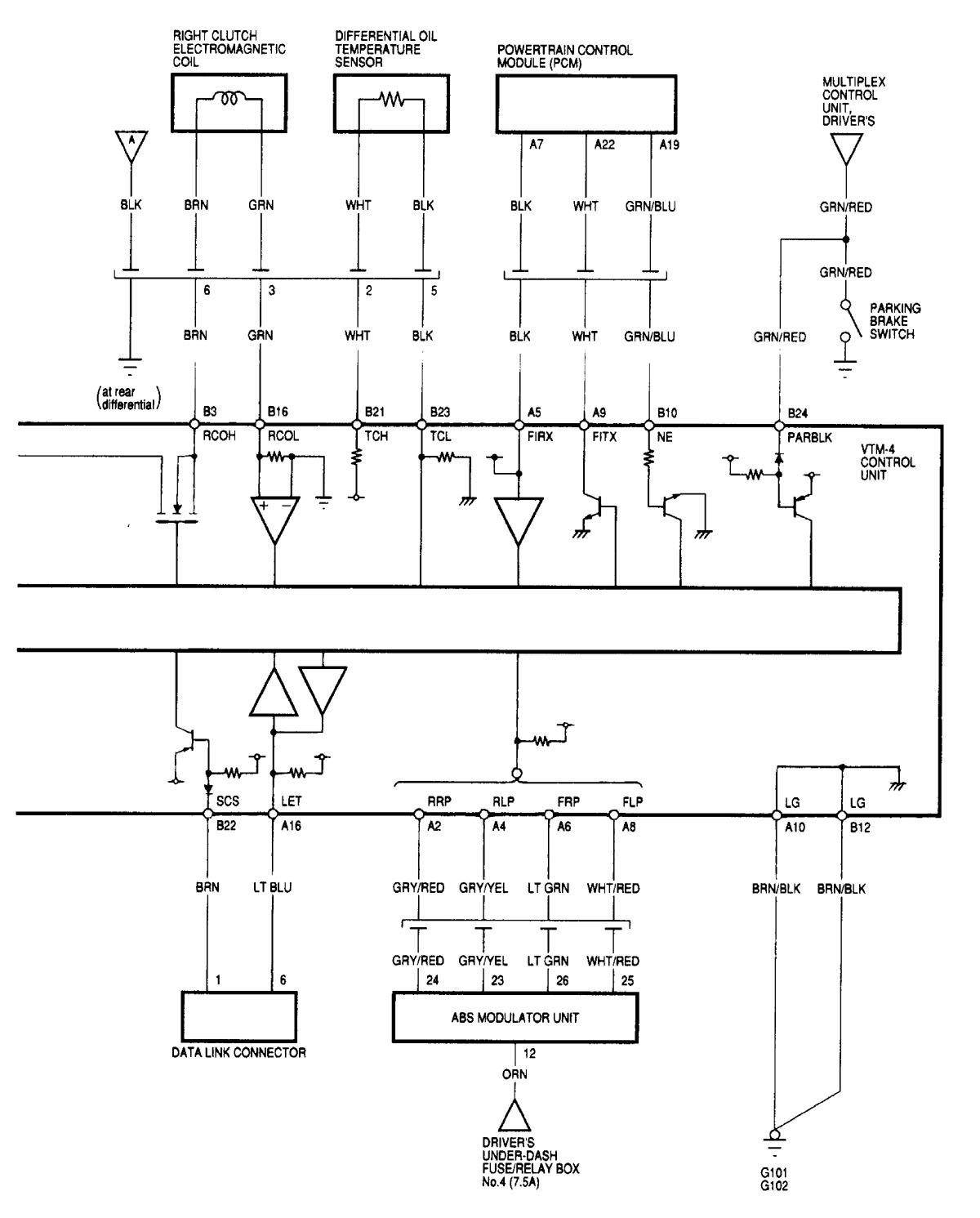

Acura MDX – wiring diagram – differential (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
