Brake controls

Acura MDX  -wiring diagram - brake controls (part 1)
Acura MDX -wiring diagram – brake controls (part 1)

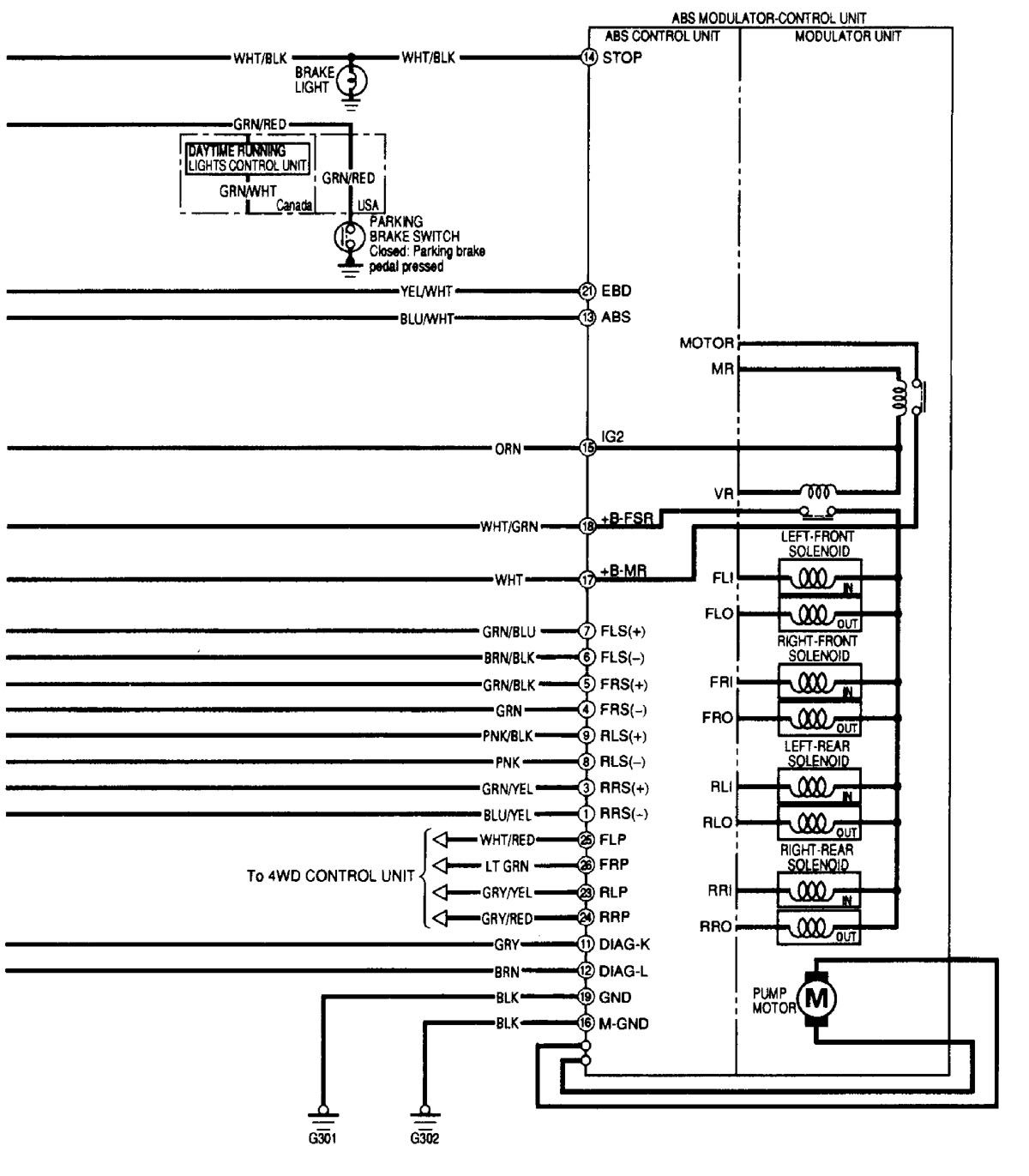

Acura MDX  -wiring diagram - brake controls (part 2)
Acura MDX -wiring diagram – brake controls (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
