Acura Legend (1994) – wiring diagram – console lamp

Acura Legend (1994) – wiring diagram – console lamp

Year of productions:  1994

Console lamp

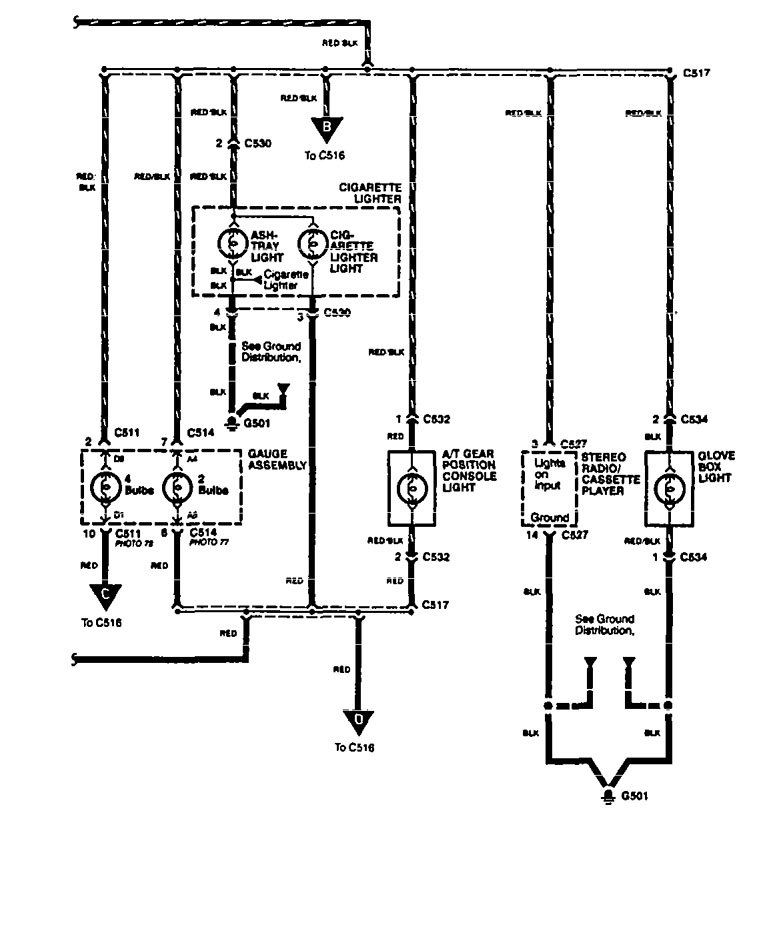

Version 1

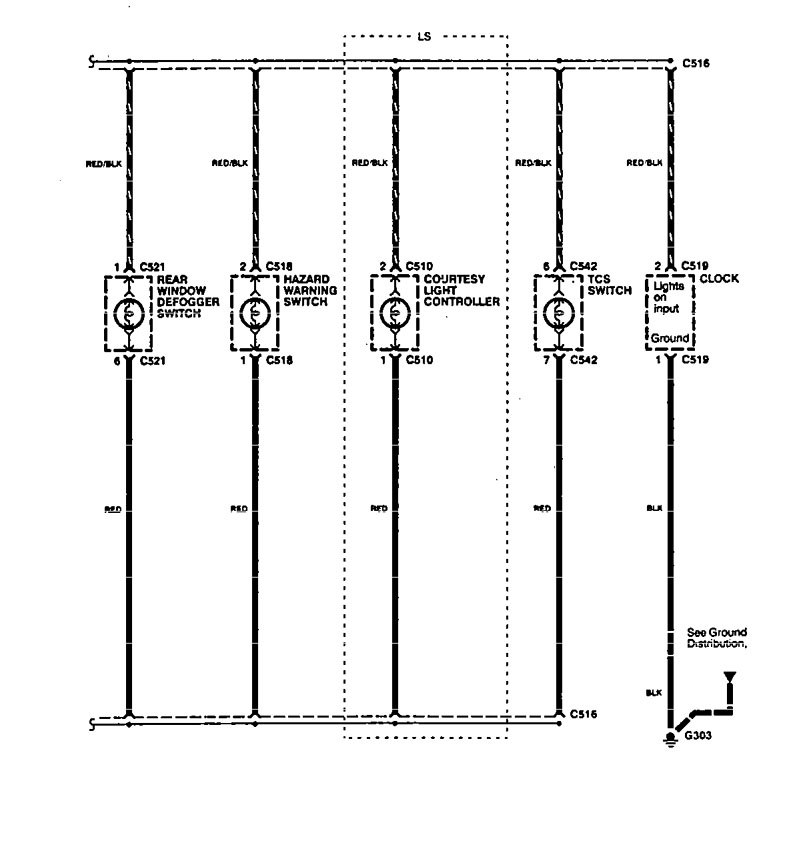

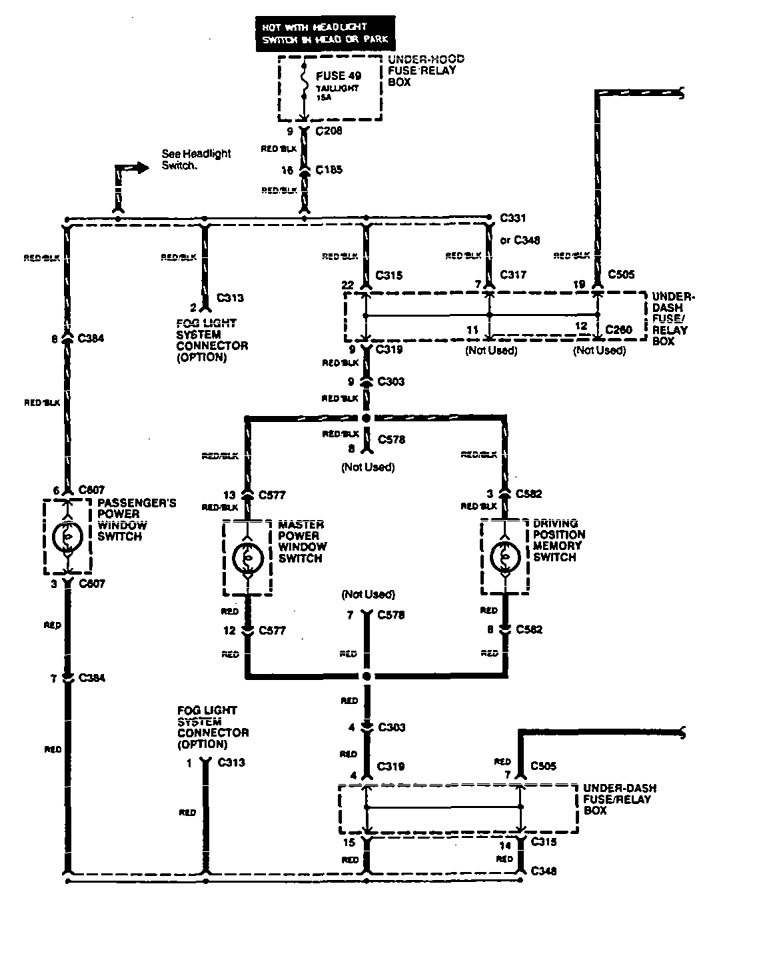

Acura Legend – wiring diagram – console lamp (part 1)
Acura Legend – wiring diagram – console lamp (part 2)

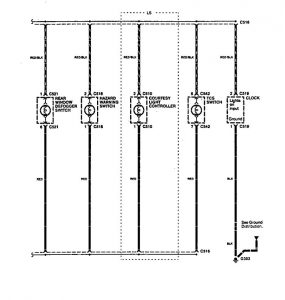

Acura Legend – wiring diagram – console lamp (part 3)

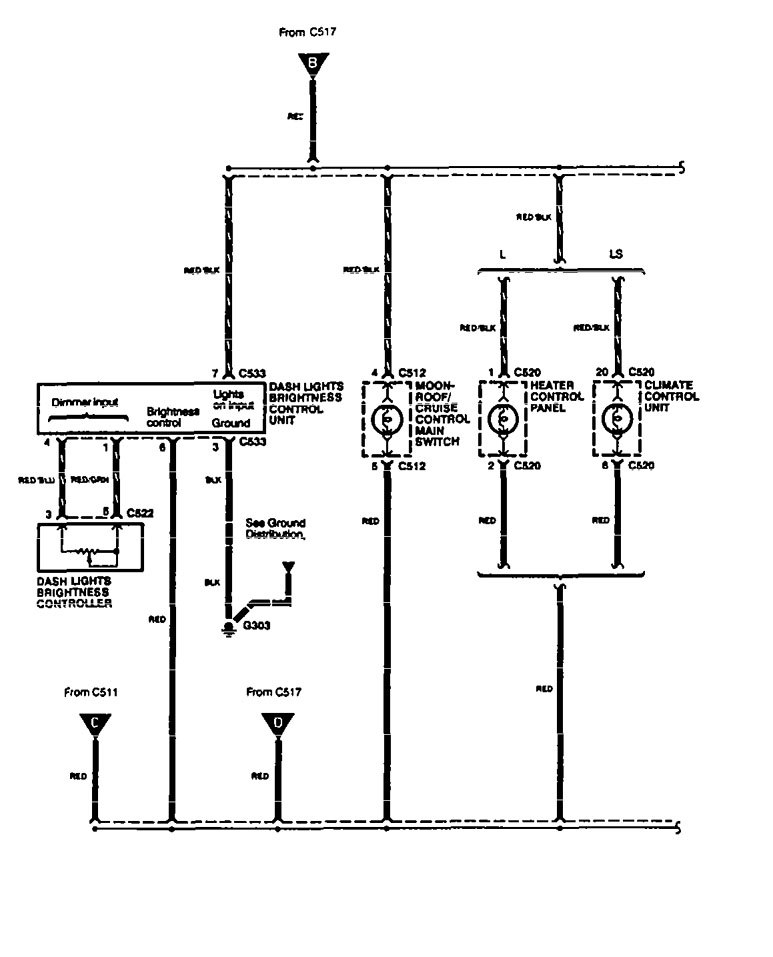

Acura Legend – wiring diagram – console lamp (part 4)

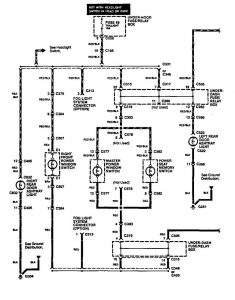

Version 2

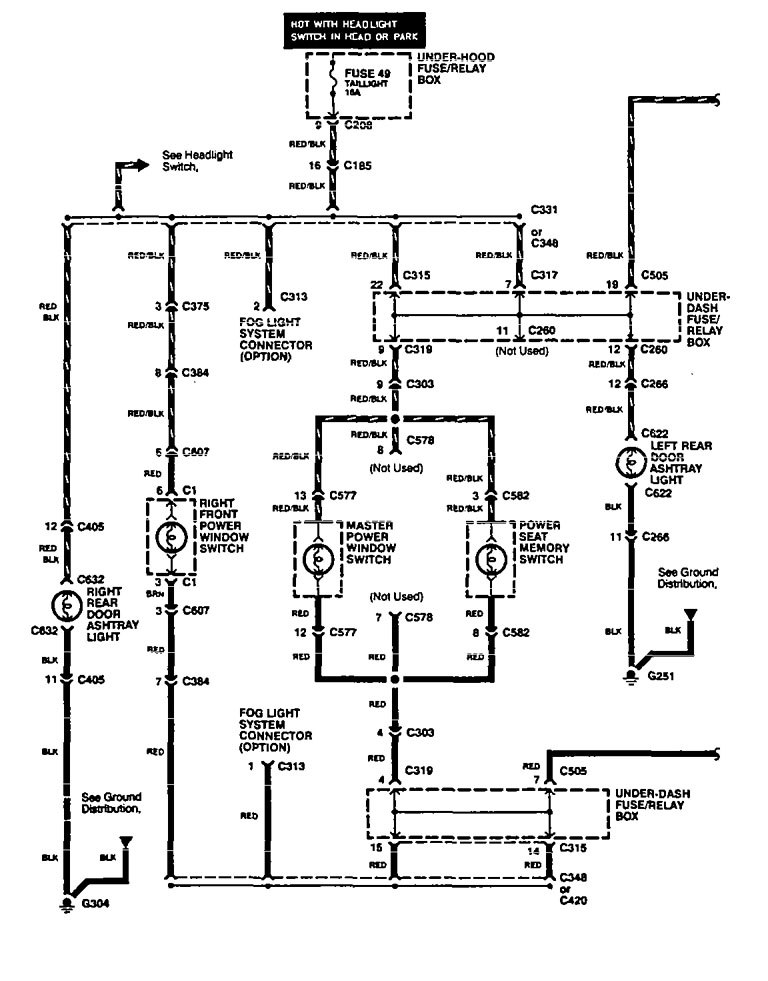

Acura Legend – wiring diagram – console lamp (part 1)

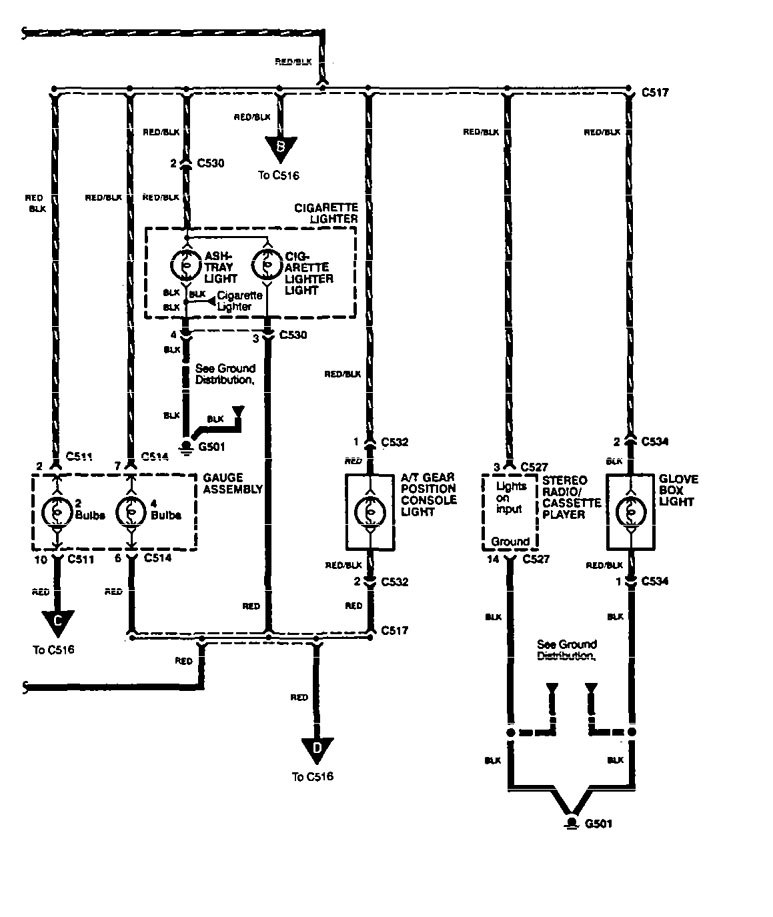

Acura Legend – wiring diagram – console lamp (part 2)

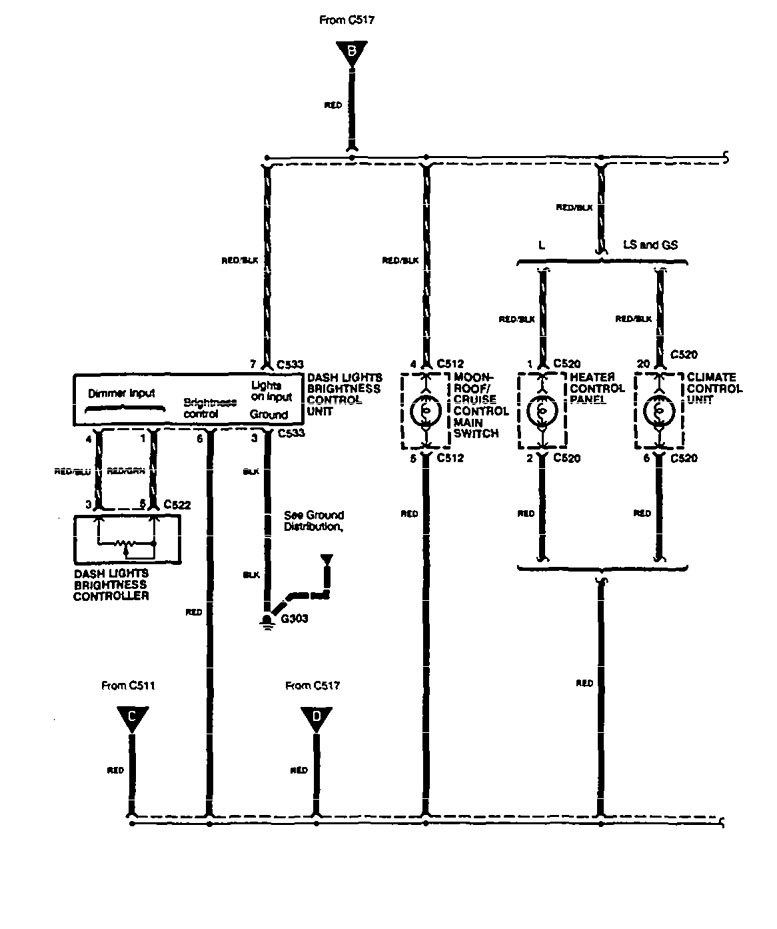

Acura Legend – wiring diagram – console lamp (part 3)

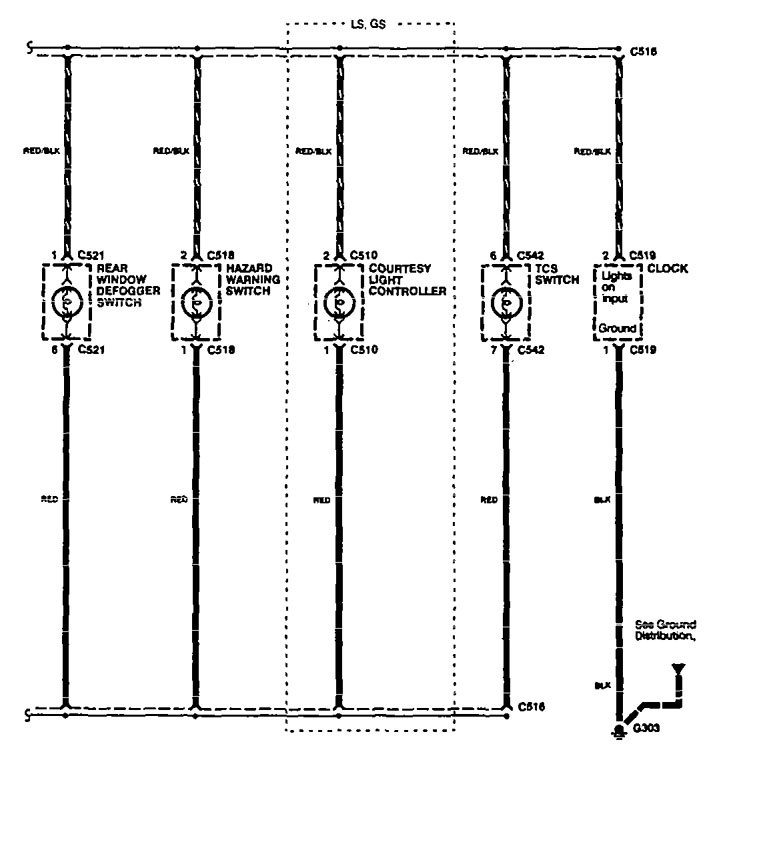

Acura Legend – wiring diagram – console lamp (part 4)



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
