Acura Legend (1990) – wiring diagram – seat belts

Acura Legend (1990) – wiring diagram – seat belts

Year of productions:  1990

Seat belts

Version 1

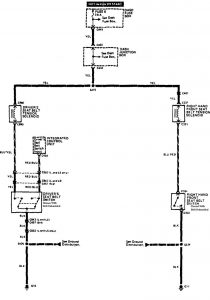

Acura Legend – wiring diagram – seat belts (part 1)

Version 2

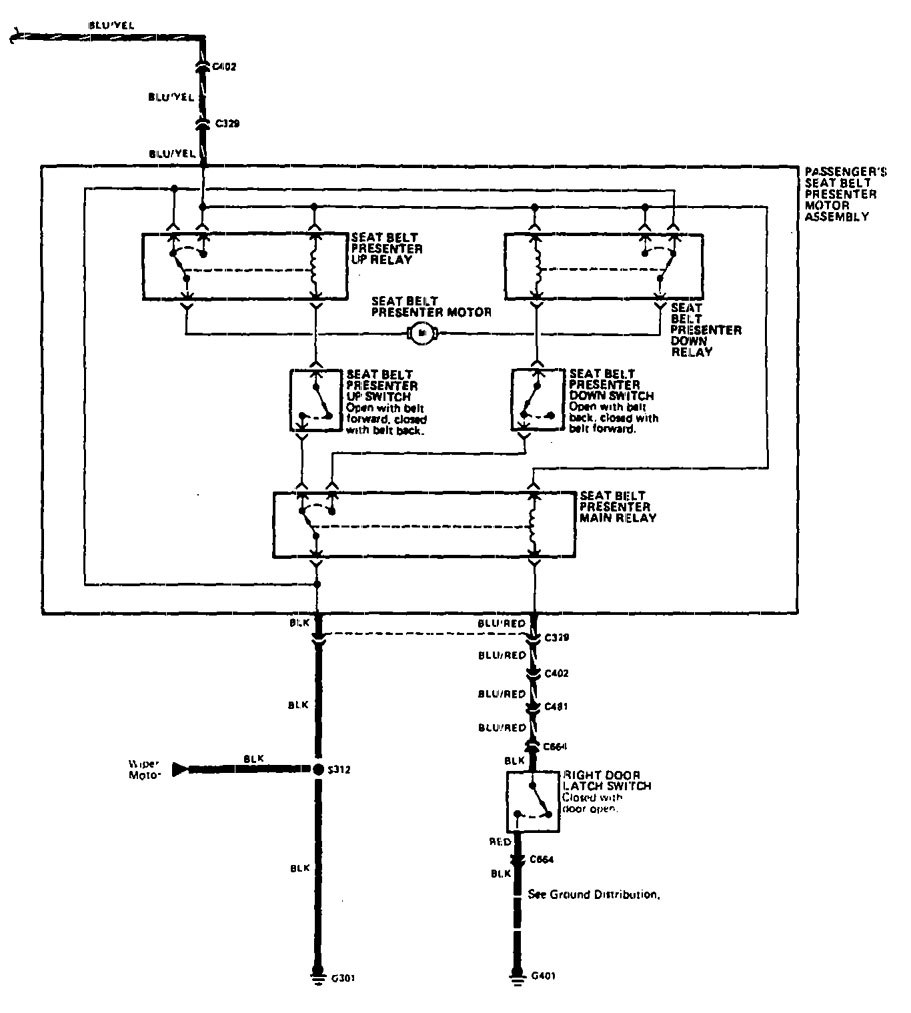

Acura Legend – wiring diagram – seat belts (part 1)
Acura Legend – wiring diagram – seat belts (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
