Acura Integra (1997) – wiring diagrams – power windows

Acura Integra (1997) – wiring diagrams – power windows

Year of productions: 1997

Power windows

Version 1

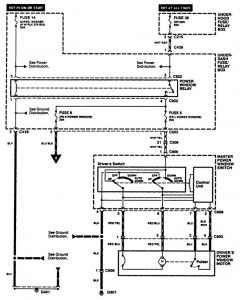

Acura Integra – wiring diagram – power windows (part 1)

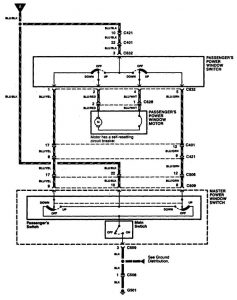

Acura Integra – wiring diagram – power windows (part 2)

Version 2

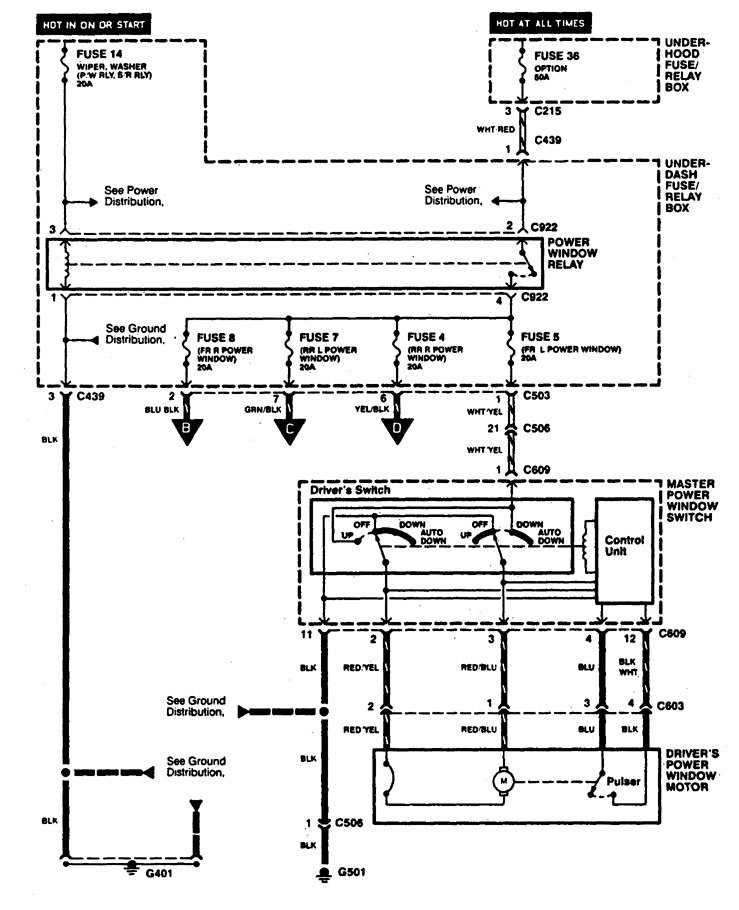

Acura Integra – wiring diagram – power windows (part 1)

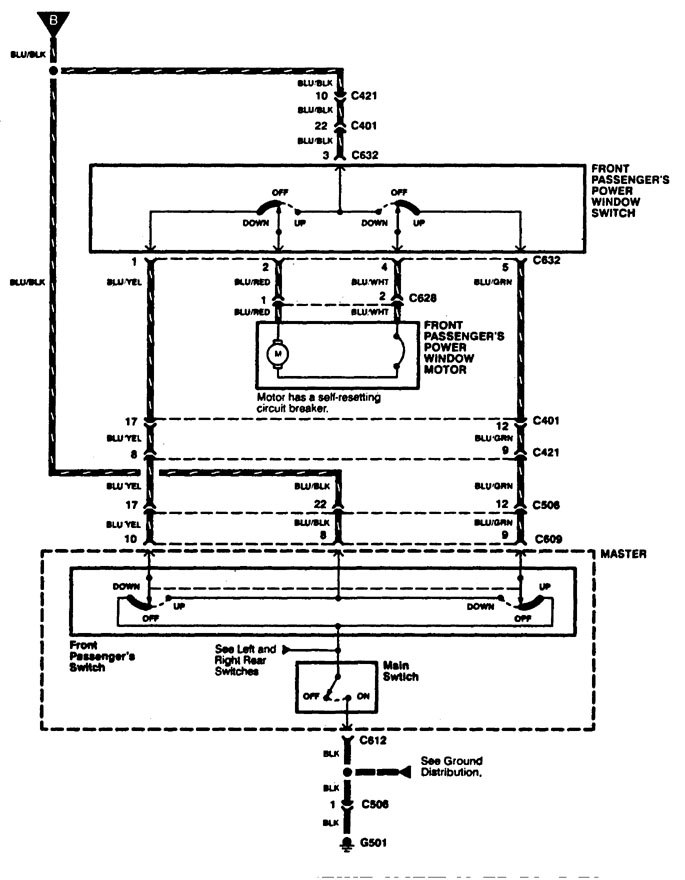

Acura Integra – wiring diagram – power windows (part 2)

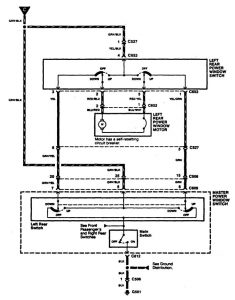

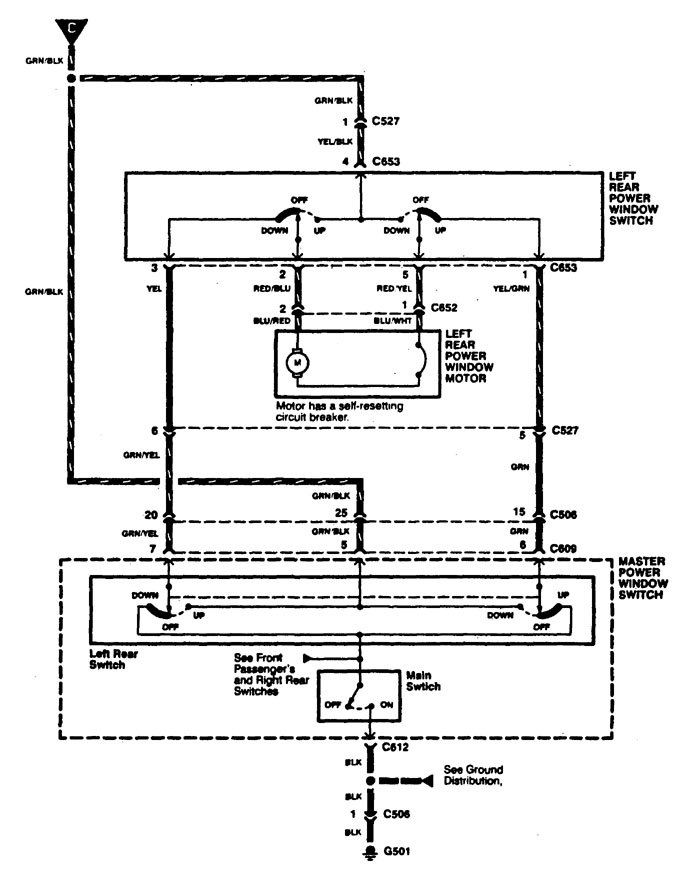

Acura Integra – wiring diagram – power windows (part 3)

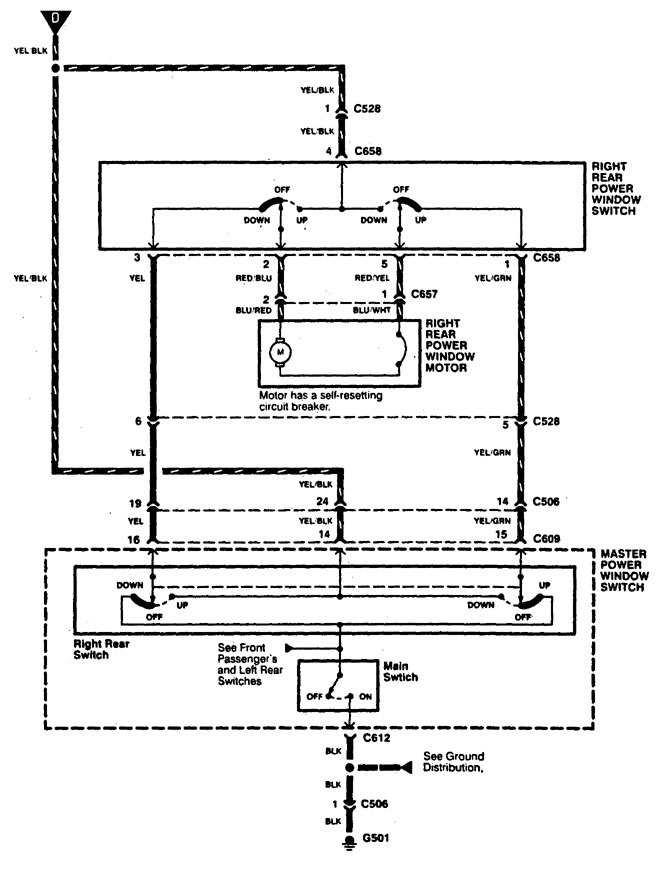

Acura Integra – wiring diagram – power windows (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
