Acura Integra (1994) – wiring diagrams – reading lamp

Acura Integra (1994) – wiring diagrams – reading lamp

Year of productions: 1994

Reading lamp

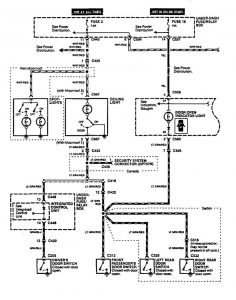

Acura Integra – wiring diagram – reading lamp (part 1)
Acura Integra – wiring diagram – reading lamp (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
