Acura Integra (1990) – wiring diagrams – brake warning system

Acura Integra (1990) – wiring diagrams – brake warning system

Year of productions: 1990

Brake warning system

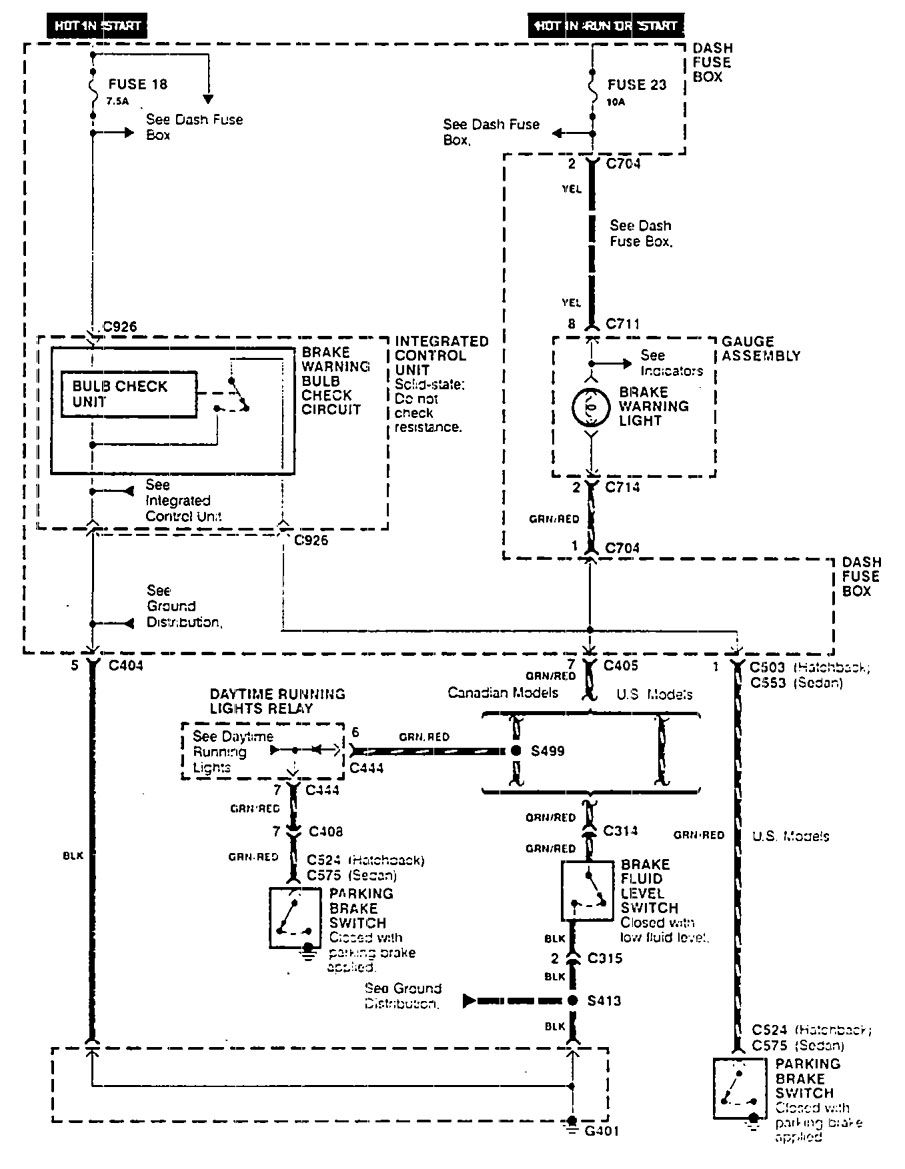

Acura Integra – wiring diagram – brake warning system

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
