Acura CL (1997) – wiring diagrams – wiper/washer

Acura CL (1997) – wiring diagrams – wiper/washer

Year of productions:  1997

Wiper/washer

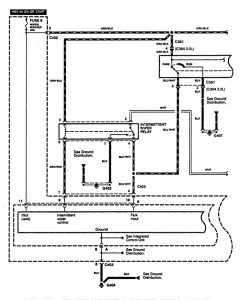

Acura CL - wiring diagram - wiper/washer (part 1)
Acura CL – wiring diagram – wiper/washer (part 1)

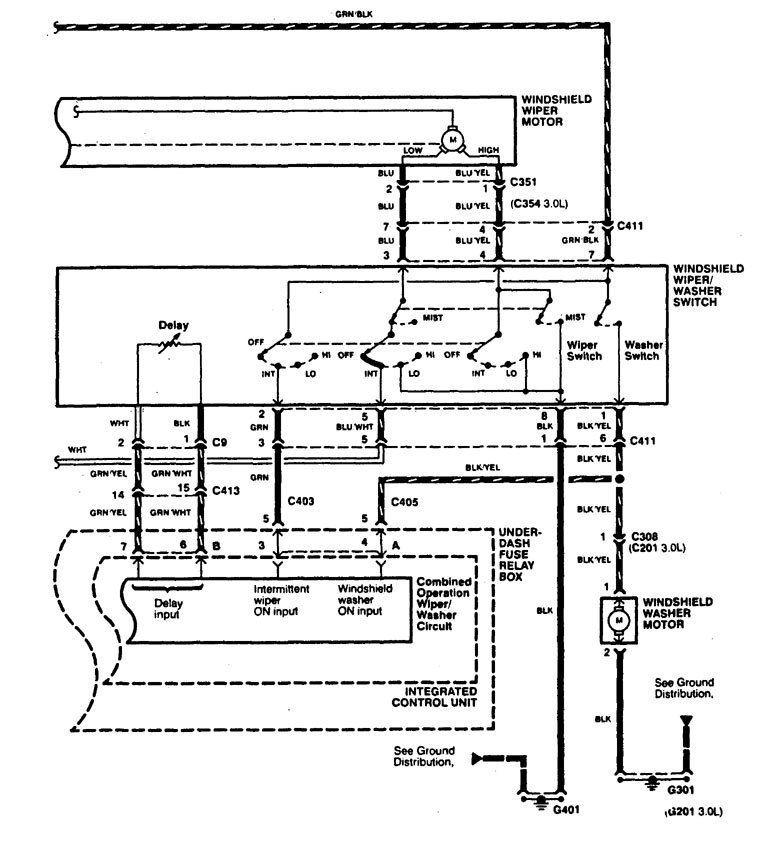

Acura CL - wiring diagram - wiper/washer (part 2)
Acura CL – wiring diagram – wiper/washer (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
