Acura CL (1997) – wiring diagrams – sun roof

Acura CL (1997) – wiring diagrams – sun roof

Year of productions:  1997

Sun roof

Acura CL - wiring diagram - sun roof (part 1)
Acura CL – wiring diagram – sun roof (part 1)

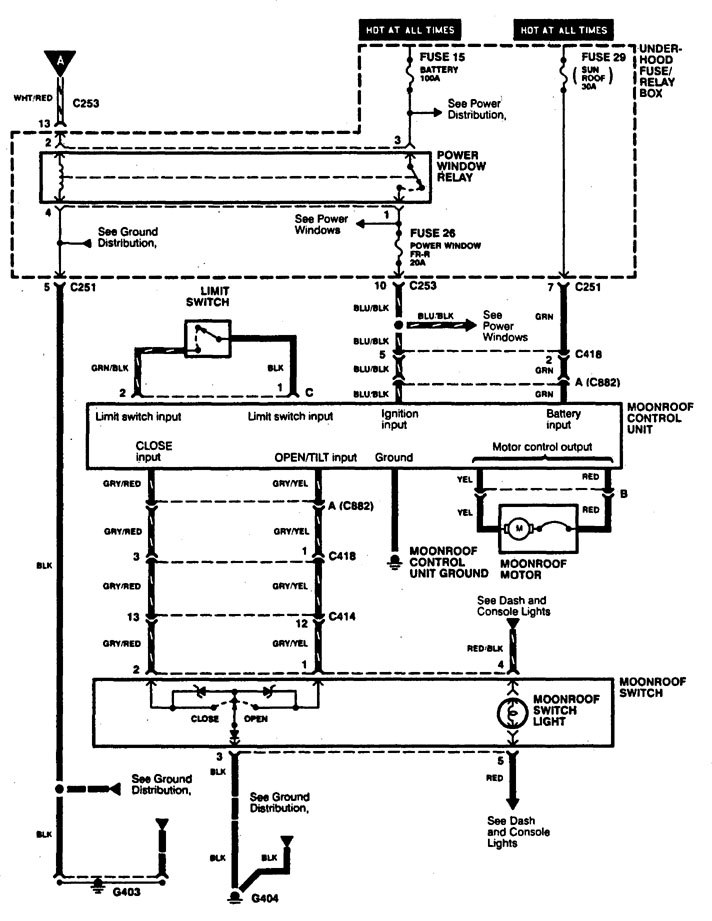

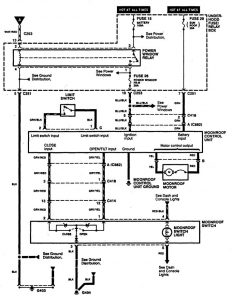

Acura CL - wiring diagram - sun roof (part 2)
Acura CL – wiring diagram – sun roof (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
