Acura CL (1997) – wiring diagrams – starting

Acura CL (1997) – wiring diagrams – starting

Year of productions:  1997

Starting

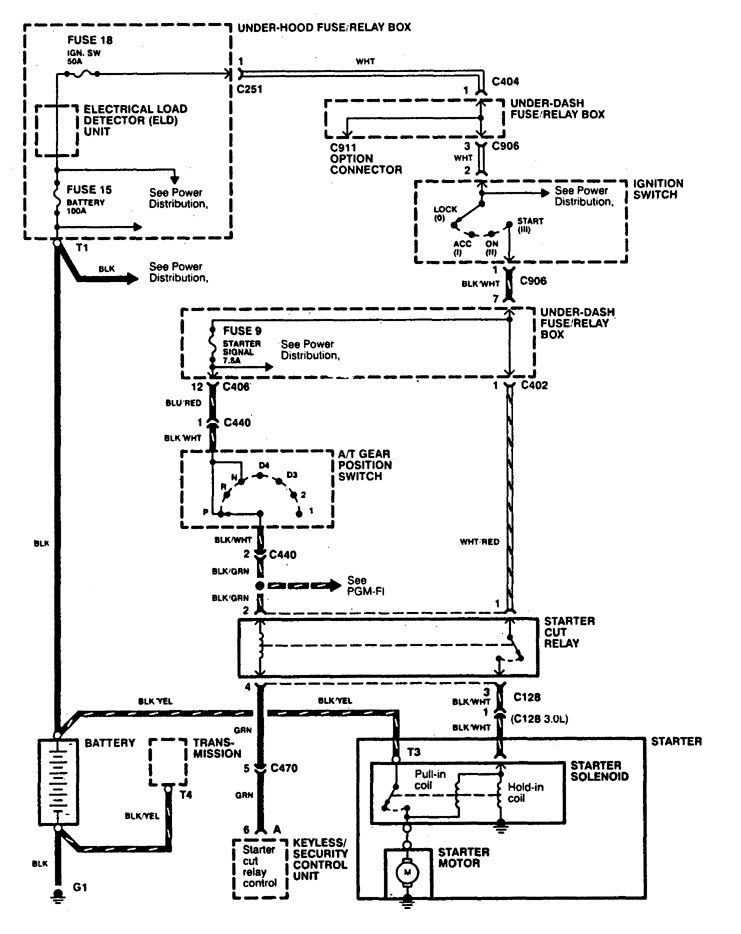

Version 1

Acura CL - wiring diagram - starting
Acura CL – wiring diagram – starting

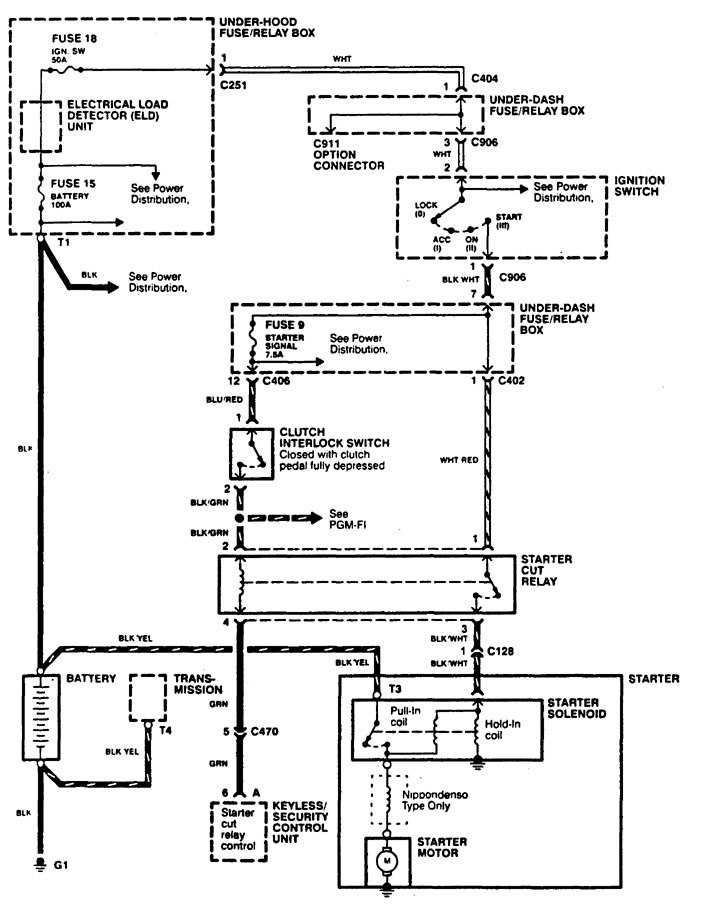

Version 2

Acura CL - wiring diagram - starting
Acura CL – wiring diagram – starting

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
