Acura CL (1997) – wiring diagrams – power windows

Acura CL (1997) – wiring diagrams – power windows

Year of productions:  1997

Power windows

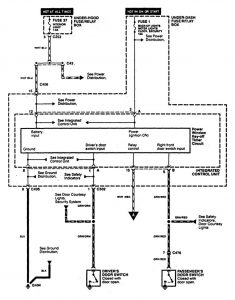

Acura CL - wiring diagram - power windows (part 1)
Acura CL – wiring diagram – power windows (part 1)

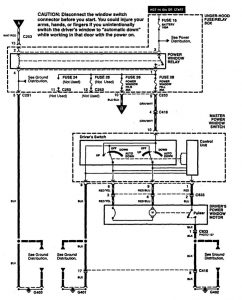

Acura CL - wiring diagram - power windows (part 2)
Acura CL – wiring diagram – power windows (part 2)

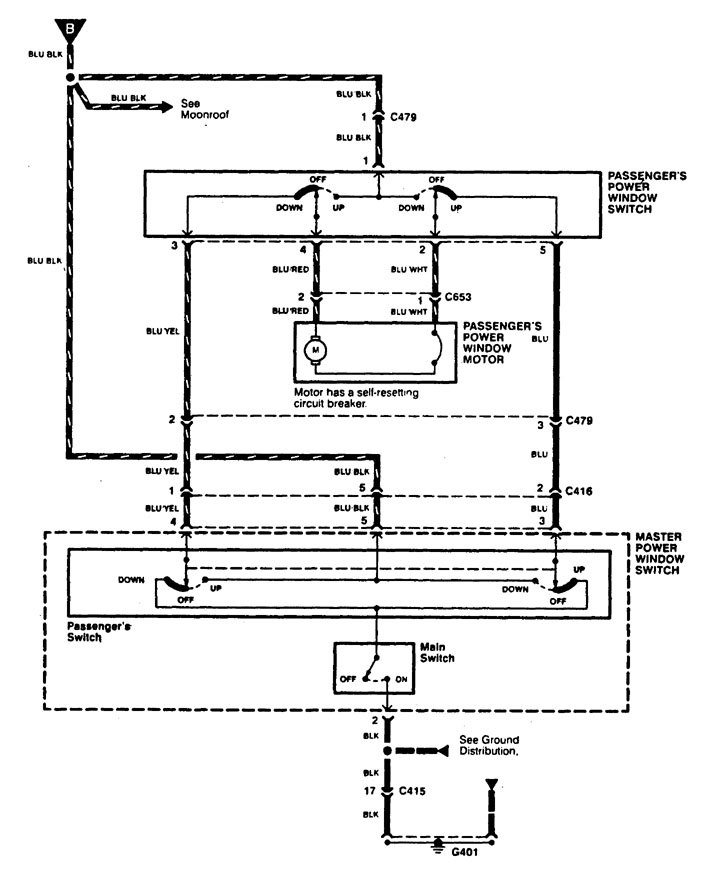

Acura CL - wiring diagram - power windows (part 3)
Acura CL – wiring diagram – power windows (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
