Year of productions:  1997

HVAC Controls

Version 1

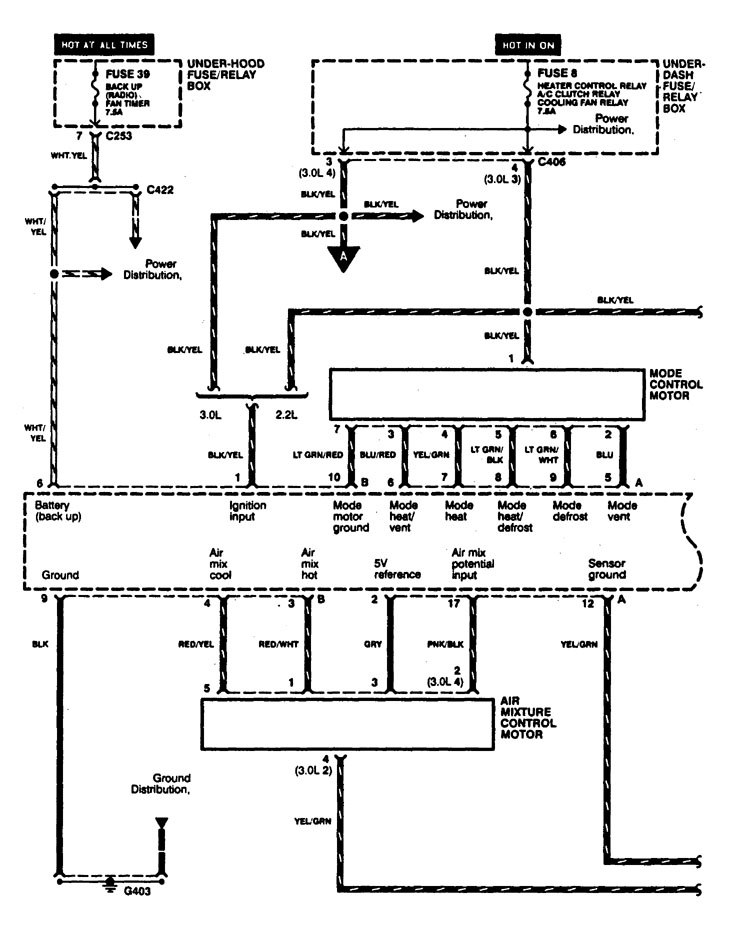

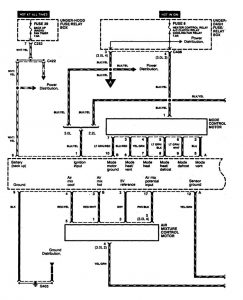

Acura CL - wiring diagram - HVAC controls (part 1)
Acura CL – wiring diagram – HVAC controls (part 1)

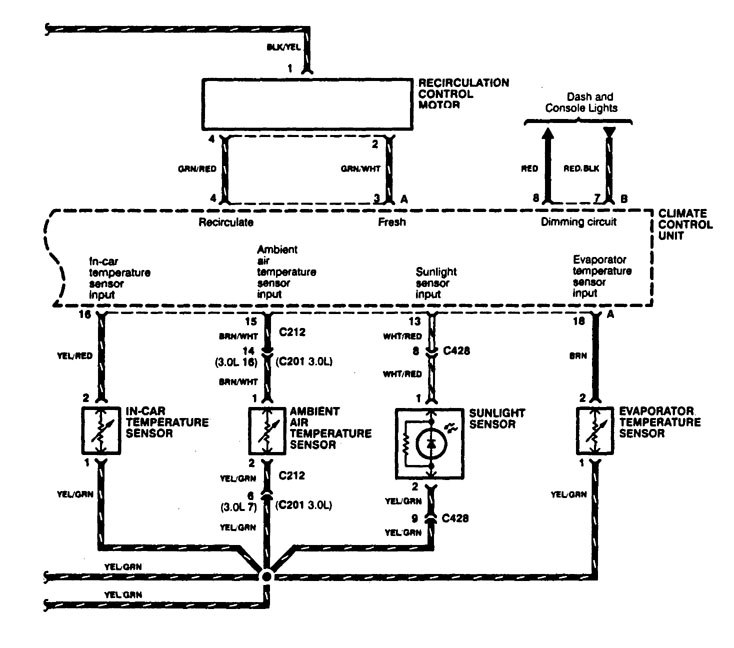

Acura CL - wiring diagram - HVAC controls (part 2)
Acura CL – wiring diagram – HVAC controls (part 2)

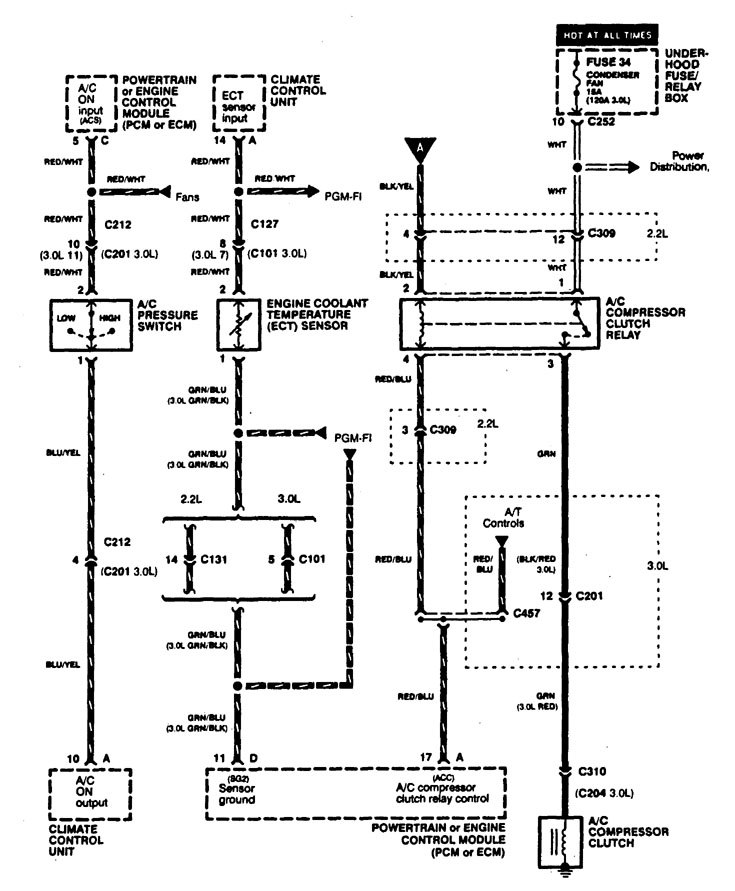

Acura CL - wiring diagram - HVAC controls (part 3)
Acura CL – wiring diagram – HVAC controls (part 3)

Version 2

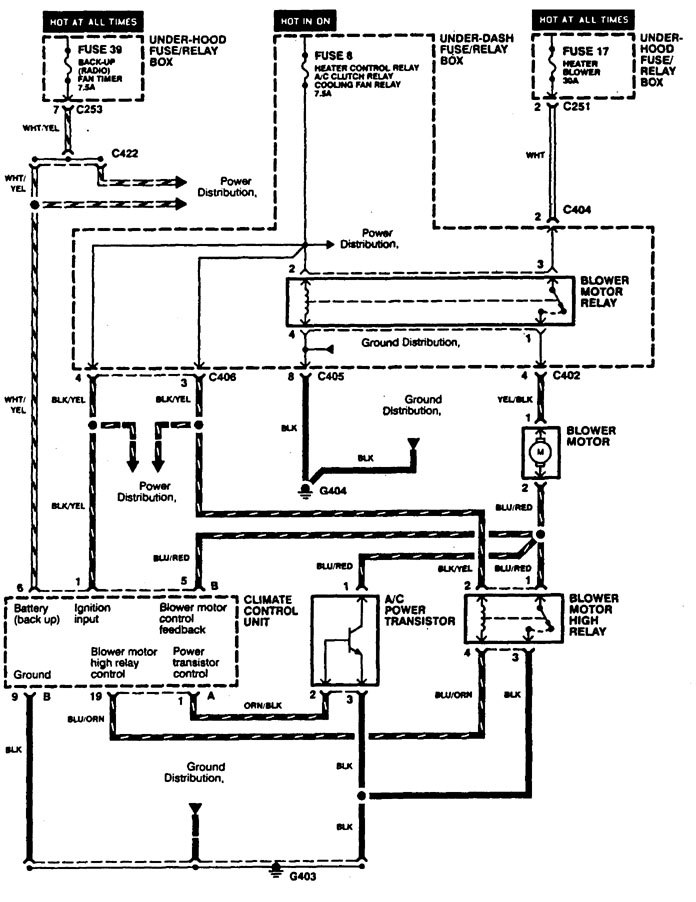

Acura CL - wiring diagram - HVAC controls
Acura CL – wiring diagram – HVAC controls

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
