Acura CL (1997 – 1999) – wiring diagrams – heated mirror

Acura CL (1997 – 1999) – wiring diagrams – heated mirror

Year of productions:  1997, 1998, 1999

Heated mirror

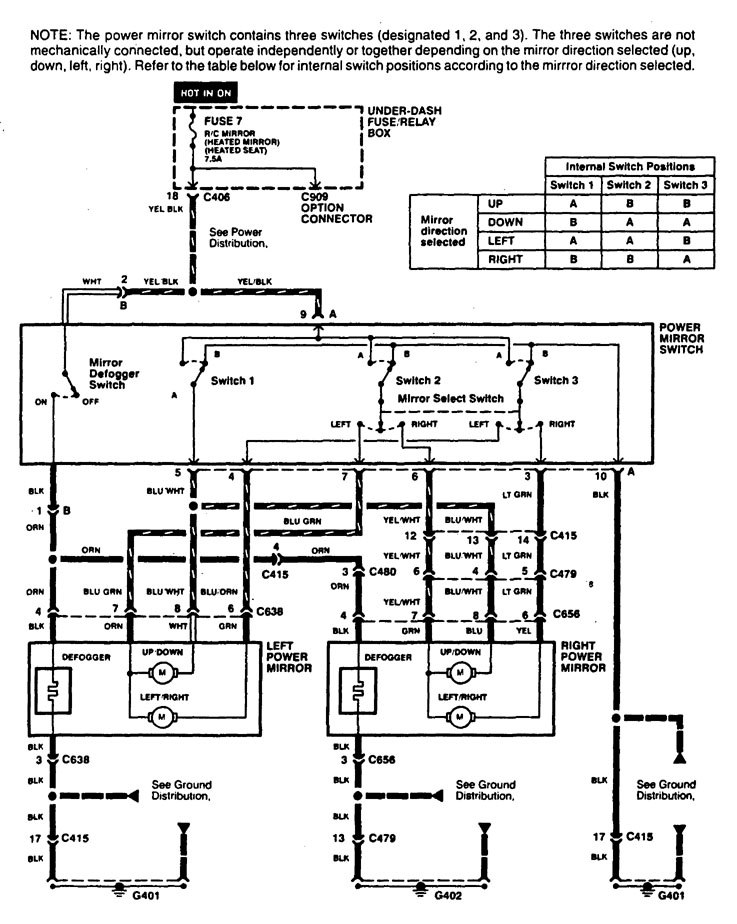

Acura CL - wiring diagram - heated mirror
Acura CL – wiring diagram – heated mirror

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
