Abarth Punto Evo (2010 – 2011) – bulbs specification

Abarth Punto Evo (2010 – 2011) – bulbs specification

Year of production: 2010, 2011

Types of bulbs

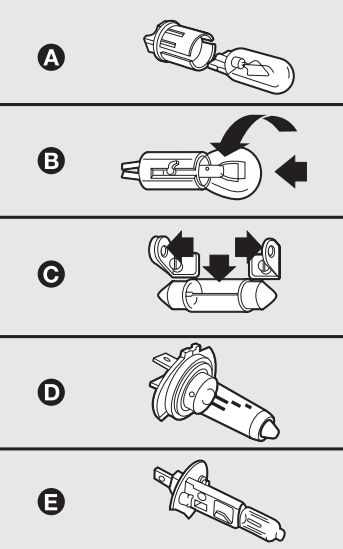

Abarth Punto Evo - bulbs
Abarth Punto Evo – bulbs

A – Glass bulbs: clipped into position. Pull to remove

B – Bayonet type bulbs: to remove this type of bulb from its holder, press the bulb and turn it anticlockwise

C – Tubular bulbs: release them from their contacts to remove

D-E – Halogen bulbs: to remove the bulb, release the clip holding the bulb in place

Bulbs Figure Type Power
Dipped/main beam headlights D H4 55W/60W
Daytime running lights A W21W 21W
Front side lights A W5W 5W
Front fog lights (for versions/markets where available) H11 55W
Front direction indicators B PY21W 21W
Side direction indicators A WY5W 5W
Rear direction indicators B PY21W 21W
Rear side lights LED
Brake lights B P21W 21W
Third brake light (additional brake light) B W2,3W 2,3W
Reversing lights W16W 16W
Rear fog lights W16 16W
Number plate lights A W5W 5W
Front courtesy light with spot lights C C10W 10W
Boot light A W5W 5W
Courtesy light C C5W 5W

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
