Abarth Grande Punto (2007 – 2010) – fuse box diagram

Abarth Grande Punto (2007 – 2010) – fuse box diagram

Year of production: 2007, 2008, 2009, 2010

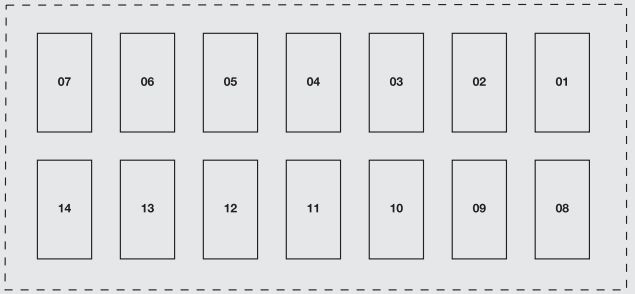

Fuse box on dashboard

Abarth Grande Punto - wiring diagram - fuse box diagram - dashboard
Abarth Grande Punto – wiring diagram – fuse box diagram – dashboard
Users Fuse Ampere rating [A]
Free 01
Power + battery instrument panel, EOBD diagnostic socket 02 10
Power + battery sound system, control unit for hands free kit with voice recognition and Bluetooth® technology, control unit for Hi-Fi audio system 03 15
Power + battery ignition switch 04 7,5
Power for windscreen/rear window washer motor pump 05 20
Power for tailgate actuator 05 15
Power for door lock motor actuators, dead lock motor actuators 07 20
Free 08
Power for front ceiling light, rear ceiling light, boot light, puddle light, courtesy lights 09 10
Power + key electric power steering system control unit 10 7,5
Power + key instrument panel, switch on brake pedal (brake light control circuit), switch on clutch pedal 11 7,5
Power + key brake system control unit, VDC system, switch on brake pedal 12 7,5
Power + key air bag system control unit 13 10
Power + key side button panel light, steering wheel control lights, central button panel (ASR control and led) 14 7,5
Power + key button panel light on ceiling light, front seat warming button panel (system control and led), rain sensor 14 7,5
Power + key power sunroof control unit, tyre pressure sensor control unit, control unit for hands free kit with voice recognition and Bluetooth® technology, parking sensor system control unit 14 7,5

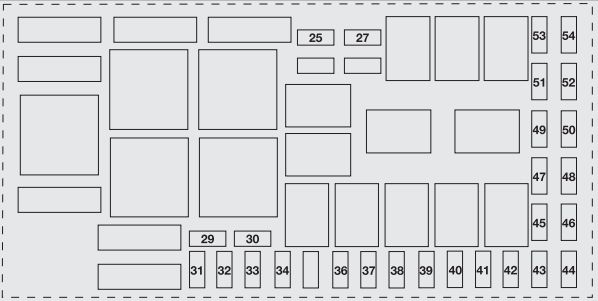

Fuse box in engine compartment

Abarth Grande Punto - wiring diagram - fuse box diagram - engine compartment
Abarth Grande Punto – wiring diagram – fuse box diagram – engine compartment
Users Fuse Ampere rating [A]
Power + brake system battery (solenoid valves) 53 30
Left dipped beam power, headlight aiming device 38 10
Right dipped beam power 39 10
Left main beam power 40 10
Right main beam power 41 10
Power + key engine control unit 47 7,5
Power + key passenger’s compartment cooling unit, electronic control unit for driver’s window, power door mirrors, reversing light (1.4 8v Dualogic version) 48 7,5
Free 46
Power for engine diagnosis system secondary loads 34 15
Power for engine diagnosis system primary loads (ignition coils, injectors, engine control unit – Multijet versions) 30 15
Power for engine control unit (1.4 engine) 33 10
Power for fuel motor pump 51 15
Power for front fog lights 25 15
Power for headlight washer motor pump 27 30
Power for single tone horn 37 15
Power for conditioner compressor 42 7,5
Power for starter motor (magnet + 50) 49 30
Power for slider solenoid valve (1.4 16V engine) 29 7,5
Power + battery internal cooling control unit 54 7,5
Power + battery engine control unit 32 7,5
Power for passenger’s compartment current outlet 31 20
Power + key reversing light, glow plug control unit, flow meter, water in diesel fuel sensor 45 10
Power for electric door mirror defrosting devices 43 10
Power for front passenger’s power window motor 26 20
Power for driver’s power window motor 28 20
Free 52
Free 44

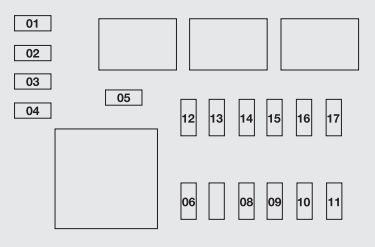

Fuse box in the boot

Abarth Grande Punto - wiring diagram - fuse box diagram - boot compartment
Abarth Grande Punto – wiring diagram – fuse box diagram – boot compartment
Users Fuse Ampere rating [A]
Free 01
Free 02
Free 03
Power for driver’s seat lumbar adjustment motor 04 10
Power for boot current outlet 05 15
Free 06
Free 07
Power for driver’s seat warming unit 08 10
Power for passenger’s seat warming unit 09 10
Power + battery power window motor on right rear door 10 20
Power + battery power window motor on left rear door 11 20
Free 12
Free 13
Free 14
Power + battery tyre pressure monitoring system control unit 15 10
Power + battery hi-fi system subwoofer 16 20
Power + battery power sunroof system 17 20

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
