Abarth 500 (2008 – 2016) – bulbs specification

Abarth 500 (2008 – 2016) – bulbs specification

Year of production: 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016

Bulb types

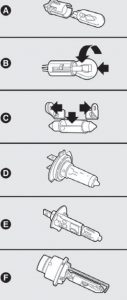

Abarth 500 - bulbs
Abarth 500 – bulbs

A – All glass bulb: clipped into place. Pull to extract

B – Bayonet bulbs: to remove this type of bulb from its holder, press the bulb and turn it anticlockwise

C – Cylindrical bulbs: release from the contacts to extract

D – Halogen bulbs: release the fastening clip from the corresponding seat to remove the lamp

E – Halogen bulbs: release the fastening clip from the corresponding seat to remove the lamp

Bulb Type Power Figure
Main beam headlight H1 55W D
Dipped beam headlight H7 55W D
Front sidelight/daylight W21/5W 5/21W A
Front direction indicators WY21W 21W B
Side direction indicators W5W 5W A
Rear direction indicators PY21W 21 B
Rear sidelight R10W 10W B
Stop P21W 21W B
Reverse gear P21W 21W B
Rear fog lights P21W 21W B
Ceiling light C5W 5W C
Boot light W5W 5W A
Number plate lights C5W 5W C
Fog lights H1 55W E
Supplementary stop light (3rd stop) W5W 5W A

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
